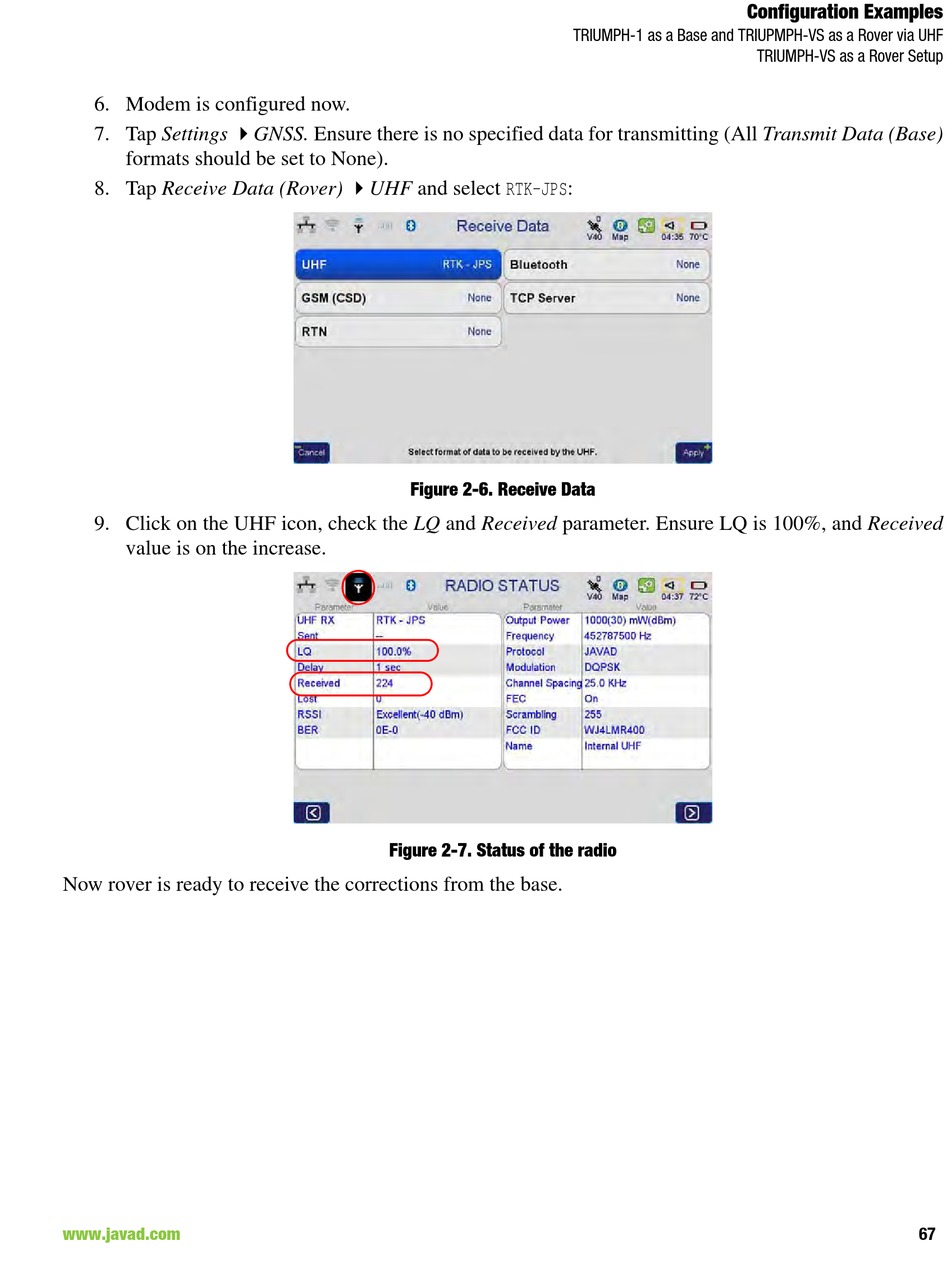

6. Modem is configured now.
7. Tap Settings GNSS. Ensure there is no specified data for transmitting (All Transmit Data (Base)
formats should be set to None).
8. Tap Receive Data (Rover) UHF and select RTK-JPS:
9. Click on the UHF icon, check the LQ and Received parameter. Ensure LQ is 100%, and Received
value is on the increase.
Now rover is ready to receive the corrections from the base.
www.javad.com
Figure 2-6. Receive Data
Figure 2-7. Status of the radio
Configuration Examples
TRIUMPH-1 as a Base and TRIUPMPH-VS as a Rover via UHF
TRIUMPH-VS as a Rover Setup
