2. Connector Specifications
Power Connector
Power connector (Figure 1) is a sealed receptacle, 5 pin, ODU p/n G80F1C-T05QF00-0000.
Table 6 gives power connector specifications.
Serial RS-232C Connector
Rimmed in green, the RS232 connectors (Figure 2) are sealed receptacle, 7 pin, ODU p/n G80F1C-
T07QC00-0000.
Table 7 gives the RS-232C cable connector specifications.
86
3

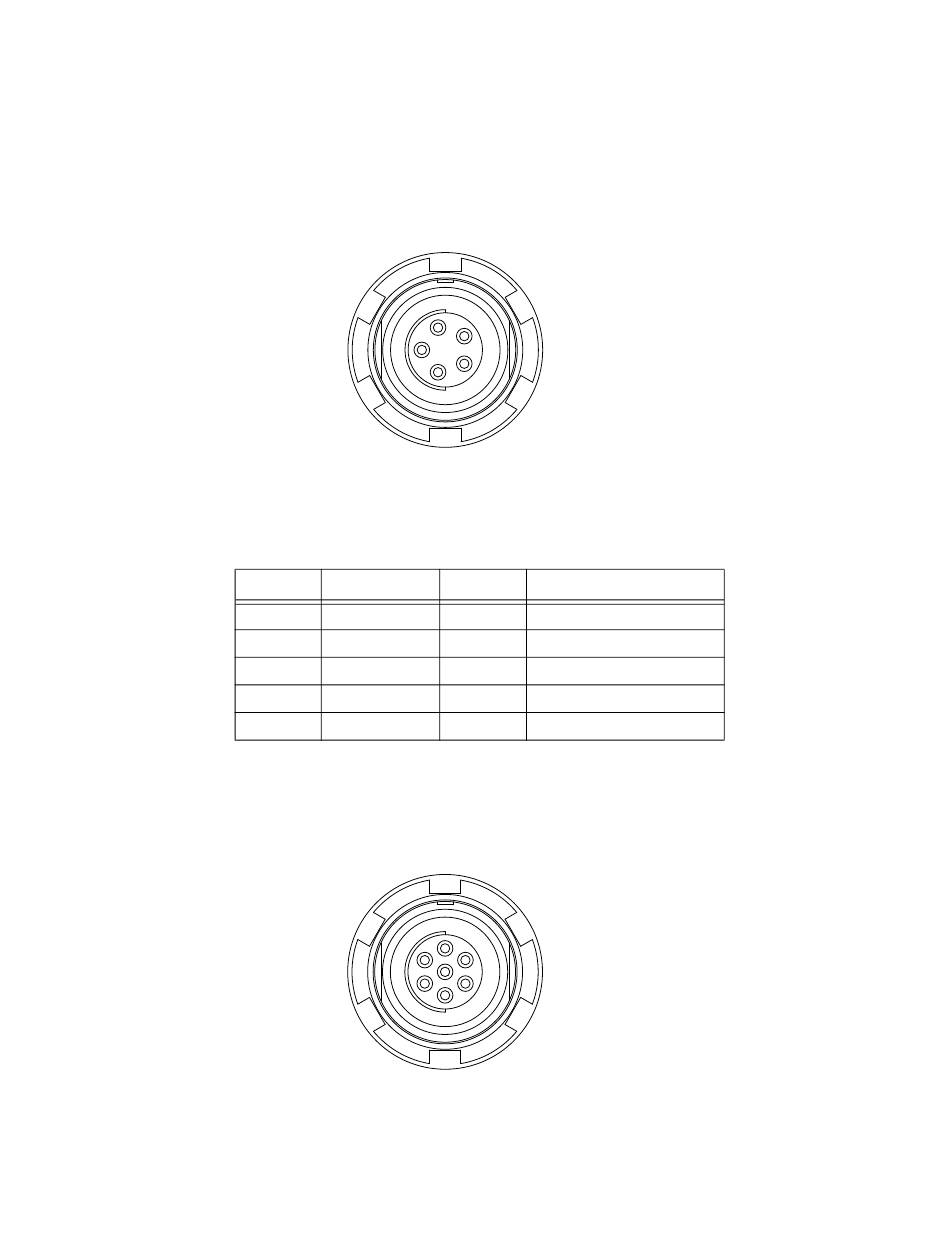

Figure 1. Power Connector
Table 6. Power Connector Specifications
Number Signal Name
1 Power_INP
2 Power_INP
3 Power_GND
4 Power_GND
5
4
Figure 2. RS-232C Connector
2
1
4
5
Dir Details
P 10 to 30 volts DC input
P 10 to 30 volts DC input
P Ground, power return
P Ground, power return
Not used
2
3
7
1
6
5
