Configuration Examples
TRIUMPH-1 as a Base and TRIUPMPH-VS as a Rover via UHF
TRIUMPH-1 as a Base Setup
• Channel Spacing for Simplex Protocol: 25000.

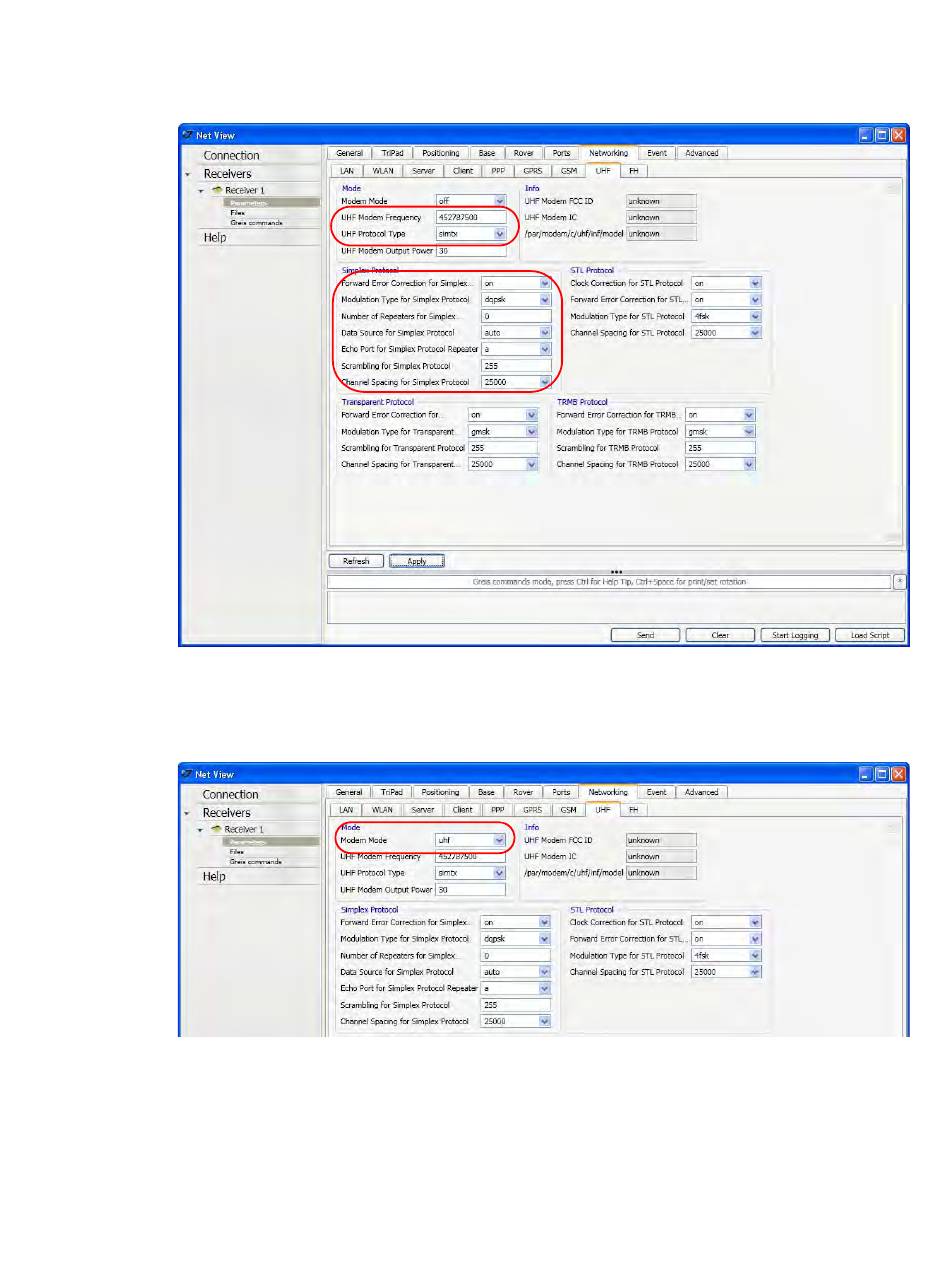

Figure 3. UHF radio parameters setup
7. Set the Modem Mode to uhf and click Apply. The UHF modem will be turned on.
Note:
The Modem Mode should be set to uhf last of all other UHF parameters.
Figure 4. Modem Mode - uhf
www.javad.com
61
