Processor (CPU)
Installing the heat sink

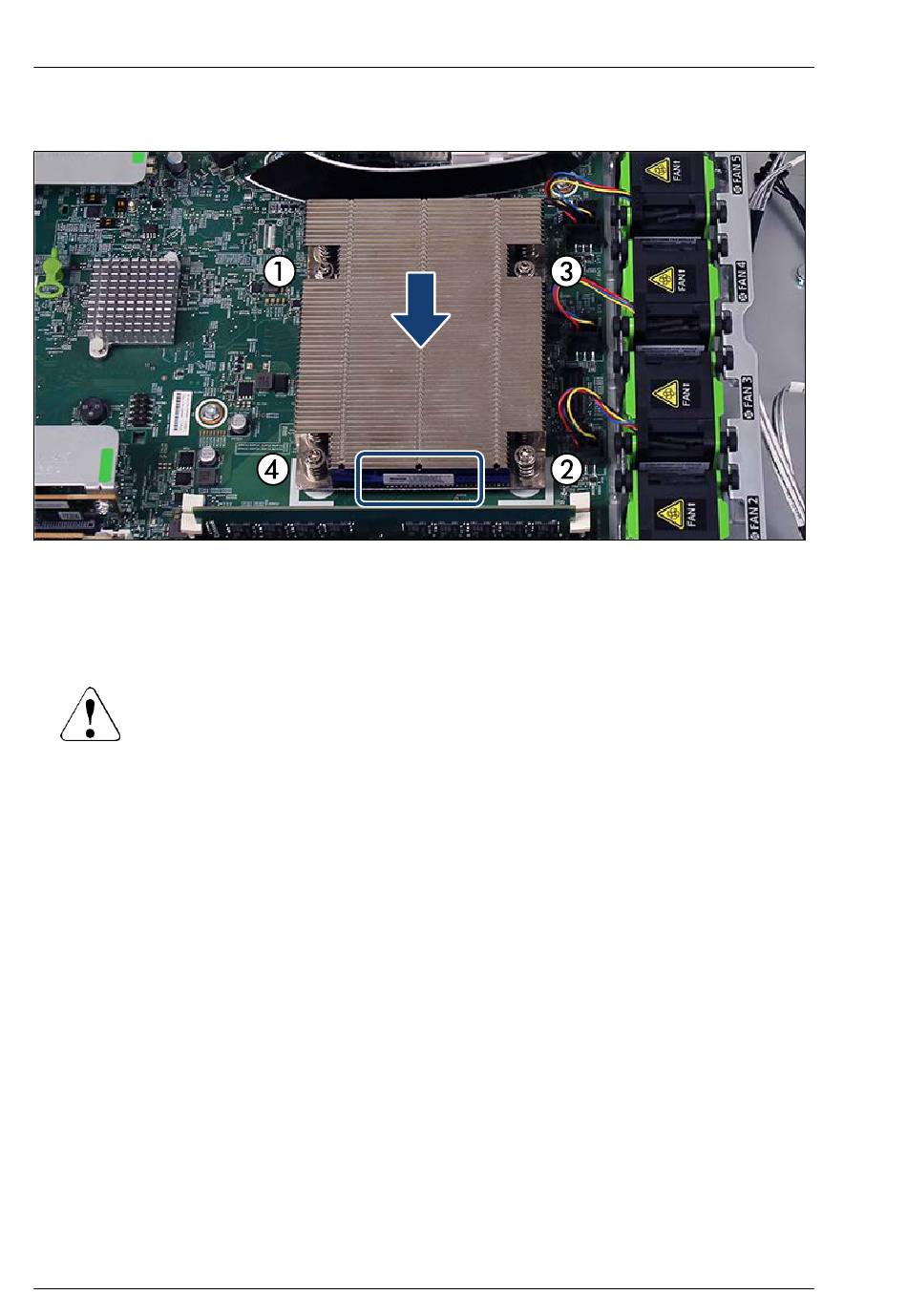

Figure 182: Installing the heat sink
▶ Ensure that the heat sink cooling fins match the direction of the airflow!
▶ Carefully seat the heat sink on the four threaded holes as shown.
CAUTION
▶
Ensure that the screws on the heat sink are properly seated on
the threaded holes.
▶ Fasten it in a crossover pattern with four screws according to the numbering
(torque: 0.6 Nm, not applicable for Japan).
▶ Notice the position of the air flow label.
Concluding steps
▶
"Installing the air duct" on page
▶
"Reassembling" on page
▶
"Connecting the power cord" on page
▶
"Switching on the server" on page
▶ If applicable,
"Installing the front cover with lock" on page
