Hard disk drive (HDD) / solid state disk (SSD)

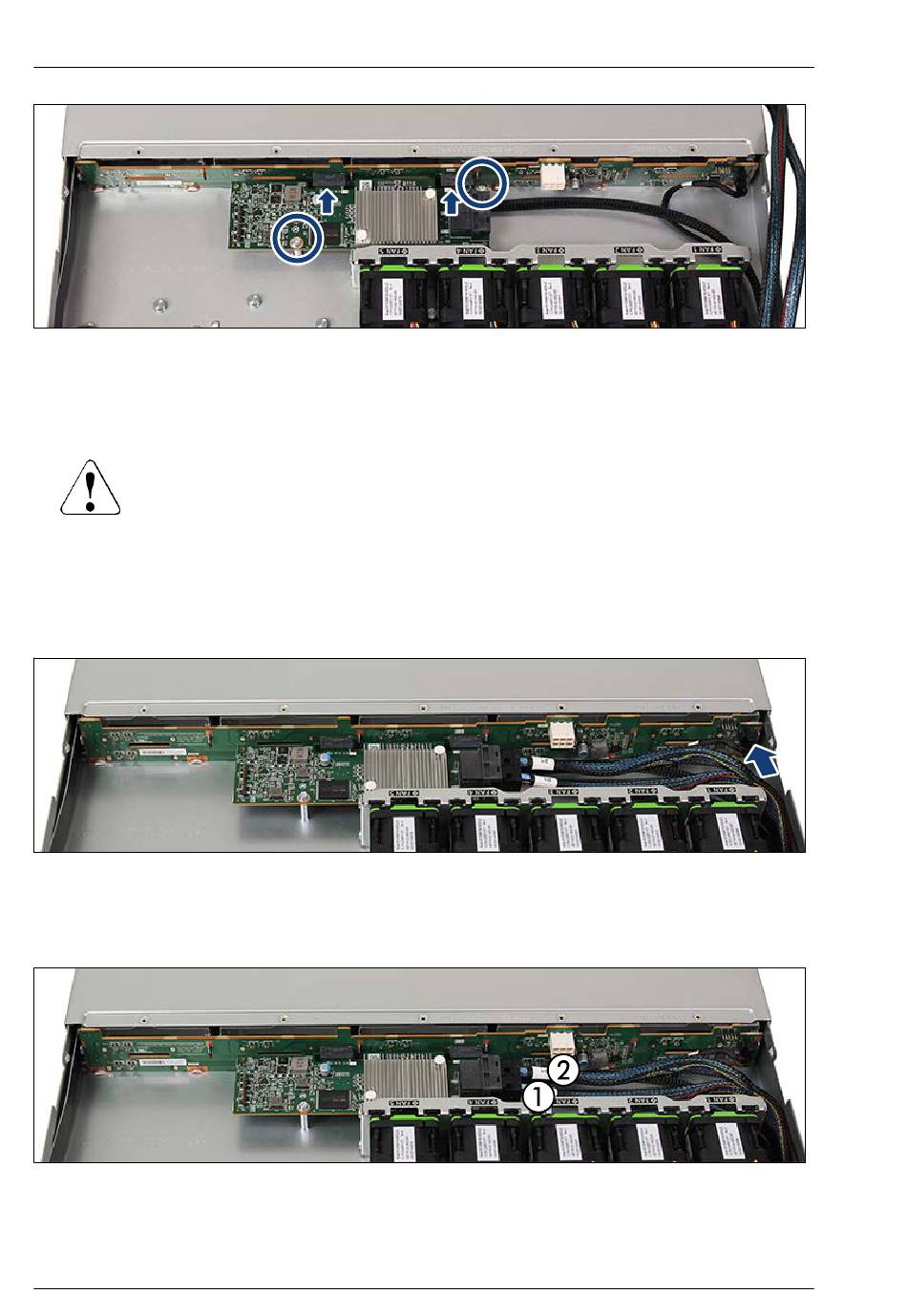

Figure 101: Installing the SAS expander board
▶ Insert the SAS expander board into the two connectors of the HDD
backplane.
CAUTION
▶
Lift up the SAS expander board while inserting it in order to
prevent the components to be damaged by the stand-offs of the
chassis.
▶ Fasten the SAS expander board with two screws (see circles).
Figure 102: Connecting the OOB cable
▶ Connect the OBB cable to the HDD backplane.
Figure 103: Connecting the cables to the SAS expander board
