C O N F I G U R A T I O N
2
LGG100-GG Configuration
Once connected, start PCView and click on Configuration->Receiver
2.
(Figure 2-4).
The Receiver Configuration dialog box displays (Figure 2-5).
Click the MinPad tab, configure the following settings, and click Apply
3.
(Figure 2-6 on page 31).
• Set the Recording interval in seconds.
• Set the Elevation mask for Log file in degrees.
• Enter the File name prefix.
30 LGG100-GG Operator's Manual

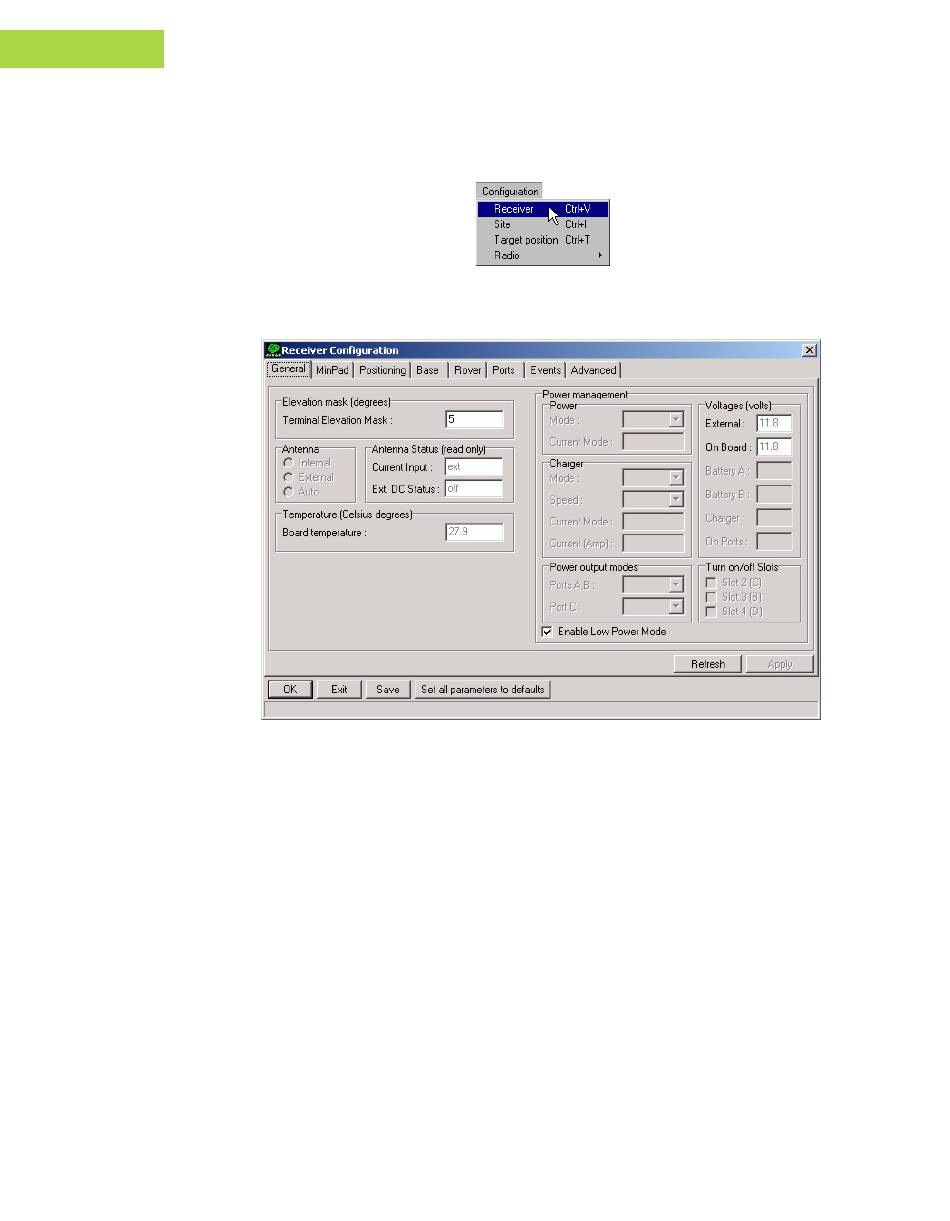

Figure 2-4. Configuration->Receiver
Figure 2-5. Receiver Configuration
