C O N F I G U R A T I O N
2
MinPad Configuration
On the Connection Parameters dialog box, enable RTS/CTS handshaking
3.
(Figure 2-11) and then click Connect.
Click Configuration->Receiver (Figure 2-12).
4.
Click the MinPad tab, set the following parameters and click Apply
5.
(Figure 2-13 on page 2-13). See the following pages for descriptions of
these parameters.
• Recording interval on page 2-13
• Elevation mask for log file on page 2-13
• File name prefix on page 2-13
• Always append to the file on page 2-14
• Files Creation mode on page 2-14
• Automatic File Rotation Mode (AFRM) on page 2-14
• FN key mode on page 2-15
2-12 JNSGyro-4T Operator's Manual

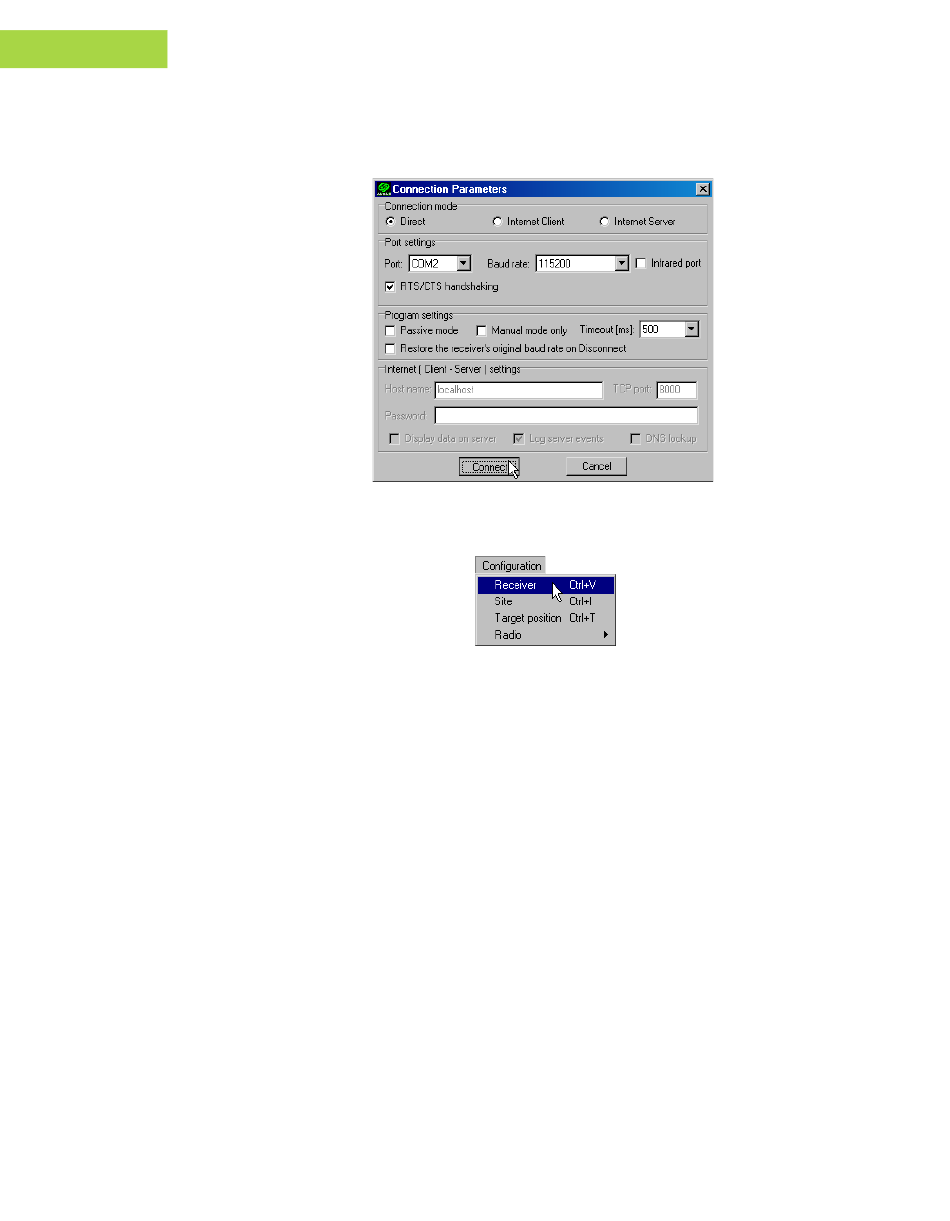

Figure 2-11. Connection Parameters – RTS/CTS Handshaking
Figure 2-12. Configuration->Receiver
