6

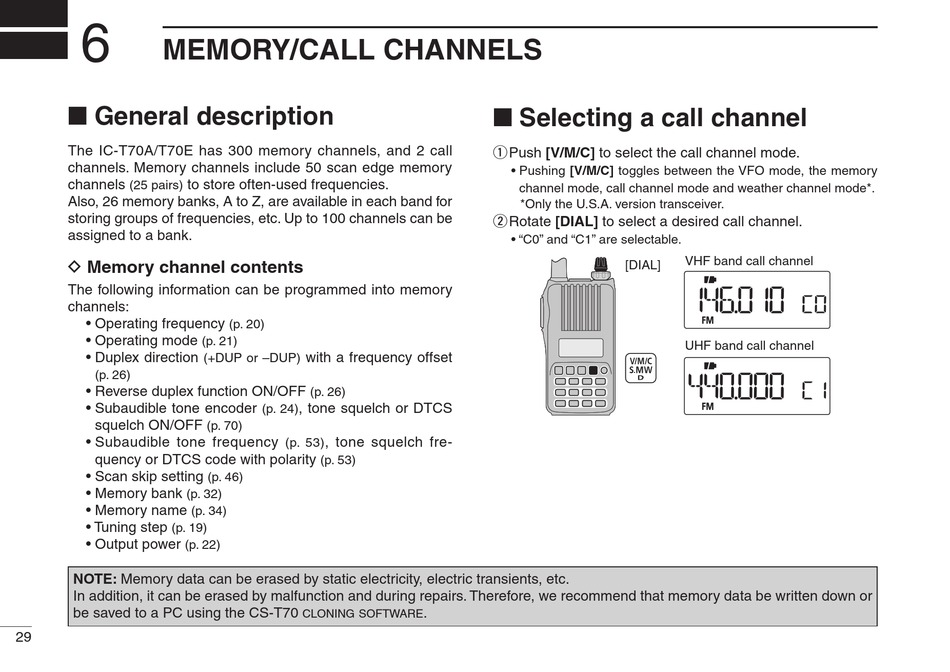

MEMORY/CALL CHANNELS

■ General description

The IC-T70A/T70E has 300 memory channels, and 2 call
channels. Memory channels include 50 scan edge memory
channels to store often-used frequencies.
(25 pairs)
Also, 26 memory banks, A to Z, are available in each band for
storing groups of frequencies, etc. Up to 100 channels can be
assigned to a bank.

D Memory channel contents

The following information can be programmed into memory
channels:
• Operating frequency
• Operating mode
• Duplex direction
(p. 26)
• Reverse duplex function ON/OFF
• Subaudible tone encoder
squelch ON/OFF
• Subaudible tone frequency
quency or DTCS code with polarity
• Scan skip setting
• Memory bank
(p. 32)
• Memory name
(p. 34)
• Tuning step
(p. 19)
• Output power
(p. 22)
NOTE: Memory data can be erased by static electricity, electric transients, etc.
In addition, it can be erased by malfunction and during repairs. Therefore, we recommend that memory data be written down or
be saved to a PC using the CS-T70
29
(p. 20)
(p. 21)
with a frequency offset
(+DUP or –DUP)
(p. 26)
, tone squelch or DTCS
(p. 24)
(p. 70)
, tone squelch fre-
(p. 53)
(p. 53)
(p. 46)
cloning software

■ Selecting a call channel

q Push [V/M/C] to select the call channel mode.
• Pushing [V/M/C] toggles between the VFO mode, the memory
channel mode, call channel mode and weather channel mode*.
* Only the U.S.A. version transceiver.
w Rotate [DIAL] to select a desired call channel.
• "C0" and "C1" are selectable.
.
VHF band call channel
[DIAL]
UHF band call channel
