Electrical Connection At The Jib - Manitowoc Grove TMS800E Service And Maintenance Manual

BOOM
The designation 10 m (33 ft) section, 7 m (23 ft)
section, and 5 m (16 ft) section have been adjusted
to these lengths.The total length of the individual

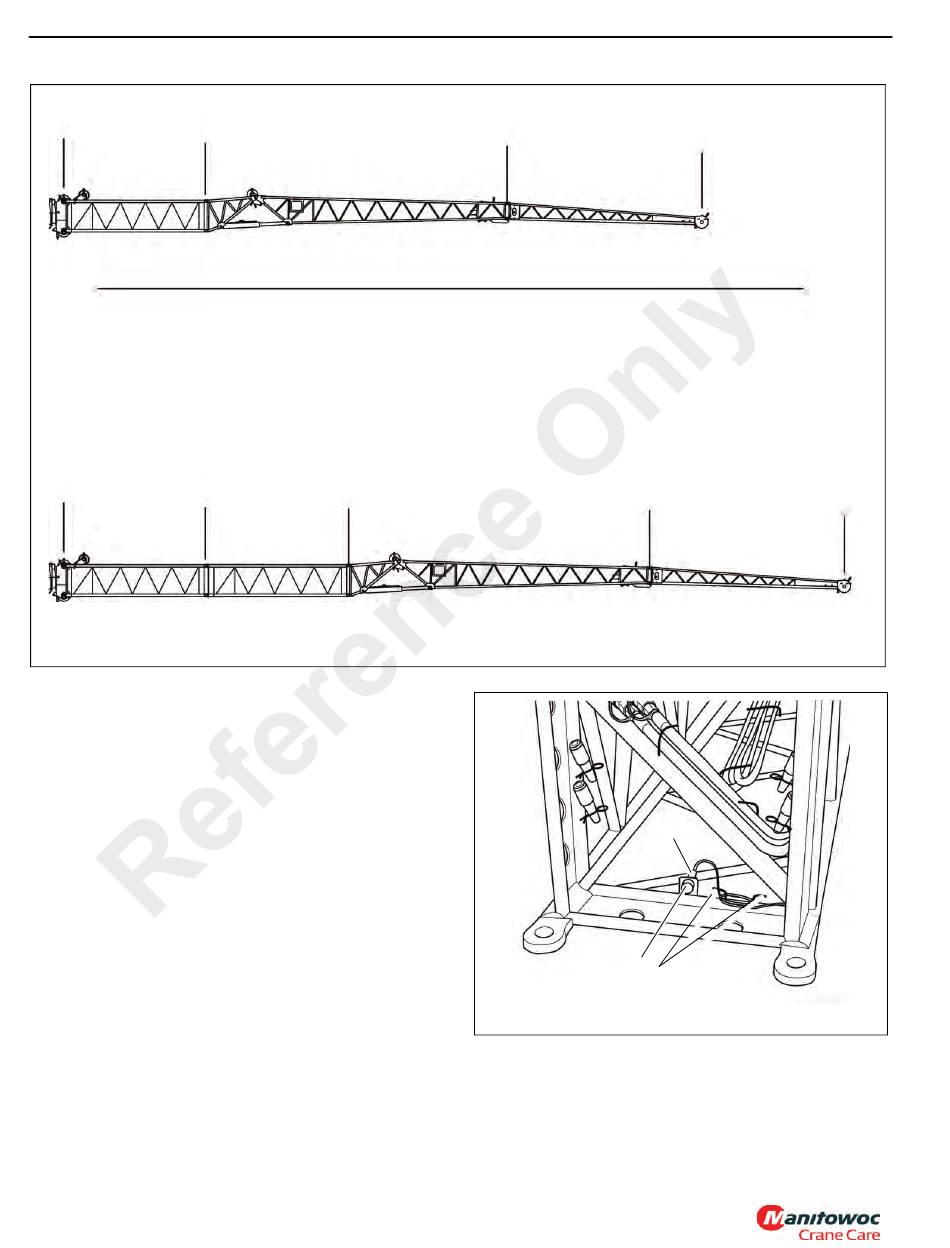

sections is greater or smaller. (See FIGURE 4-55.)

Electrical Connection at the Jib

The following describes the electrical connections at the 5 m
(16 ft) sections. Establish the electrical connection at the bi-
fold swin gaway la tt ic e e xte ns ion pe r th e follo wing
procedures
Transport Condition of the Connection
For transport, bring the electrical connections always into the
following condition.
There is a cable with a plug (3) at the rear of the 5 m (16 ft)
sections Figure 4-56.
For transport, the cable is wound around the holders (1) and
the plug is inserted in the dummy socket (2).
