Getting Started
Product Exploded Diagram
Product Exploded Diagram

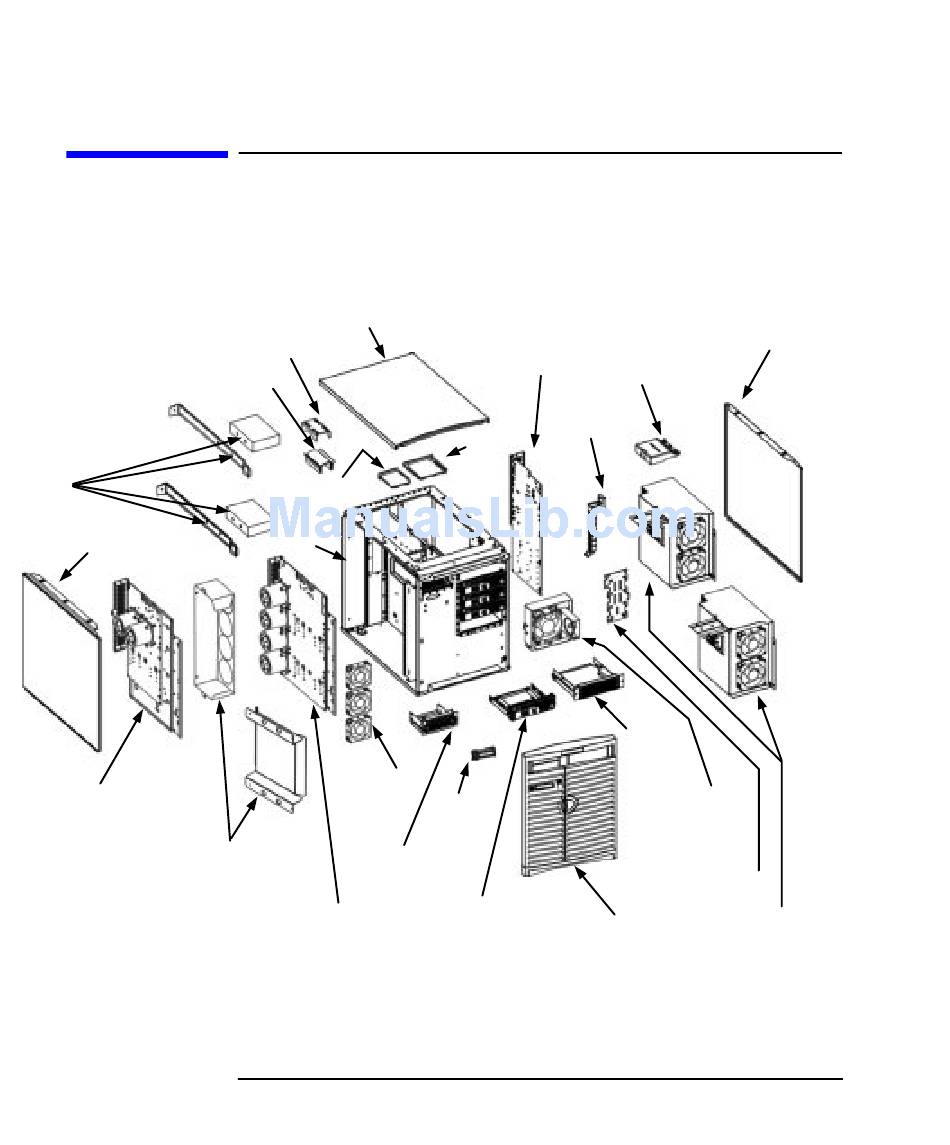

Refer to the figure below for a basic parts overview of the J5000/J7000
workstation.
Top panel
Flex cable
retainer
Flex cable
DDS-3/floppy
EMI cover
Chassis
System board
cooling fans
DDS-3/floppy
drive carrier
J7000 system board
tray assembly
12
I/O board
PCI
retainer
CD
clip
EMI
cover
Power
switch/LCD
Hard disk
Front bezel
drive carrier
Right side panel
Bus bar shield
CD drive
carrier
I/O cooling fan
and speaker
SCA hard
disk interface
Power supply for
J7000 (top) and
J5000 (bottom)
