3.5.- DEVICE TERMINALS
3�5�1�- MODELS CVM-E3-MINI-ITF AND CVM-E3-MINI-MC
A1
A2
3�5�2�- MODEL CVM-E3-MINI-FLEX
14
10
11
12
13

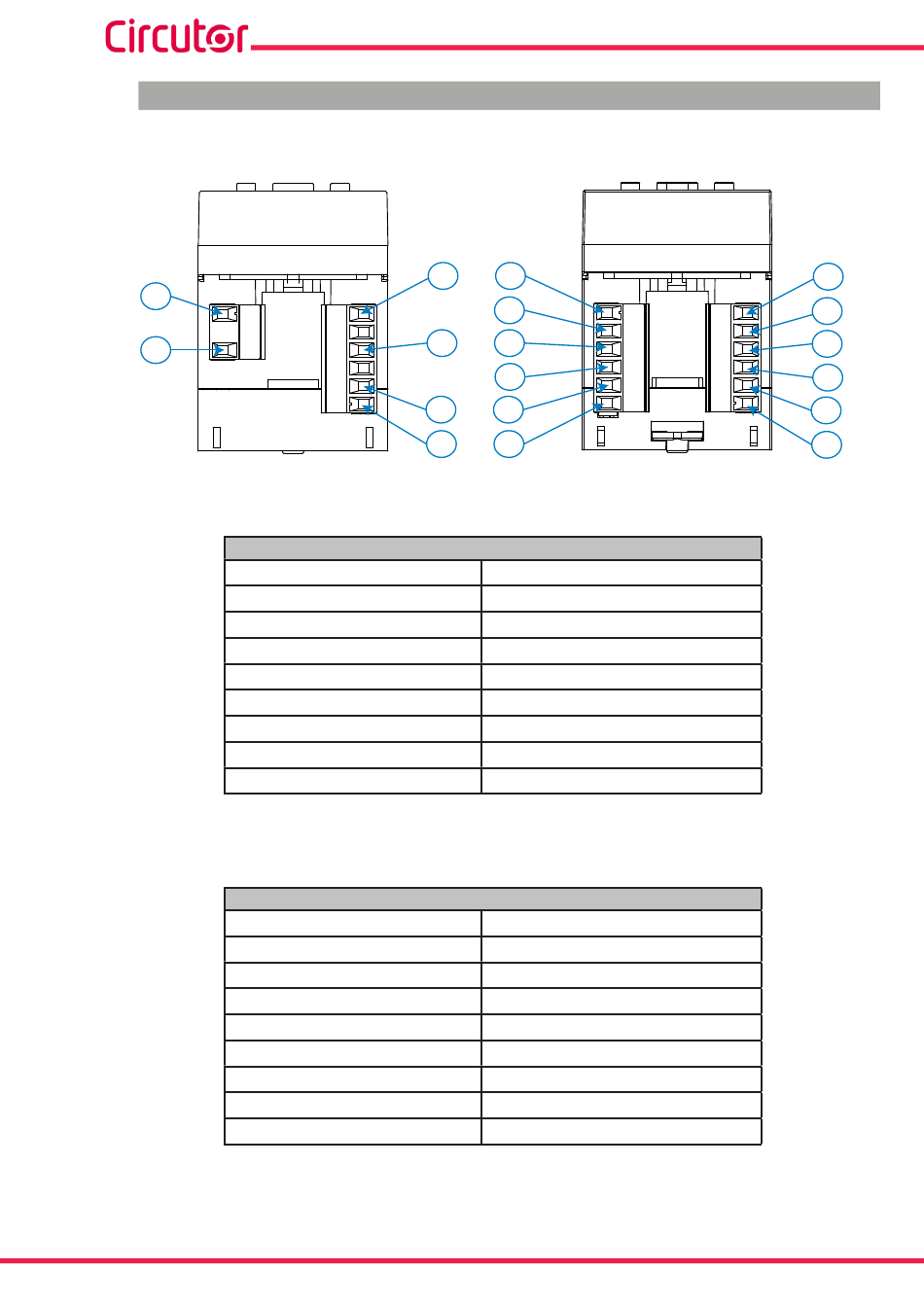

Figure 4: CVM-E3-MINI-ITF / -MC / -FLEX terminals: Up - Down
Table 7: Device terminals: CVM-E3-MINI-ITF and CVM-E3-MINI-MC
A1: ~ +, Power supply
A2: ~ -, Power supply
10: VL1, voltage input L1
11: VL2, voltage input L2
12: VL3, voltage input L3
13: N, Neutral voltage input
1: S1, current input L1
2: S2, current input L1
3: S1, current input L2
Table 8: Device terminals: CVM-E3-MINI-FLEX
A1: ~ +, Power supply
A2: ~ -, Power supply
10: VL1, voltage input L1
11: VL2, voltage input L2
12: VL3, voltage input L3
13: N, Neutral voltage input
1: L1, current input L1
2: L2, current input L2
3: L3, current input L3
10
1
2
3
11
4
12 5
13 6
Device terminals
4: S2, current input L2
5: S1, current input L3
6: S2, current input L3
A: A+, RS-485
B: B-, RS-485
S: S, GND for RS-485 and digital inputs
9: I1, Digital input 1 or selection rate
8: O1, Digital output 1
7: CO, Common digital outputs
Device terminals
4: Without connecting
5: C, Common current input
6: SHLD, GND for current inputs
A: A+, RS-485
B: B-, RS-485
S: S, GND for RS-485 and digital inputs
9: I1, Digital input 1 or selection rate
8: O1, Digital output 1
7: CO, Common digital outputs
CVM-E3-MINI
1
A
2
B
3
S
4
9
5
8
6
7
Instruction Manual
A
B
S
9
8
7
