CVM-E3-MINI
When the desired value is shown on the screen, use the
cursor.
Maximum programming value: 500 ms.
Minimum programming value: 30 ms.
To validate the value, press the
If the value entered by the user is out of the range of programming values, the programmed
value will be deleted and the system will restore it to the last saved value.
Press key to access the next programming step.

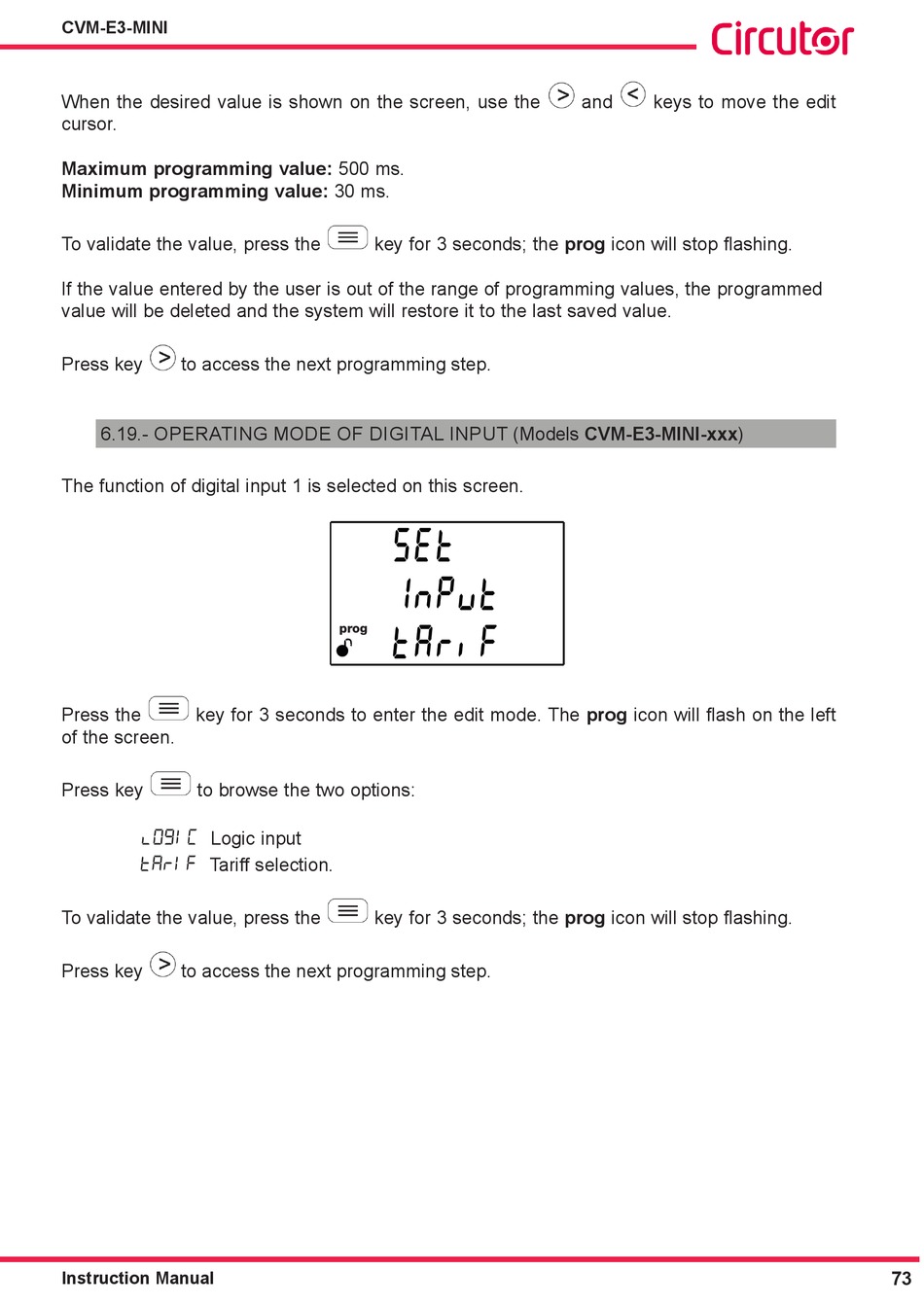

6.19.- OPERATING MODE OF DIGITAL INPUT (Models CVM-E3-MINI-xxx)
The function of digital input 1 is selected on this screen.
key for 3 seconds to enter the edit mode. The prog icon will flash on the left
Press the
of the screen.
Press key to browse the two options:
lOGIC Logic input
tARIF Tariff selection.
To validate the value, press the
Press key to access the next programming step.
Instruction Manual
key for 3 seconds; the prog icon will stop flashing.
key for 3 seconds; the prog icon will stop flashing.
and keys to move the edit
73
