CVM-E3-MINI

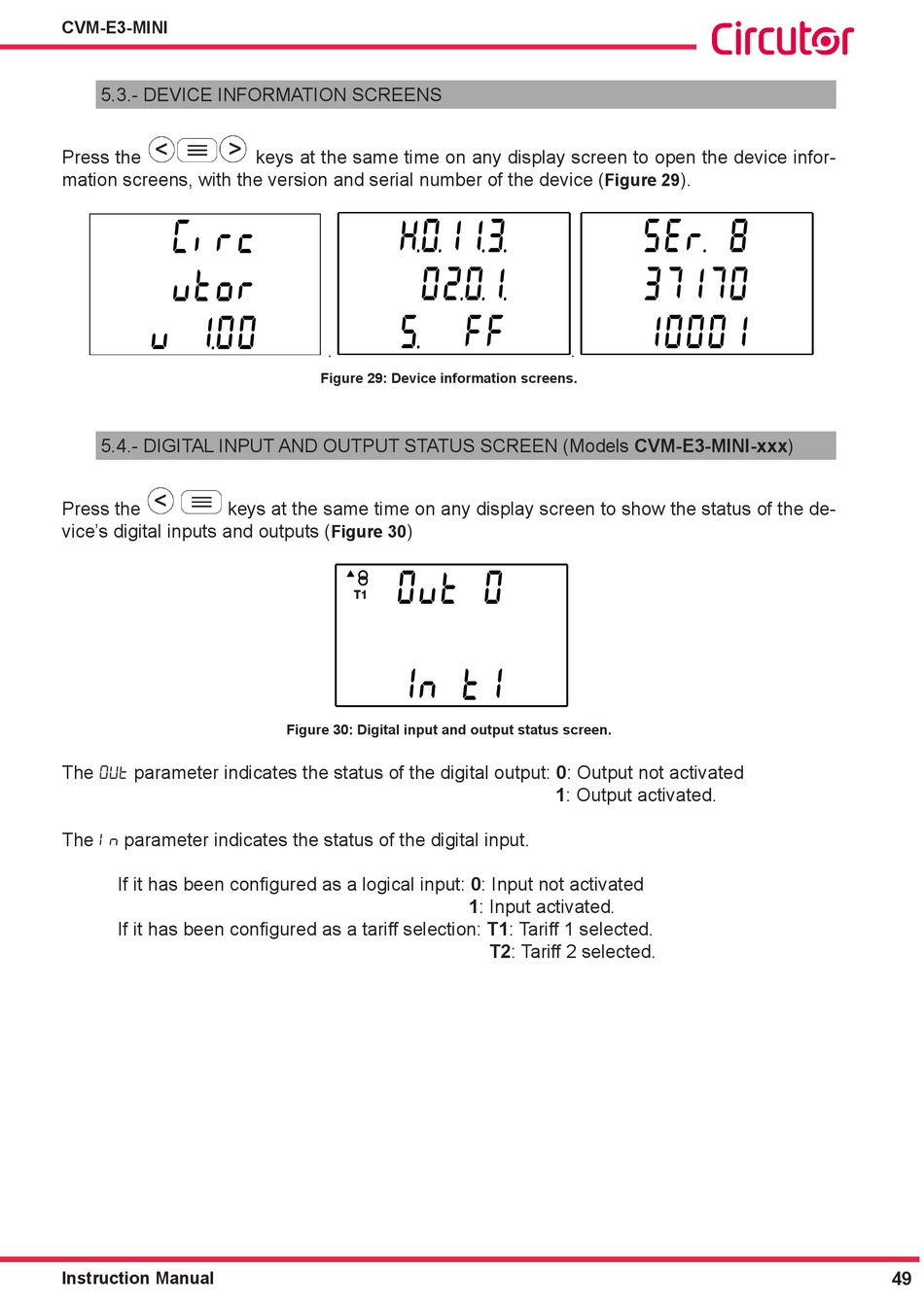

5.3.- DEVICE INFORMATION SCREENS
Press the
mation screens, with the version and serial number of the device (
5.4.- DIGITAL INPUT AND OUTPUT STATUS SCREEN (Models CVM-E3-MINI-xxx)
Press the keys at the same time on any display screen to show the status of the de-
vice's digital inputs and outputs (
The Out parameter indicates the status of the digital output: 0: Output not activated
The In parameter indicates the status of the digital input.
If it has been configured as a logical input: 0: Input not activated
If it has been configured as a tariff selection: T1: Tariff 1 selected.
Instruction Manual
keys at the same time on any display screen to open the device infor-
.
Figure 29: Device information screens�
)
Figure 30
Figure 30: Digital input and output status screen�
Figure 29
.
1: Output activated.
1: Input activated.
T2: Tariff 2 selected.
).
49
