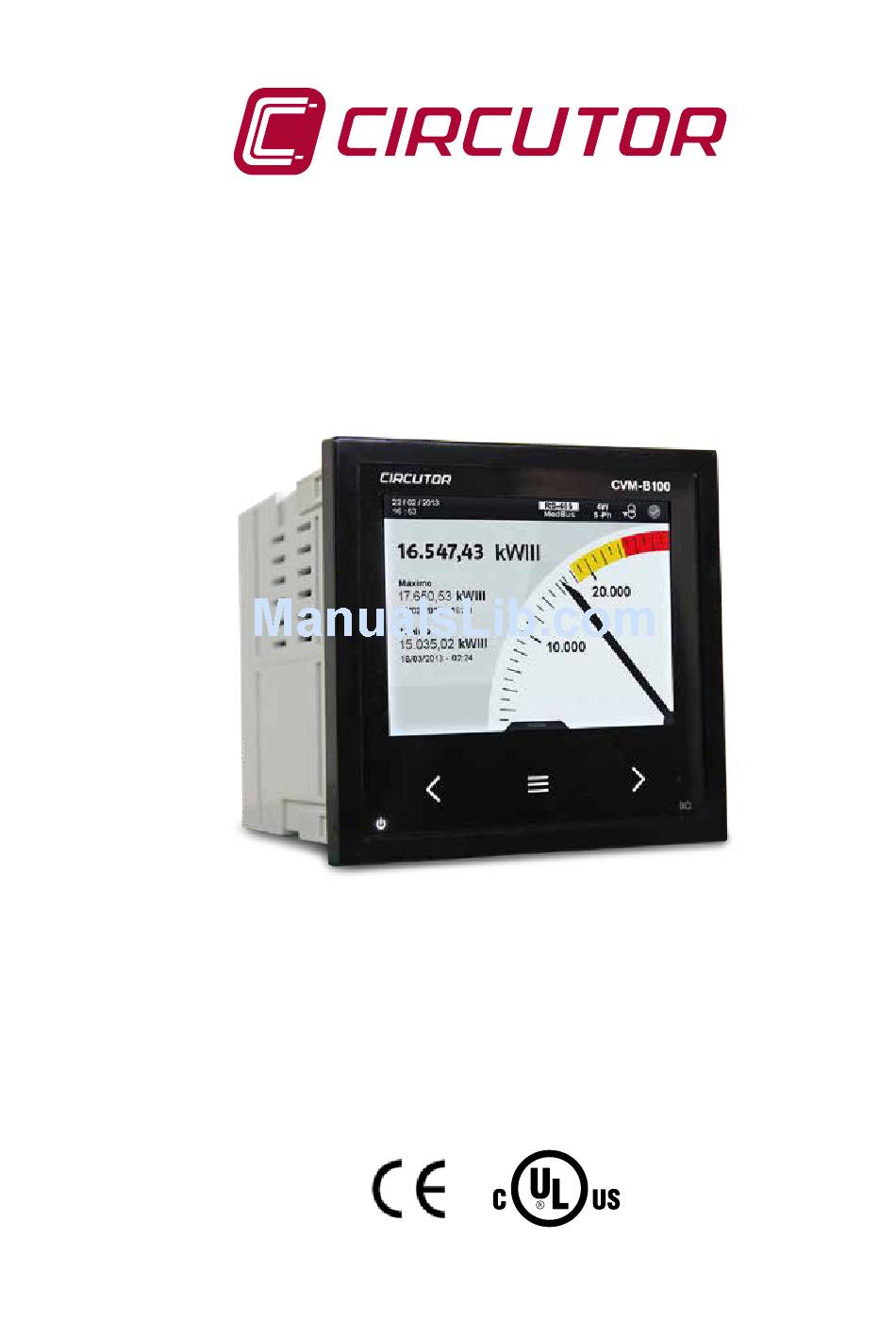

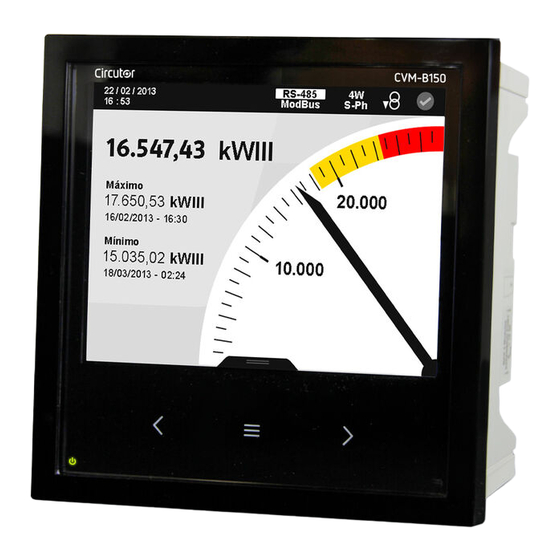

Page 1 Power analyzer CVM-B100 CVM-B150 INSTRUCTION MANUAL (M010B01-03-16C)
Page 2 CVM-B100 - CVM-B150 Instruction Manual...
Page 3: Safety Precautions
CIRCUTOR, SA reserves the right to modify features or the product manual without prior notifi cation. DISCLAIMeR CIRCUTOR, SA reserves the right to make modifi cations to the device or the unit specifi ca- tions set out in this instruction manual without prior notice.
Page 4: Table Of Contents
CVM-B100 - CVM-B150 CONTeNTS SAfeTy PReCAUTIONS �� 3 DISCLAIMeR ��3 CONTeNTS ��4 ReVISION LOg ��7 1�- VeRIfICATION UPON ReCePTION �� 8 2�- PRODUCT DeSCRIPTION �� 8 3�- UNIT INSTALLATION �� 10 3�1�- PRIOR ReCOMMeNDATIONS�� 10 3�2�- INSTALLATION �� 11 3�3�- UNIT TeRMINALS �� 12 3�3�1�- TeRMINALS ON The UPPeR fACe ��...
Page 5 CVM-B100 - CVM-B150 5�6�1�- DATe AND TIMe� �� 126 5�6�2�- TIMe zONe� �� 127 5�6�3�- LANgUAge� �� 128 5�6�4�- ACCeSS key�� 129 5�6�5�- MeASUReMeNT CONNeCTION MODe� �� 130 5�6�6�- RATIO Of VOLTAge TRANSfORMeRS� �� 131 5�6�7�- RATIO Of CURReNT TRANSfORMeRS� �� 133 5�6�8�-...
Page 6 CVM-B100 - CVM-B150 7�6�1�- CONNeCTION TeRMINALS �� 268 7�6�2�- CONNeCTION DIAgRAM �� 268 7�6�3�- CONfIgURATION �� 269 7�6�4�- MODBUS COMMUNICATIONS �� 271 7�6�5�- LIST Of LONwORkS LOgS �� 272 7�7�- PROfIBUS COMMUNICATIONS MODULe�� 280 7�7�1�- CONNeCTION TeRMINALS �� 280 7�7�2�- LeDs �� 280 7�7�3�- CONNeCTION DIAgRAM ��...
Page 7: Revision Log
CVM-B100 - CVM-B150 ReVISION LOg Table 1: Revision log� Date Revision Description 06/14 M010B01-03-14A Initial Version Introduction of expansion modules: M-CVM-AB-Modbus TCP (Bridge), M-CVM-AB-LON M-CVM-AB-Profibus 05/15 M010B01-03-15A M-CVM-AB-MBus M-CVM-AB-Datalogger Changes in the following sections: 3.5. - 4.4.1.- 5.1. - 5.3. - 5.4.- 5.5.3.3. - 5.6.- 6.3. - 6.4. - 7.5.4. - 7.5.5. - 7.8.
Page 8: 1�- Verification Upon Reception
MC1 and MC3 series. It is a modular unit that can be expanded using expansion modules with different functions. There are 2 unit models:  CVM-B100, with a 3.5’’ display.  CVM-B150, with a 5.6’’ display. The unit features: - 3 keys that allow you to browse between the various screens and program the unit.
Page 9 CVM-B100 - CVM-B150 - 2 digital inputs, to select the tariff, detect the logic state of external signals or as act as an impulse input. - 2 transistor digital outputs, fully programmable. - 2 relay digital outputs, fully programmable. - RS-485 communications, with two serial protocols: MODBUS RTU ® and BACnet.
Page 10: 3�- Unit Installation
CVM-B100 - CVM-B150 3�- UNIT INSTALLATION 3.1.- PRIOR RECOMMENDATIONS In order to use the unit safely, it is critical that individuals who handle it follow the safety measures set out in the standards of the country where it is being used, use the necessary personal protective equipment, and pay attention to the vari- ous warnings indicated in this instruction manual.
Page 11: 3�2�- Installation
CVM-B100 - CVM-B150 3.2.- INSTALLATION The unit is installed on a panel. All connections are located inside the electric panel. Table 2: Panel drill holes for installation� Model Panel drill hole (according to DIN 43700) CVM-B100 x 92 +0.8 +0.8...
Page 12: 3�3�- Unit Terminals
CVM-B100 - CVM-B150 3.3.- UNIT TERMINALS The CVM-B terminals are distributed between the upper and lower face of the unit. 3�3�1�- TeRMINALS ON The UPPeR fACe Table 3:List of terminals on the upper face of the CVM-B� Terminals of the top side of the unit...
Page 13: 3�3�2�- Terminals On The Lower Face
CVM-B100 - CVM-B150 3�3�2�- TeRMINALS ON The LOweR fACe Table 4:List of terminals on the lower face of the CVM-B� Unit terminals 20 : Auxiliary power supply. , CVM-Bxxx-ITf 25: S2, Current input L2 , CVM-Bxxx-ITf-SDC 21: Auxiliary power supply.
Page 14: 3�4�- Connection Diagrams
CVM-B100 - CVM-B150 3.4.- CONNECTION DIAGRAMS 3�4�1�- ThRee-PhASe NeTwORk MeASUReMeNT wITh A 4-wIRe CONNeCTION� Measurement system: Secondary winding of the current transformer: (MC1 type transformer) Secondary winding of the neutral current transformer: P2 P1 POWER SUPPLY S1 S2 S1 S2 S1 S2...
Page 15 CVM-B100 - CVM-B150 Measurement system: Secondary winding of the current transformer: (MC3 type transformer) Secondary winding of the neutral current transformer: P2 P1 POWER SUPPLY S1 S2 S1 S2 S1 S2 S1 S2 Power Supply LOAD figure 4: Three-phase measuring with a 4-wire connection (MC3 type transformer (/0�250))�...
Page 16: 3�4�2�- Three-Phase Network Measurement With A 3-Wire Connection
CVM-B100 - CVM-B150 3�4�2�- ThRee-PhASe NeTwORk MeASUReMeNT wITh A 3-wIRe CONNeCTION� Measurement system: Secondary winding of the current transformer: (MC1 type transformer) P2 P1 POWER SUPPLY S1 S2 S1 S2 S1 S2 S1 S2 Power Supply P2 S1 P2 S1 LOAD figure 5: Three-phase measuring with a 3-wire connection (transformer secondary: /1A, /5A or MC1 (/0�250))�...
Page 17 CVM-B100 - CVM-B150 Measurement system: Secondary winding of the current transformer: (MC3 type transformer) P2 P1 POWER SUPPLY S1 S2 S2 S1 S2 S1 S2 Power Supply LOAD figure 6: Three-phase measuring with a 3-wire connection (MC3 type transformer (/0�250))�...
Page 18: 3�4�3�- Three-Phase Network Measurement With A 3-Wire Connection And Transfor
CVM-B100 - CVM-B150 3�4�3�- ThRee-PhASe NeTwORk MeASUReMeNT wITh A 3-wIRe CONNeCTION AND TRANSfORMeRS wITh AN ARON CONNeCTION� Measurement system: Secondary winding of the current transformer: (MC1 type transformer) P2P1 POWER SUPPLY S1 S2 S1 S2 S1 S2 S1 S2 Power...
Page 19: 3�4�4�- Two-Phase Network Measurement With A 3-Wire Connection
CVM-B100 - CVM-B150 3�4�4�- TwO-PhASe NeTwORk MeASUReMeNT wITh A 3-wIRe CONNeCTION� Measurement system: Secondary winding of the current transformer: (MC1 type transformer) Secondary winding of the neutral current transformer: P2 P1 POWER SUPPLY S1 S2 S1 S2 S1 S2 S1 S2...
Page 20: 3�4�5�- Single-Phase Network Measurement, Phase To Phase, With A 2-Wire Connec
CVM-B100 - CVM-B150 3�4�5�- SINgLe-PhASe NeTwORk MeASUReMeNT, PhASe TO PhASe, wITh A 2-wIRe CONNeCTION� Measurement system: Secondary winding of the current transformer: (MC1 type transformer) P2 P1 POWER SUPPLY S1 S2 S1 S2 S1 S2 S1 S2 Power Supply LOAD figure 9: Phase to phase single-phase measuring with a 2-wire connection (transformer secondary: /1A, /5A or MC1 (/0�250))�...
Page 21: 3�4�6�- Single-Phase Network Measurement, Phase To Neutral, With A 2-Wire Connec
CVM-B100 - CVM-B150 3�4�6�- SINgLe-PhASe NeTwORk MeASUReMeNT, PhASe TO NeUTRAL, wITh A 2-wIRe CONNeCTION� Measurement system: Secondary winding of the current transformer: (MC1 type transformer) P2 P1 POWER SUPPLY S1 S2 S1 S2 S1 S2 S1 S2 Power Supply LOAD figure 10: Phase to neutral single-phase measuring with a 2-wire connection (transformer secondary: /1A, /5A or MC1 (/0�250))�...
Page 22: 3�5�- Starting Up The Unit
CVM-B100 - CVM-B150 3.5.- STARTING UP THE UNIT Once the CVM-B is connected to the power supply, the following screen, , appears on figure 11 the display and checks the integrity of the unit and detects the expansion modules. figure 11: Initial check screen of the CVM-B�...
Page 23 CVM-B100 - CVM-B150 If this is the first time the unit is switched on, the screen in appears to select the figure 13 language. figure 13: Language selection screen� The following options appear in the lower area: the possible languages of the unit: Spanish, Catalan, English, German, French, Norwegian, Chinese and Korean.
Page 24 CVM-B100 - CVM-B150 The digit selected is indicated in white. The following options appear in the lower area: the ten possible digits to program. Previous, selects the previous digit � Next, selects the next digit � Confirm date and time, confirms and saves in the memory the value programmed on the screen �...
Page 25 CVM-B100 - CVM-B150 Next, selects the next parameter � Use the keys to select the different options; once selected, confirm by choosing the option and pressing the key The screen shown in will then be displayed for a few seconds, figure 16 figure 16: Start-up screen, CVM-B�...
Page 26: 4�- Operation
CVM-B100 - CVM-B150 4�- OPeRATION 4.1.- OPERATING PRINCIPLE The CVM-B is a four-quadrant power analyzer (consumption and generation). Single-phase Single-phase Three-phase Three-phase 90º Inductive Capacitive 180º 0º Inductive Capacitive Single-phase Three-phase Single-phase Three-phase -90º Generation Consumption Power Power figure 18: four quadrants of CVM-B�...
Page 27: 4�2�- Measurement Parameters
CVM-B100 - CVM-B150 4.2.- MEASUREMENT PARAMETERS The unit displays the electrical parameters shown in Table 5 Table 5: CVM-Bx measurement parameters� Phases Total Parameter Units L1-L2-L3 Phase-neutral voltage Vph-N    Phase-phase voltage Vph-ph   Current  ...
Page 28: 4�3�- Keypad Functions
CVM-B100 - CVM-B150 Table 5 ( Continuation ): CVM-Bx measurement parameters� Phases Total Parameter Units L1-L2-L3 Maximum Apparent Power Demand, Tariff 1   Maximum Current Demand, Tariff 2   Maximum Active Power Demand, Tariff 2   Maximum Apparent Power Demand, Tariff 2 ...
Page 29: 4�4�- Display
CVM-B100 - CVM-B150 4.4.- DISPLAY The unit has a colour TFT display which displays all the parameters indicated in Table 5. The display is divided into three areas ( figure 19 Upper area 20 / 09 / 2014 RS-485 ModBus...
Page 30 CVM-B100 - CVM-B150  Type of communications The CVM-B units have one RS-485 communications port. The unit has as standard two communications protocols: MODBUS RTU ® and BACnet. “6.- INTEGRATED COMMUNICATIONS” Depending on the protocol selected you will view: MODBUS RTU protocol.
Page 31: 4�4�2�- Lower Area
CVM-B100 - CVM-B150 4�4�2�- LOweR AReA figure 21: Lower area of display� The various options on the display and setup menus and an explanatory text for the option se- lected are shown in the lower area. On the display screens the lower area disappears after 3 seconds without pressing any key.
Page 32 CVM-B100 - CVM-B150 If an alarm has not been programmed for the parameter, the pre-alarm and alarm zones shown in the bar chart are calculated. figure 23: Calculation of the bar chart� The calculation formulas are:  Neutral-phase voltage and neutral voltage L = Primary rated voltage* 0.9...
Page 33 CVM-B100 - CVM-B150  frequency 60 hz L = 55 h = 65 Min = L * 0.95 Max = h * 1.05 = L + (( h - L) * 0.25) = h - (( h - L) * 0.25) ...
Page 34: 4�5�- Led Indicators
CVM-B100 - CVM-B150 4.5.- LED INDICATORS The CVM-B unit features: - A CPU LED, which indicates that the unit is working correctly with a 1 second flashing. A flashing of 0.5 seconds indicates that an error has occurred. - An ALARM LED, which indicates that an alarm has been activated with the LED flash- ing.
Page 35: 4�6�- Inputs
CVM-B100 - CVM-B150 4.6.- INPUTS The CVM-B has two programmable digital inputs (terminals 7 and 8 in ) for working as: figure 1  Logic input.  Impulse input.  Tariff selection. to configure the inputs. “5.6.17.- Digital inputs.” and in you can see the status and “5.1.7.- Integrated functions.”...
Page 36: 5�- Display And Configuration
CVM-B100 - CVM-B150 5�- DISPLAy AND CONfIgURATION On the main screen, , you can access the various menus of the unit: figure 25 figure 25:Main screen� Measurement display menu, see “5.1.-MEASUREMENT DISPLAY MENU ” Energy closes menu, see “5�2�- eNeRgy CLOSeS MeNU ”...
Page 37: 5�1�-Measurement Display Menu
CVM-B100 - CVM-B150 5.1.-MEASUREMENT DISPLAY MENU The screen in is the home screen for the measurement display menu. figure 26 figure 26: Main screen of the measurement display menu� The display options appear in the lower area: Display 1 parameter.
Page 38: Display 1 Parameter
CVM-B100 - CVM-B150 5�1�1�- DISPLAy 1 PARAMeTeR� By selecting this option, you want to view a single parameter on the display. figure 27: 1 parameter display screen� The following options appear in the lower area: Default parameters. Customise parameters. Back, returns to the home screen of the measurement display menu,...
Page 39 CVM-B100 - CVM-B150 5�1�1�1�- Default parameters� This menu allows you to view the following types of parameters: figure 28:Default parameters display screen (display 1 parameter)� Instantaneous parameters. Incremental parameters. Demand parameters. Back, returns to the home screen of the 1 parameter display menu, figure 27�...
Page 40 CVM-B100 - CVM-B150 5�1�1�1�1�- Instantaneous parameters� On this screen, you can view all the parameters indicated in figure 29, Tabla 8 figure 29: Instantaneous parameters (display 1 parameter)� For each of the instantaneous parameters you can view:  The maximum and minimum value, with the date and time when it occurred.
Page 41 CVM-B100 - CVM-B150 Table 8 ( Continuation) : Instantaneous parameters� Display 1 parameter Icon Instantaneous parameters Total reactive power Apparent power Power factor Cosine phi III Voltage THD Current THD The following icons appear for all these parameters on the screen: Indicating that the parameter refers to inductive or capacitive energy.
Page 42 CVM-B100 - CVM-B150 figure 30: Instantaneous parameters without lower area (display 1 parameter)� Press the key to display the lower area again. The following icons also appear in the lower area: Back, returns to the default parameters display screen, figure 28�...
Page 43 CVM-B100 - CVM-B150 Graphic view. (“5.1.1.1.1.1.1.Graphic view.” Analog view. ( “5.1.1.1.1.1.2. Analog view.” Display of 3 parameters, moves to the 3 parameters display screen. “5.1.2.- Display 3 parameters.” Display of 4 parameters, moves to the 4 parameters display screen. “5.1.3.- Display 4 parameters.”) Back, returns to the instantaneous parameters display screen, figure 29.
Page 44 CVM-B100 - CVM-B150 5�1�1�1�1�1�2�- Analog view� The analogue display screen is shown in figure 33 figure 33:Instantaneous parameters, analog view(display 1 parameter)� The menu in the lower area disappears after 3 seconds. Press the key to display the lower area again.
Page 45 CVM-B100 - CVM-B150 5�1�1�1�2�- Incremental parameters� On this screen, , you can view all the parameters indicated in figure 34 Tabla 9 For each of the incremental parameters you can view:  The value generated and consumed, The value for each tariff, T1, T2 and T3 and the total value of the 3 tariffs.
Page 46 CVM-B100 - CVM-B150 figure 35: graphical representation of the energy increase� Note: This representation is not real, it is only significant to give the user an idea of the energy increase. The following icons appear for all these parameters on the screen: Indicating that the parameter refers to consumed or generated energy.
Page 47 CVM-B100 - CVM-B150 5�1�1�1�2�1�- Incremental parameters display menu� For each incremental parameter, this menu enables the following ( figure 36 figure 36: Incremental parameters, display menu (display 1 parameter)� Display the generation or consumption value of the selected parameter. Note: The option selected is not displayed on the menu.
Page 48 CVM-B100 - CVM-B150 5�1�1�1�2�1�1�- Tariff selection� The screen for selecting the tariff to be displayed is shown in figure 37 figure 37:Incremental parameters, tariff selection (display 1 parameter)� The menu in the lower area disappears after 3 seconds. Press the key to display the lower area again.
Page 49 CVM-B100 - CVM-B150 5�1�1�1�2�1�2�- graphic view The graphical representation of the energy closes is shown for all the incremental energy parameters, figure 38 figure 38:Incremental parameters, graphic view (displays 1 parameter)� The menu in the lower area disappears after 3 seconds.
Page 50 CVM-B100 - CVM-B150 5�1�1�1�3�- Demand parameters� On this screen, , you can view all the maximum demand parameters indicated in figure 39 Tabla 10 For each of the demand parameters you can view:  Graphical representation of the parameter.  The analogue representation of the parameter.
Page 51 CVM-B100 - CVM-B150 The associated output in the module. The alarm status: not activated, pre-alarm activated, alarm activated. icon flashes during the delay time in the alarm connection (ON) and disconnection (OFF). The menu in the lower area disappears after 3 seconds.
Page 52 CVM-B100 - CVM-B150 5�1�1�1�3�1�1�- graphic view� shows the graphical display screen. figure 41 figure 41:Demand parameters, graphic view (displays 1 parameter)� The menu in the lower area disappears after 3 seconds. Press the key to display the lower area again.
Page 53 CVM-B100 - CVM-B150 5�1�1�1�3�1�2�- Analogue view� The analogue display screen is shown in figure 42 figure 42:Demand parameters, analog view (display 1 parameter)� The menu in the lower area disappears after 3 seconds. Press the key to display the lower area again.
Page 54 CVM-B100 - CVM-B150 5�1�1�1�3�1�3�- Tariff selection� The screen for selecting the tariff to be displayed is shown in figure 43 figure 43: Demand parameters, tariff selection (display 1 parameter)� The menu in the lower area disappears after 3 seconds. Press the key to display the lower area again.
Page 55 CVM-B100 - CVM-B150 5�1�1�2�- Customise parameters On this screen, figure 44, you can view the five custom screens with 1 parameter. figure 44: Custom parameters screen (display 1 parameter)� The menu in the lower area disappears after 3 seconds. Press the key to display the lower area again.
Page 56 CVM-B100 - CVM-B150 5�1�1�2�1�- Customisation screens shows the screen used to customise 1 parameter. figure 45 These screens can also be configured for communications. “6.- INTEGRATED COMMUNICATIONS”. figure 45: Custom parameters screen (displays 1 parameter)� The menu in the lower area disappears after 3 seconds.
Page 57 CVM-B100 - CVM-B150 5�1�1�2�1�1�- Parameter selection shows the screen for selecting the parameter for display. figure 46 figure 46: Custom parameters screen, parameter selection (displays 1 parameter)� The menu in the lower area disappears after 3 seconds. Press the key to display the lower area again.
Page 58 CVM-B100 - CVM-B150 5�1�1�2�1�1�1�- Selecting an instantaneous parameter� shows the screen for selecting the Instantaneous parameters. figure 47 figure 47: Custom parameters screen, selecting an instantaneous parameter (displays 1 parameter)� The menu in the lower area disappears after 3 seconds.
Page 59 CVM-B100 - CVM-B150 To select a parameter, press the button to open the menu at the bottom for selecting the phase: ● For the Neutral-Phase and parameters: Voltage Phase L1, Phase L2, Phase L3, Three-phase, Neutral. ● For the Phase-Phase Voltage parameter:...
Page 60 CVM-B100 - CVM-B150 5�1�1�2�1�1�2�- Selecting an incremental parameter� shows the screen for selecting an incremental parameter. figure 48 figure 48: Custom parameters screen, selecting an incremental parameter (displays 1 parameter)� The menu in the lower area disappears after 3 seconds.
Page 61 CVM-B100 - CVM-B150 ● For the Active tariff time, CO emissions and Cost parameters: Phase L1. The tariff must be selected after selecting the phase: Tariff 1, Tariff 2, Tariff 3, Total tariff. And to select the consumption or generation value: Consumption, Generation.
Page 62 CVM-B100 - CVM-B150 Press the key to display the lower area again. The menu at the bottom displays all the available demand parameters ( Table 13 Table 13: Demand parameters that can be selected on the customisation screens� Customisation screen...
Page 63: 5�1�2�- Display 3 Parameters
CVM-B100 - CVM-B150 5�1�2�- DISPLAy 3 PARAMeTeRS� By selecting this option, you can view the three parameters at the same time on the display. figure 50: 3 parameter display screen� The following options appear in the lower area: Default parameters.
Page 64 CVM-B100 - CVM-B150 5�1�2�1�- Default parameters� This menu allows you to view the following types of parameters: figure 51:Default parameters display screen (display 3 parameters)� Instantaneous parameters. Incremental parameters. Demand parameters. Back, returns to the home screen of the 3 parameter display menu, figure 50.
Page 65 CVM-B100 - CVM-B150 5�1�2�1�1�- Instantaneous parameters� On this screen, you can view all the parameters indicated in figure 52, Table 14� figure 52: Instantaneous parameters (display 3 parameters)� For each of the instantaneous parameters you can view:  The maximum and minimum value, with the date and time when it occurred.
Page 66 CVM-B100 - CVM-B150 Table 14 ( Continuation) : Instantaneous parameters (display 3 parameters)� Display 3 parameters Icon Instantaneous parameters Capacitive reactive power L1 Capacitive reactive power L2 Capacitive reactive power L3 Total reactive power L1 Total reactive power L2 Total reactive power L3...
Page 67 CVM-B100 - CVM-B150 5�1�2�1�1�1�- Instantaneous parameters display menu� For each instantaneous parameter, this menu allows ( figure 53 figure 53: Instantaneous parameters, display menu (displays 3 parameters)� Graphic view.( “5.1.2.1.1.1.1. Graphic view.”) Back, returns to the instantaneous parameters display screen, figure 52.
Page 68 CVM-B100 - CVM-B150 The menu in the lower area disappears after 3 seconds. Press the key to display the lower area again. The lower area menu options are: Selecting the graph display time ( X-axis ). The time can be set to 20, 60 or 300 seconds Note: The option selected is not displayed on the menu.
Page 69 CVM-B100 - CVM-B150 Table 15: Instantaneous parameters (display 3 parameters)� Display 3 parameters Icon Incremental parameters Active energy L1 (1) (2) Active energy L2 (1) (2) Active energy L3 (1) (2) Inductive reactive energy L1 (1) (2) Inductive reactive energy L2...
Page 70 CVM-B100 - CVM-B150 5�1�2�1�2�1�- Incremental parameters display menu� For each incremental parameter, this menu enables the following ( figure 56 figure 56: Incremental parameters, display menu (display 3 parameters)� Display the generation or consumption value of the selected parameter. Note: The option selected is not displayed on the menu.
Page 71 CVM-B100 - CVM-B150 5�1�2�1�2�1�1�- Tariff selection� The screen for selecting the tariff to be displayed is shown in figure 57 figure 57:Incremental parameters, tariff selection (display 3 parameters)� The menu in the lower area disappears after 3 seconds. Press the key to display the lower area again.
Page 72 CVM-B100 - CVM-B150 5�1�2�1�2�1�2�- graphic view� The graphical representation of the energy closes is shown for all the incremental energy parameters, figure 58 figure 58:Incremental parameters, graphic view (displays 3 parameters)� The menu in the lower area disappears after 3 seconds.
Page 73 CVM-B100 - CVM-B150 5�1�2�1�3�- Demand parameters� On this screen, , you can view all the maximum demand parameters indicated in figure 59 Table 16 For each of the demand parameters you can view: The value for each tariff, T1, T2 and T3.
Page 74 CVM-B100 - CVM-B150 The following icons also appear in the active power maximum demand parameters: Indicating that the parameter refers to inductive or capacitive energy. Use the keys to browse the various parameters. If there is an alarm associated with the variable being displayed, the following will be shown: The module with which the alarm is associated.
Page 75 CVM-B100 - CVM-B150 Graphic view .(“ 5.1.2.1.3.1.1. Graphic view” Tariff selection (“5.1.2.1.3.1.2. Tariff selection.”) Back, returns to the demand parameters display screen, figure 59. Main Menu, back to the main menu, figure 25 5�1�2�1�3�1�1�- graphic view� shows the graphical display screen.
Page 76 CVM-B100 - CVM-B150 5�1�2�1�3�1�2�- Tariff selection� The screen for selecting the tariff to be displayed is shown in figure 62 figure 62:Demand parameters, tariff selection (display 3 parameters)� The menu in the lower area disappears after a few seconds. Press the key to display the lower area again.
Page 77 CVM-B100 - CVM-B150 5�1�2�2�- Customise parameters On this screen, , you can view the five custom screens with 3 parameters. figure 63 figure 63: Custom parameters screen (display 3 parameter)� The menu in the lower area disappears after 3 seconds.
Page 78 CVM-B100 - CVM-B150 5�1�2�2�1�- Customisation screens shows the screen used to customise 3 parameters. figure 64 These screens can also be configured for communications. See “6.- INTEGRATED COMMUNICATIONS” figure 64: Custom parameters screen (displays 3 parameter)� The menu in the lower area disappears after 3 seconds.
Page 79: 5�1�3�- Display 4 Parameters
CVM-B100 - CVM-B150 5�1�3�- DISPLAy 4 PARAMeTeRS� By selecting this option, you can view the four parameters at the same time on the display. figure 65: 4 parameter display screen� The following options appear in the lower area: Default parameters.
Page 80 CVM-B100 - CVM-B150 5�1�3�1�- Default parameters� This menu allows you to view the following types of parameters: figure 66:Default parameters display screen (display 4 parameters)� Instantaneous parameters. Incremental parameters. Demand parameters. Back, returns to the home screen of the 3 parameter display menu, figure 65�...
Page 81 CVM-B100 - CVM-B150 5�1�3�1�1�- Instantaneous parameters� On this screen, you can view all the parameters indicated in figure 67, Table 17 figure 67: Instantaneous parameters (display 4 parameters)� For each of the instantaneous parameters you can view:  The maximum and minimum value, with the date and time when it occurred.
Page 82 CVM-B100 - CVM-B150 Table 17 ( Continuation) :Instantaneous parameters (display 4 parameters)� Display 4 parameters Icon Instantaneous parameters Active power L1 Active power L2 Active power L3 Active power III Inductive reactive power L1 Inductive reactive power L2 Inductive reactive power L3...
Page 83 CVM-B100 - CVM-B150 If there is an alarm associated with the variable being displayed, the following will be shown: The module with which the alarm is associated. The associated output in the module. The alarm status: not activated, pre-alarm activated, alarm activated.
Page 84 CVM-B100 - CVM-B150 5�1�3�1�1�1�1�- graphic view� shows the graphical display screen . figure 69 figure 69: Instantaneous parameters, graphical representation (displays 4 parameters)� The menu in the lower area disappears after a few seconds. Press the key to display the lower area again.
Page 85 CVM-B100 - CVM-B150 5�1�3�1�2�- Incremental parameters� On this screen, , you can view all the parameters indicated in figure 70 Table 18 For each of the incremental parameters you can view:  The value generated and consumed. The value for each tariff, T1, T2 and T3 and the total value of the 3 tariffs.
Page 86 CVM-B100 - CVM-B150 Table 18 ( Continuation): Incremental parameters (display 4 parameters)� Display 4 parameters Icon Incremental parameters Active tariff hours Active tariff CO emissions Cost of active tariff The following icons appear for all these parameters on the screen: Indicating that the parameter refers to consumed or generated energy.
Page 87 CVM-B100 - CVM-B150 5�1�3�1�2�1�- Incremental parameters display menu� For each incremental parameter, this menu enables the following ( figure 71 figure 71: Incremental parameters, display menu (display 4 parameters)� Display the generation or consumption value of the selected parameter. Note: The option selected is not displayed on the menu.
Page 88 CVM-B100 - CVM-B150 5�1�3�1�2�1�1�- Tariff selection� The screen for selecting the tariff to be displayed is shown in figure 72 figure 72:Incremental parameters, tariff selection (display 4 parameters)� The menu in the lower area disappears after a few seconds. Press the key to display the lower area again.
Page 89 CVM-B100 - CVM-B150 5�1�3�1�2�1�2�- graphic view� The graphical representation of the energy closes is shown for all the incremental energy parameters, figure 73 figure 73: Incremental parameters, graphic view (displays 4 parameters)� The menu in the lower area disappears after a few seconds.
Page 90 CVM-B100 - CVM-B150 5�1�3�1�3�- Demand parameters� On this screen, , you can view all the maximum demand parameters indicated in figure 74 Table 19. For each of the demand parameters you can view: The value for each tariff, T1, T2 and T3.
Page 91 CVM-B100 - CVM-B150 Use the keys to browse the various parameters. If there is an alarm associated with the variable being displayed, the following will be shown: The module with which the alarm is associated. The associated output in the module.
Page 92 CVM-B100 - CVM-B150 Back, returns to the demand parameters display screen, figure 74. Main Menu, back to the main menu, figure 25 Use the keys to browse the different options. To access the option selected press the key 5�1�3�1�3�1�1�- graphic view�...
Page 93 CVM-B100 - CVM-B150 5�1�3�1�3�1�2�- Tariff selection� The screen for selecting the tariff to be displayed is shown in figure 77 figure 77:Demand parameters, tariff selection (display 4 parameters)� The menu in the lower area disappears after a few seconds. Press the key to display the lower area again.
Page 94 CVM-B100 - CVM-B150 5�1�3�2�- Customise parameters On this screen, , you can view the five custom screens with 4 parameters. figure 78 figure 78: Custom parameters screen (display 4 parameter)� The menu in the lower area disappears after 3 seconds.
Page 95 CVM-B100 - CVM-B150 5�1�3�2�1�- Customisation screens shows the screen used to customise 4 parameters. figure 79 These screens can also be configured for communications. See “6.- INTEGRATED COMMUNICATIONS” figure 79: Custom parameters screen (displays 4 parameter)� The menu in the lower area disappears after 3 seconds.
Page 96: 5�1�4�- Phasors
CVM-B100 - CVM-B150 5�1�4�- PhASORS� By selecting this option, you can view the phase sequence ( figure 80 figure 80: Phasor display screen� The following options appear in the lower area: Select the line of phasors that you are going to display: L1, L2 , L3 or all the phasors.
Page 97: 5�1�5�- Standard Phasors
CVM-B100 - CVM-B150 5�1�5�- STANDARD PhASORS� By selecting this option, you can view the phase sequence with the standard values figure 81 figure 81: Standardised phasor display screen� The following options appear in the lower area: Select the line of phasors that you are going to display: L1, L2 , L3 or all the phasors.
Page 98: Harmonics
CVM-B100 - CVM-B150 5�1�6�- hARMONICS� On this screen, , you can view the harmonics of the parameters indicated in figure 82 Table 20 figure 82: harmonics screen� Table 20:harmonics� Icon harmonics Current harmonics L1 Current harmonics L2 Current harmonics L3...
Page 99 CVM-B100 - CVM-B150 Select the display of the even or odd harmonics Previous, you move through the harmonics in descending order. Next, you move through the harmonics in ascending order. Table display, (see “5.1.6.1.Table display.” Back, returns to the home screen of the measurement display menu, figure 26�...
Page 100: 5�1�7�- Integrated Functions
CVM-B100 - CVM-B150 5�1�7�- INTegRATeD fUNCTIONS� On this screen, , you can view the status of the digital inputs integrated in the unit. figure 84 figure 84: Display screen of digital inputs integrated in the unit� The following options appear in the lower area: Back, returns to the home screen of the measurement display menu, figure 26�...
Page 101: Expansion Modules
CVM-B100 - CVM-B150 5�1�8�- exPANSION MODULeS� Note: This option only appears when the unit is connected to an expansion module of Transistor Digital Inputs/Outputs (M-CVM-AB-8I-8OTR), Relay Digital Inputs/Outputs (M-CVM-AB-8I-8OR) or Analogue Inputs/Outputs (M-CVM-AB-4AI-8AO). On the main screen, figure 85, of this option, select the expansion module for which you want to display the status of the inputs.
Page 102 CVM-B100 - CVM-B150 figure 86: Display screen of digital inputs of an expansion module� The following options appear in the lower area: Previous, moves up the list of alarms. Next, moves down the list of alarms. Back, returns to the expansion modules information screen, figure 85�...
Page 103: 5�2�- Energy Closes Menu
CVM-B100 - CVM-B150 5.2.- ENERGY CLOSES MENU The screen in is the home screen for the energy close menu. figure 87 figure 87: Main screen of the energy closes menu� In the information menu you can view: The active energy closes III of the total tariff.
Page 104: 5�2�1�- Active Energy Closes Iii Of The Total Tariff And Of Reactive Energy
CVM-B100 - CVM-B150 5�2�1�- ACTIVe eNeRgy CLOSeS III Of The TOTAL TARIff AND Of ReACTIVe eNeRgy III Of The TOTAL TARIff� This screen displays the graphical representation of the closes of consumed active energy III of the total tariff (the sum of the three tariffs) after selecting the option.
Page 105: 5�3�- Alarm Menu
CVM-B100 - CVM-B150 When a given close is selected the display shows: The value of the selected energy close. The difference, in %, between the most recent energy close with respect of the previous close. A green arrow indicates a lower consumption than the previous close and a red arrow indicates a higher consumption.
Page 106 CVM-B100 - CVM-B150 Use the keys to select the different options. To confirm the selection, press the key If no key is pressed for 5 minutes, the display screen changes automatically to the default screen. figure 90: Alarm menu description table�...
Page 107: 5�4�- Log Menu
CVM-B100 - CVM-B150 5.4.- LOG MENU The screen in is the home screen of the menu log, which shows the log of the alarms figure 91 and events that have occurred in the unit. figure 91: Main screen log menu�...
Page 108: 5�4�1�- Alarm Log
CVM-B100 - CVM-B150 5�4�1�- ALARM LOg This screen shows the log of the last 50 alarms occurring in the unit and installed expansion modules, including a brief description and the date and time of the last alarm activation. figure 92:Alarm log The lower area menu options are: Previous, scrolls up the alarm log.
Page 109: 5�4�2�- Event Log
CVM-B100 - CVM-B150 Example: Alarm M0_S3 act with latch M0, Indicates the module where the alarm was activated: M0, is an alarm triggered in the unit. M1 ...M4, is an alarm in the expansion module 1...4. S3, Indicates the module output that has activated the alarm.
Page 110: 5�5�- Information Menu
CVM-B100 - CVM-B150 Next, scrolls down the event log.. Back, returns to the main screen of the log menu, figure 91 Main menu, back to the main menu, figure 25 Use the keys to select the different options. To confirm the selection, press the key The event log can be deleted on the Parameter reset screen of the setup menu ( “5.6.19 Pa-...
Page 111: 5�5�1�- System Information
CVM-B100 - CVM-B150 To access the selected menu press the key If no key is pressed for 5 minutes, the display screen changes automatically to the default screen. 5�5�1�- SySTeM INfORMATION� On the system information screen, , you will view the model, serial number and figure 96 firmware version of the unit.
Page 112: 5�5�2�- Integrated Functions
CVM-B100 - CVM-B150 5�5�2�- INTegRATeD fUNCTIONS� On the integrated functions screen, , you will view the configuration of the figure 97 communications and digital inputs and outputs. figure 97: Integrated functions screen� The following options appear in the lower area: Communications, display of COM1 port communication parameters Digital inputs, display of the configuration of the digital inputs integrated in the unit.
Page 113: Expansion Modules
CVM-B100 - CVM-B150 5�5�3�- exPANSION MODULeS� On the expansion modules screen, , you will view the model, serial number and figure 98 firmware version of each of the expansion modules. figure 98: expansion modules information screen� The following options appear in the lower area: Select from the different expansion modules provided by the unit.
Page 114 CVM-B100 - CVM-B150 5�5�3�1�- expansion modules of Transistor and Relay digital inputs/outputs The screen in , is one of the information display screens for the expansion module. figure 99 figure 99: Digital inputs information screen (Transistor Digital Inputs/Outputs Module)� This screen displays the configuration of the digital inputs of the module.
Page 115 CVM-B100 - CVM-B150 figure 100: Digital outputs information screen (Transistor Digital Inputs/Outputs Module) If no key is pressed for 5 minutes, the display screen changes automatically to the default screen. 5�5�3�2�- Analogue Inputs/Outputs expansion modules The screen in , is one of the information display screens for the expansion module.
Page 116 CVM-B100 - CVM-B150 Back, returns to the expansion modules information screen, figure 98 Main Menu, back to the main menu, figure 25 Use the keys to select the different options. If no key is pressed for 5 minutes, the display screen changes automatically to the default screen.
Page 117 CVM-B100 - CVM-B150 5�5�3�3�- Modbus TCP (Bridge) communications expansion modules The screen in , is a screen that displays the information of the Modbus TCP figure 103 communications module. figure 103: Information screen of the Modbus TCP ( Bridge ) module (TCP communications)�...
Page 118 CVM-B100 - CVM-B150 figure 104: Information screen of the Modbus/TCP ( Bridge) module (RS-485 gateway)� 5�5�3�4�- Lonworks communications expansion modules The screen in display screen, is a screen that displays the information of the figure 105 LonWorks communications module. figure 105: Lonworks module information screen�...
Page 119 CVM-B100 - CVM-B150 5.5.3.5.- Profibus communications expansion modules The screen in display screen, is a screen that displays the information of the figure 106 Profibus communications module. figure 106: Profibus module information screen. This screen shows the unit's Profibus identifier.
Page 120 CVM-B100 - CVM-B150 5�5�3�6�- MBus communications expansion modules The screen in display screen, is a screen that displays the information of the MBus figure 107 communications module. figure 107: MBus module information screen� This screen shows how the M-Bus communications of the module are configured.
Page 121 CVM-B100 - CVM-B150 5�5�3�7�- Datalogger expansion modules The screen in display screen, is a screen that displays the information of the figure 108 Datalogger communications module. figure 108: Datalogger (TCP) module information screen� This screen shows how the TCP communications of the module are configured.
Page 122 CVM-B100 - CVM-B150 figure 109: Datalogger (Port) module information screen� 5�5�3�8�- Modbus TCP (Switch) communications expansion modules The screen in , is a screen that displays the information of the Modbus TCP (Switch) figure 103 communications module. figure 110: Information screen of the Modbus TCP ( Switch ) module (TCP communications)�...
Page 123: Circutor S�A
If no key is pressed for 5 minutes, the display screen changes automatically to the default screen. 5�5�4�- CIRCUTOR S�A� This screen, , shows all the Circutor contact information. figure 111 figure 111: Circutor screen� The following options appear in the lower area: Back, returns to the home screen of the information menu, figure 95�...
Page 124: 5�6�- Setup Menu
CVM-B100 - CVM-B150 5.6.- SETUP MENU If the setup menu is protected by an access password there is an icon on the main menu screen, see figure 112 figure 112:Protected setup menu� A screen will appear when accessing the menu to enter the access password ).
Page 125 CVM-B100 - CVM-B150 Previous, selects the previous digit � Next, selects the next digit � Confirm, to confirm the access password programmed and enter the home screen of the setup menu, figure 114 Main Menu, back to the main menu,...
Page 126: 5�6�1�- Date And Time
CVM-B100 - CVM-B150 5�6�1�- DATe AND TIMe� The current date and time are selected on this screen, figure 115 figure 115: Date and time configuration screen. The digit selected is indicated in white. The following options appear in the lower area: The ten possible digits to program.
Page 127: 5�6�2�- Time Zone
CVM-B100 - CVM-B150 5�6�2�- TIMe zONe� The time zone is selected on this screen figure 116 figure 116: Time zone configuration screen. The following options appear in the lower area: ● When programming the time zone: All possible time zones.
Page 128: 5�6�3�- Language
CVM-B100 - CVM-B150 5�6�3�- LANgUAge� The unit language is selected on this screen figure 117 figure 117: Unit language configuration screen. The following options appear in the lower area: The possible languages of the unit: Spanish, Catalan, English, German, French, Norwegian, Chinese and Korean.
Page 129: Access Key
CVM-B100 - CVM-B150 5�6�4�- ACCeSS key� The access key to the unit setup menu is selected on this screen figure 118 figure 118: Access key configuration screen. The digit selected is indicated in white. The following options appear in the lower area: The ten possible digits to program.
Page 130: 5�6�5�- Measurement Connection Mode
CVM-B100 - CVM-B150 5�6�5�- MeASUReMeNT CONNeCTION MODe� This screen, , is for selecting the measurement connection mode. figure 119 figure 119: Measurement connection mode configuration screen. The following options appear in the lower area: Single-phase. Two-phase. Two-phase with neutral. Three-phase.
Page 131: 5�6�6�- Ratio Of Voltage Transformers
CVM-B100 - CVM-B150 5�6�6�- RATIO Of VOLTAge TRANSfORMeRS� The voltage transformer ratio is selected on this screen, figure 120 The following is programmed:  The value of the primary voltage  The value of the secondary voltage.  The value of the rated phase-neutral voltage.
Page 132 CVM-B100 - CVM-B150 If no key is pressed for 5 minutes, the display screen changes automatically to the default screen. Primary voltage: Maximum value: 500000. Minimum value: 1. Secondary voltage: Maximum value: 999,9 Minimum value: 10. Rated Phase-Neutral Voltage: Maximum value: (Rated Phase-Neutral Voltage / Voltage Ratio) ≤ 1000 Minimum value: (Rated Phase-Neutral Voltage / Voltage Ratio) ≥...
Page 133: 5�6�7�- Ratio Of Current Transformers
CVM-B100 - CVM-B150 5�6�7�- RATIO Of CURReNT TRANSfORMeRS� The current transformer ratio is selected on this screen, figure 121 The following is programmed:  The value of the primary current  The value of the secondary current.  The value of the primary neutral current.
Page 134 CVM-B100 - CVM-B150 Calculated current, to select a software-based calculation by the unit of the neutral current. ● For all parameters: Previous, selects the previous parameter � Next, selects the next parameter � Confirm, confirms and saves in the memory the value programmed on the screen �...
Page 135: 5�6�8�- Installation Data
CVM-B100 - CVM-B150 5�6�8�- INSTALLATION DATA� The following installation features are selected on this screen figure 122  Rated frequency.  Number of quadrants. figure 122: Installation features configuration screen. The parameter selected is indicated in white. The following options appear in the lower area: ●...
Page 136: 5�6�9�- Display Of Variables
CVM-B100 - CVM-B150 Main Menu, back to the main menu, figure 25 Use the keys to select the different options. To confirm the selection, press the key If no key is pressed for 5 minutes, the display screen changes automatically to the default screen.
Page 137: 5�6�10�- Demand
CVM-B100 - CVM-B150 Use the keys to select the different options. To confirm the selection, press the key If no key is pressed for 5 minutes, the display screen changes automatically to the default screen. 5�6�10�- DeMAND� The maximum demand configuration parameters are selected on this screen figure 124 ...
Page 138: 5�6�11�- Energy Consumption Costs
CVM-B100 - CVM-B150 ● For all parameters: Previous, selects the previous parameter � Next, selects the next parameter � Confirm, confirms and saves in the memory the values programmed on the screen � Back, returns to the home screen of the setup menu...
Page 139 CVM-B100 - CVM-B150 The parameter selected is indicated in white. The following options appear in the lower area: ● When programming the cost of the tariffs: The ten possible digits to program� , Comma� ● When programming the Currency: The possible letters to program�...
Page 140: 5�6�12�- Energy Generation Costs
CVM-B100 - CVM-B150 5�6�12�- eNeRgy geNeRATION COSTS� The energy generation costs are selected on this screen figure 126  The cost per kWh of electricity of tariff 1 generation.  The cost per kWh of electricity of tariff 2 generation.
Page 141: Co Consumption Emissions
CVM-B100 - CVM-B150 Next, selects the next parameter � Confirm, confirms and saves in the memory the values programmed on the screen. Back, returns to the home screen of the setup menu figure 114 Main Menu, back to the main menu,...
Page 142 CVM-B100 - CVM-B150 The parameter selected is indicated in white. The following options appear in the lower area: The ten possible digits to program� Comma� Delete character, deletes the selected character � Delete parameter, deletes the characters of the selected parameter.
Page 143: Co Generation Emissions
CVM-B100 - CVM-B150 5�6�14�- geNeRATION eMISSIONS� The carbon generation emission ratios are selected on this screen figure 128 The carbon emissions ratio is the amount of emissions released into the atmosphere to produce a unit of electricity (1 kWh). The ratio for the European mix is approximately 0.65 kgCO per kWh.
Page 144: Relay Digital Outputs
CVM-B100 - CVM-B150 Use the keys to select the different options. To confirm the selection, press the key generation emissions ratio: Maximum value: 100.000 Minimum value: 0.00000 If no key is pressed for 5 minutes, the display screen changes automatically to the default screen.
Page 145 CVM-B100 - CVM-B150 After selecting the output to configure, , the following parameters can be configured: figure 130  The variable code that controls the relay.  The Pre-alarm value.  The minimum value below which the relay is activated.
Page 146 CVM-B100 - CVM-B150 Note: To cancel the operation of a digital output, the 0 code must be programmed. If no key is pressed for 5 minutes, the display screen changes automatically to the default screen. Table 21: Code of variables for programming the digital outputs and transistor�...
Page 147 CVM-B100 - CVM-B150 Table 21 ( Continuation ): Code of variables for programming the digital outputs and transistor� Variable Total Reactive Energy Generated Total Total Total Total Total Reactive Energy Consumed Total Total Total Total Apparent Energy Generated Total Total...
Page 148 CVM-B100 - CVM-B150 The integrated variables are those that the unit has as standard. If in the unit there is more than one module connected with the same type of inputs, the module with the lowest number is the one with the lowest serial number.
Page 149 CVM-B100 - CVM-B150 Confirm, confirms and saves in the memory the values programmed on the screen � Back, returns to the home screen of the setup menu figure 114 Main Menu, back to the main menu, figure 25 Use the keys to select the different options.
Page 150 CVM-B100 - CVM-B150 Table 22(Continuation):Units and maximum and minimum values of the programming variables of the digital outputs� Variable Units Maximum Minimum Active Power -180000 Apparent Power Total Reactive Power kvar 180000 -180000 Inductive Reactive Power kvar Capacitive Reactive Power...
Page 151 CVM-B100 - CVM-B150 ● When programming the disconnection delay (Off) of the relay digital output: The disconnection delay is programmed in seconds. The ten possible digits to program� Delete character, deletes the selected character � Delete parameter, deletes the characters of the selected parameter.
Page 152: 5�6�16�- Transistor Digital Outputs
CVM-B100 - CVM-B150 ● When programming the latch: The latch is selected in this parameter, i.e., if the relay digital output is locked after it has been tripped, even when the condition that triggered it has disappeared. Note: If the unit loses its power supply, the latch disappears.
Page 153 CVM-B100 - CVM-B150 Output 1, to select the configuration of the digital output of transistor 1. Output 2, to select the configuration of the digital output of transistor 2. Back, returns to the home screen of the setup menu figure 114...
Page 154 CVM-B100 - CVM-B150 The parameter selected is indicated in white. The following options appear in the lower area: ● When programming the variable code which controls the transistor digital output ( Table 21 The ten possible digits to program� Delete character, deletes the selected character �...
Page 155 CVM-B100 - CVM-B150 ● When programming the minimum value below which the transistor is activated: The units and maximum and minimum values of the variables to program are shown in Table The ten possible digits to program� Comma and minus sign.
Page 156 CVM-B100 - CVM-B150 If no key is pressed for 5 minutes, the display screen changes automatically to the default screen. ● When programming the connection delay (ON) of the transistor digital output: The connection delay is programmed in seconds. the ten possible digits to program�...
Page 157 CVM-B100 - CVM-B150 Disconnection delay (Off): Maximum value: 999s. Minimum value: 0s. If no key is pressed for 5 minutes, the display screen changes automatically to the default screen. ● When programming the latch: Note: If the unit loses its power supply, the latch disappears.
Page 158 CVM-B100 - CVM-B150 5�6�16�2�- Impulse mode of transistor digital output When selecting the impulse mode, the configuration parameters are: figure 133, The variable code that controls the transistor.  The energy meter factor.  The high and low impulse period.
Page 159 CVM-B100 - CVM-B150 ● When programming the variable code which controls the transistor digital output ( Table 21 The ten possible digits to program� Delete character, deletes the selected character � Delete parameter, deletes the characters of the selected parameter.
Page 160 CVM-B100 - CVM-B150 ● When programming the low period: The low period is the time that the pulse is at its minimum value. The programmed value is a multiple of 10 ms, i.e. when programming 1 the impulse will be at its minimum value of 10 ms.
Page 161: 5�6�17�- Digital Inputs
CVM-B100 - CVM-B150 To confirm the selection, press the key high period: Maximum value: 65536. Minimum value: 1. If no key is pressed for 5 minutes, the display screen changes automatically to the default screen. 5�6�17�- DIgITAL INPUTS� The operating mode for digital inputs and the parameters for each mode are selected in the...
Page 162 CVM-B100 - CVM-B150 5.6.17.1.- Configuration of digital inputs, Tariff mode. When selecting the tariff mode the two inputs operate in the same mode; they cannot be programmed independently ( figure 135 shows the selection of the tariff according to the digital inputs.
Page 163 CVM-B100 - CVM-B150 5�6�17�2�- Configuration of digital inputs, impulse mode. After selecting the configuration of an input in impulse mode, you must select the input that you want to configure in this mode: Digital input 1. Digital input 2. When selecting the input to configure with the key...
Page 164 CVM-B100 - CVM-B150 Next, selects the next parameter � Confirm, confirms and saves in the memory the values programmed on the screen � Back, returns to the main configuration screen for digital inputs figure 134 Main Menu, back to the main menu,...
Page 165 CVM-B100 - CVM-B150 Confirm, confirms and saves in the memory the values programmed on the screen � Back, returns to the main configuration screen for digital inputs figure 134 Main Menu, back to the main menu, figure 25 Use the keys to select the different options.
Page 166 CVM-B100 - CVM-B150 5�6�17�3�- Configuration of digital inputs, logic state mode. After selecting the configuration of an input in logic mode, you must select the input that you want to configure in this mode: Digital input 1. Digital input 2.
Page 167: 5�6�18�- Integrated Communications
CVM-B100 - CVM-B150 5�6�18�- INTegRATeD COMMUNICATIONS� Select the RS-485 communications protocol and configuration parameters on the integrated communications configuration screen, figure 138 The possible communications protocols are: Modbus. BACnet. Using the keys firstly select the communications protocol. To confirm the selection, press the key Integrated communications configuration parameters change according to the communications protocol.
Page 168 CVM-B100 - CVM-B150 The parameter selected is indicated in white. The following options appear in the lower area: ● When programming the Np: The Np is the peripheral number assigned to the unit in the Modbus network. The ten possible digits to program�...
Page 169 CVM-B100 - CVM-B150 If no key is pressed for 5 minutes, the display screen changes automatically to the default screen. ● When programming the parity: Even parity. Odd parity. No parity. Previous, selects the previous parameter � Next, selects the next parameter �...
Page 170 CVM-B100 - CVM-B150 5�6�18�2�- Configuration parameters, BACnet protocol. When selecting the BACnet communications protocol, , you can program the figure 139 following parameters: The transmission speed, Baud Rate.  The MAC.  The Device ID.  figure 139: Integrated communications configuration screen (BACnet protocol).
Page 171 CVM-B100 - CVM-B150 If no key is pressed for 5 minutes, the display screen changes automatically to the default screen. ● When programming the MAC: Here you have to program the MAC address. The ten possible digits to program� Previous, selects the previous parameter �...
Page 172: 5�6�19�- Parameter Reset
CVM-B100 - CVM-B150 If no key is pressed for 5 minutes, the display screen changes automatically to the default screen. 5�6�19�- PARAMeTeR ReSeT� The parameters to be reset are selected on the parameter reset screen, figure 140 In the CVM-B you can reset: The maximum and minimum values.
Page 173: 5�6�20�- User Interface
CVM-B100 - CVM-B150 If no key is pressed for 5 minutes, the display screen changes automatically to the default screen. 5�6�20�- USeR INTeRfACe Select the time to off back for the display, keyboard sensitivity, display decimal and date format on the user interface screen, figure 141 figure 141:User interface screen�...
Page 174 CVM-B100 - CVM-B150 If no key is pressed for 5 minutes, the display screen changes automatically to the default screen. ● When programming the sensitivity of the keyboard: Low. Normal. High. Previous, selects the previous parameter � Next, selects the next parameter �...
Page 175: 5�6�21�- Expansion Modules
CVM-B100 - CVM-B150 Next, selects the next parameter � Confirm, confirms and saves in the memory the values programmed on the screen � Back, returns to the home screen of the setup menu figure 114 Main Menu, back to the main menu,...
Page 176: 6�- Integrated Communications
CVM-B100 - CVM-B150 6�- INTegRATeD COMMUNICATIONS The CVM-B units have one RS-485 communications port. The unit has as standard two communications protocols: MODBUS RTU ® and BACnet. The protocol and configuration parameters are selected on the setup menu. ( “5.6.18.- tegrated communications.”...
Page 177: 6�2�- Modbus Protocol
CVM-B100 - CVM-B150 6.2.- MODBUS PROTOCOL The MODBUS protocol is a communication standard in the industry that enables the network connection of multiple units, where there is a master and multiple slaves. It allows individual master-slave dialogue and also enables commands in broadcast format.
Page 178: 6�2�1�- Example Of Modbus Query
CVM-B100 - CVM-B150 6�2�1�- exAMPLe Of MODBUS qUeRy query: Instantaneous value of the L1 phase voltage Initial reg- No� of regis- Address function ister ters 0000 0002 70B0 Address: 0A, Peripheral number: 10 in decimal. function: 04, Read function. Initial Register: 0000, register from which to start reading.
Page 179 CVM-B100 - CVM-B150 Table 24: Modbus memory map: measurement variables Parameter Symbol Instantaneous Maximum Minimum Units Phase voltage L1 00-01 100-103 300-303 157C Current L1 02-03 104-107 304-307 157D Active Power L1 04-05 108-10B 308-30B 1580 Inductive Reactive Power L1...
Page 180: 6�3�2�- Current Energy Variables
CVM-B100 - CVM-B150 Table 24 ( Continuation) : Modbus memory map: measurement variables Parameter Symbol Instantaneous Maximum Minimum Units Current THD % In THDIN 5C-5D 1B8-1BB 3B8-3BB 1582 Reactive Power L1 kvar 5E-5F 1BC-1BF 3BC-3BF 1580 Reactive Power L2 kvar...
Page 181 CVM-B100 - CVM-B150 Table 25 ( Continuation ) : Modbus memory map: current energy variables� Address Parameter Symbol Apparent energy consumed L1 kVAh L1 544-545 Apparent energy consumed L2 kVAh L2 547-548 Apparent energy consumed L3 kVAh L3 54A-54B Apparent energy consumed LIII...
Page 182 CVM-B100 - CVM-B150 Table 25 ( Continuation ) : Modbus memory map: current energy variables� Address Parameter Symbol Active energy generated L1 kWh L1 (-) 5C8-5C9 Active energy generated L2 kWh L2 (-) 5CB-5CC Active energy generated L3 kWh L3 (-)
Page 183 CVM-B100 - CVM-B150 Table 25 ( Continuation ) : Modbus memory map: current energy variables� Address Parameter Symbol Inductive reactive energy generated L1 kvarhL L1 (-) 64C-64D Inductive reactive energy generated L2 kvarhL L2 (-) 64F-650 Inductive reactive energy generated L3...
Page 184: 6�3�3�- Maximum Demand Variables
CVM-B100 - CVM-B150 Table 25 ( Continuation ) : Modbus memory map: current energy variables� Address Parameter Symbol Capacitive reactive energy generated L1 kvarhC L1 (-) 6D0-6D1 Capacitive reactive energy generated L2 kvarhC L2 (-) 6D3-6D4 Capacitive reactive energy generated L3...
Page 185: 6�3�4�- Voltage And Current Harmonics
CVM-B100 - CVM-B150 6�3�4�- VOLTAge AND CURReNT hARMONICS� The first two registers are the RMS value of the fundamental harmonic, followed by the 50 harmonics, each one of 1 register size. For these variables function 0x04 is implemented: reading registers.
Page 186 CVM-B100 - CVM-B150 Table 27 ( Continuation ) : Modbus memory map: Voltage and current harmonics� Parameter Voltage L1 Voltage L2 Voltage L3 Neutral Voltage Units 41st Order harmonic 1285 12B9 12ED 1321 1581 42nd Order harmonic 1286 12BA 12EE...
Page 187: 6�3�5�- Cost Variables
CVM-B100 - CVM-B150 Table 27 ( Continuation ) : Modbus memory map: Voltage and current harmonics� Parameter Voltage L1 Voltage L2 Voltage L3 Neutral Voltage Units 36th Order harmonic 1352 1386 13BA 13EE 1581 37th Order harmonic 1353 1387 13BB...
Page 188: 6�3�7�- Unit Configuration Variables
CVM-B100 - CVM-B150 6�3�7�- UNIT CONfIgURATION VARIABLeS The following functions are implemented for these variables: function 0x04: reading registers. function 0x10: Writing multiple registers. Note: The programming values must be written in hexadecimal. It is necessary to change the screen when a setup change is made for communi- cations in order for the changes take effect in the display.
Page 189 CVM-B100 - CVM-B150 Table 32: Configuration of local time Local time parameter Local time Value Local time Value UTC+1 0x0000 UTC-11 0x000C UTC+2 0x0001 UTC-10 0x000D UTC+3 0x0002 UTC-9 0x000E UTC+4 0x0003 UTC-8 0x000F UTC+5 0x0004 UTC-7 0x0010 UTC+6 0x0005...
Page 190 CVM-B100 - CVM-B150 6�3�7�5�- Measurement connection mode This parameter occupies 1 register. Table 35: Modbus memory map: Configuration variables (Measurement connection mode). Measurement connection mode Configuration variable Address Valid data window Default value 0: Single-phase 1: Two-phase 2: Two-phase with Neutral...
Page 191 CVM-B100 - CVM-B150 6�3�7�7�- Display of variables This parameter occupies 1 register. Table 37:Modbus memory map: Configuration variables (Display of variables). Selection of variables to be displayed Configuration variable Address Valid data window Default value Selection of variables to be displayed 2A94 –...
Page 192 CVM-B100 - CVM-B150 6�3�7�9�- Installation data These parameters occupy 1 register each. Table 40: Modbus memory map: Configuration variables (Installation data) Installation data Configuration variable Address Valid data window Default value Nominal Frequency 2720 5000 or 6000 5000 2 or 4...
Page 193 CVM-B100 - CVM-B150 6�3�7�12�- Relay digital outputs The Maximum Value and Minimum Value configuration variables occupy 2 registers each. All other variables occupy 1 register each. Table 43:Modbus memory map: Relay digital outputs� Configuration of the digital outputs of the relay...
Page 194 CVM-B100 - CVM-B150 Table 44 ( Continuation): Units and maximum and minimum values of the programming variables of the digital outputs� Variable Units Maximum Minimum Maximum Demand of Active Power 180 000 000 Maximum Demand of Apparent Power The voltage ratio is the ratio between the primary and secondary voltage.
Page 195 CVM-B100 - CVM-B150 6�3�7�14�- Digital inputs The Input Name configuration variable occupies 4 registers. The Units configuration variable occupies 3 registers. All other variables occupy 1 register each. Table 46:Modbus memory map: Configuration variables (Digital Inputs). Configuration of Digital Inputs...
Page 196 CVM-B100 - CVM-B150 6�3�7�16�- User interface These parameters occupy 1 register each. Table 48:Modbus memory map: Configuration variables (user interface) User interface Configuration variable Address Valid data window Default value Sensitivity 280C 0: low, 1: medium, 2: high 1-99 (minutes)
Page 197 CVM-B100 - CVM-B150 Example: query: Reading the position of input channels. func- Initial reg- No� of regis- Address tion ister ters 2850 0001 XXXX Address: 0A, Peripheral number: 10 in decimal. function: 04, Read function. Initial Register: 2850, register address.
Page 198 CVM-B100 - CVM-B150 Table 52 (Continuation): Modbus memory map: Configuration variables (Configuration of the parameter customisation screens) Configuration of the parameter customisation screens Valid data Configuration variable Address margin Not used 2971 2981 2991 29A1 29B1 Not used 2972 2982...
Page 199 CVM-B100 - CVM-B150 Table 54: Modbus memory map: Configuration variables (Configuration of the parameter customisation screens) Configuration of the parameter customisation screens Valid data Configuration variable Address margin Screen 1 Screen 2 Screen 3 Screen 4 Screen 5 4 parameter screens...
Page 200 CVM-B100 - CVM-B150 Table 55 ( Continuation) : Configuration of custom screens: Variables� Variables parameter Variable Value Variable Value Apparent Power 0x000A Emissions 0x0018 Cost Power Factor 0x000B 0x0019 φ 0x000C Empty (no parameters) 0x001A Cosine Voltage THD 0x000D Table 56: Configuration of custom screens: Phases.
Page 201: 6�3�8�- Other Unit Variables
CVM-B100 - CVM-B150 6�3�8�- OTheR UNIT VARIABLeS 6�3�8�1�- firmware version These parameters occupy 6 registers. Table 59: Modbus memory map: firmware version� firmware version Configuration variable Address example Version 2AF8 – 2AFD “010102” For this variable only function 0x04 is implemented: reading registers.
Page 202 CVM-B100 - CVM-B150 6�3�8�5�- Alarm status 6�3�8�5�1�- Relay digital outputs The Latch variable occupies 2 registers. All other variables occupy 1 register each. Table 63: Modbus memory map: Alarm status: Relay digital outputs: Alarm status Relay digital outputs Address Configuration variable...
Page 203 CVM-B100 - CVM-B150 6�3�8�5�2�- Transistor digital outputs The Latch variable occupies 2 registers. All other variables occupy 1 register each. Table 64: Modbus memory map: Alarm status: Transistor digital outputs� Alarm status: Transistor digital outputs Configuration variable Address Valid data window...
Page 204: 6�3�9�- Deleting Parameters
CVM-B100 - CVM-B150 6�3�8�6� energy closes The Energy variables occupy 90 registers. All other variables occupy 1 register each. energy closes Variable Address 1 day active energy close 2BC0 - 2C19 1 day reactive energy close total 2C24 - 2C7D...
Page 205: 6�4�- Bacnet Protocol
CVM-B100 - CVM-B150 Table 65 ( Continuation ) : Modbus memory map: Deleting parameters Deleting parameters Address Value to be sent Deleting the alarm logs 0840 0x00FF Deleting the event logs 0841 0x00FF Deleting the energy closes 0842 0x00FF Full deletion...
Page 206: 6�5�- Pics Map
CVM-B100 - CVM-B150 6.5.- PICS MAP PICS Vendor Name: CIRCUTOR Product Name: CVM-B100 CVM-B150 Product Model Number: 0823 Application Software Version: firmware Revision: BACnet Protocol Revision: 10 Product Description: Electrical energy meter BACnet Standardised Device Profile (Annex L) BACnet Application Specific Controller (B-ASC)
Page 207 CVM-B100 - CVM-B150 DeSCRIPTION SyMBOL ID OBJeCTS OBJeCT NAMe UNITS Potencia reactiva Reactive power kvar 2 ReactPwrPh2 kvar Factor de potencia Power factor PF 2 PwrFactPh2 Tensión fase-neutro Voltage phase to AI10 Ph2NU3 neutral Corriente Current AI11 Ph3Current Potencia activa...
Page 208 CVM-B100 - CVM-B150 DeSCRIPTION SyMBOL ID OBJeCTS OBJeCT NAMe UNITS Potencia aparente Three phase aparent kVAIII AI43 AppPw3Ph trifásica power Máxima demanda I1 Maximum demand I1 Md (A1) AI44 MaxDemand_A1 Máxima demanda I2 Maximum demand I2 Md(A2) AI45 MaxDemand_A2 Máxima demanda I3...
Page 209: 7�- Expansion Modules
CVM-B100 - CVM-B150 7�- exPANSION MODULeS The unit has following expansion modules that can be connected to it. The modules are:  Transistor Digital Inputs/Outputs (M-CVM-AB-8I-8OTR),  Relay Digital Inputs/Outputs (M-CVM-AB-8I-8OR)  Analogue Inputs/Outputs (M-CVM-AB-4AI-8AO)  Modbus TCP Bridge communications module (M-CVM-AB-Modbus-TCP(Bridge)) ...
Page 210 CVM-B100 - CVM-B150 A�- Protective cove version 1 To install, firstly remove the protective cover of the expansion connector located at the rear of the unit, figure 143� figure 143: Remove the expansion connector cap� connect the expansion module to the unit, figure 144 figure 144: Connect the expansion module�...
Page 211 CVM-B100 - CVM-B150 B- Protective cove version 2 To install, firstly remove the protective cover of the expansion connector located at the rear of the unit. To do so: a�- Remove the two fastening pins that secure the protective cover with a flat tip screwdriver,...
Page 212 CVM-B100 - CVM-B150 and secure it by inserting the 4 fastening pins into the corresponding slots, figure 149: Insert the fastening pins into the corresponding slots� Instruction Manual...
Page 213: 7�2�- Relay Digital Inputs/Outputs
CVM-B100 - CVM-B150 7.2.- RELAY DIGITAL INPUTS/OUTPUTS This expansion module features 8 relay digital inputs and 8 relay digital outputs. 7�2�1�- CONNeCTION TeRMINALS A�- Terminals on the upper face Table 66: List of terminals on the upper face, Relay digital inputs/outputs module�...
Page 214: 7�2�2�- Connection Diagrams
CVM-B100 - CVM-B150 7�2�2�- CONNeCTION DIAgRAMS A�- Relay digital outputs Relay 1 2 3 4 5 6 7 8 9 10 External power figure 152: Connection diagram, relay digital outputs� B�- Digital inputs 12 V DC COMM Free voltage input figure 153: Connection diagram, digital inputs�...
Page 215: 7�2�3�- Configuration
CVM-B100 - CVM-B150 7�2�3�- CONfIgURATION You can access the setup menu on the main screen, figure 25 The screen in is the home screen of the setup menu. figure 154, figure 154: Main screen of setup menu� All the possible programming parameters for the unit appear in the lower area. To configure the...
Page 216 CVM-B100 - CVM-B150 Displayed here are all the expansion modules connected to the unit. If in the unit there is more than one module of the same type connected, a number will appear in the icon to differentiate them ; the module with the lowest number has the lowest serial number.
Page 217 CVM-B100 - CVM-B150 7�2�3�1�- Digital inputs� The operating mode for 8 digital inputs and the parameters for each mode are selected in the main configuration screen for digital inputs, figure 157 The 8 inputs can be configured separately as: Impulses.
Page 218 CVM-B100 - CVM-B150 7�2�3�1�1�- Configuration of a digital input, impulse mode. When selecting the configuration of digital inputs in impulse mode, you can program the following parameters: The input name.  The units.  The decimals.  The energy meter factor.
Page 219: 7�2�4�- Modbus Communications
CVM-B100 - CVM-B150 Digital outputs of 1 to 8, to select the configuration of each of the 8 relay digital outputs. Back, returns to the main screen for relay digital inputs/outputs, figure 156 Main Menu, back to the main menu,...
Page 220 CVM-B100 - CVM-B150 7�2�4�1�- Programming of relay digital outputs The following functions are implemented for these variables: function 0x04: reading registers. function 0x10: Writing multiple registers. Table 68: Modbus memory map: Relay digital outputs, expansion modules (Table 1)� Configuration of relay digital outputs...
Page 221 CVM-B100 - CVM-B150 Table 70: Modbus memory map: Relay digital outputs, expansion modules (Table 3)� Configuration of the relay digital outputs : Slot 2 Address Configuration variable Output Output Output Output Output Output Output Output Maximum value C738 C74C C760...
Page 222 CVM-B100 - CVM-B150 Table 72:Modbus memory map: Relay digital outputs, expansion modules (Table 5)� Configuration of relay digital outputs: Slot 4 Address Configuration variable Output Output Output Output Output Output Output Output Maximum value CF08 CF1C CF30 CF44 CF58 CF6C...
Page 223 CVM-B100 - CVM-B150 Table 75: Modbus memory map: Manual programming of outputs, expansion modules (Table 3)� Manual programming of relay digital outputs: Slot 2 Address Configuration variable Output Output Output Output Output Output Output Output Programming status C810 C824 C838...
Page 224 CVM-B100 - CVM-B150 7�2�4�5�- Status of relay digital outputs The following functions are implemented for these variables: function 0x04: reading registers. function 0x10: Writing multiple registers. Table 78:Modbus memory map: Status of relay digital outputs (Table 1)� Status of relay digital outputs...
Page 225 CVM-B100 - CVM-B150 Table 79: Modbus memory map: Status of relay digital outputs (Table 2)� Status of relay digital outputs: Slot 1 Address Configuration variable Output Output Output Output Output Output Output Output Latch C670 C684 C698 C6AC C6C0 C6D4...
Page 226 CVM-B100 - CVM-B150 Table 81: Modbus memory map: Status of relay digital outputs (Table 4)� Status of relay digital outputs: Slot 3 Address Configuration variable Output Output Output Output Output Output Output Output Latch CE40 CE54 CE68 CE7C CE90 CEA4...
Page 227: 7�3�- Transistor Digital Inputs/Outputs
CVM-B100 - CVM-B150 7.3.- TRANSISTOR DIGITAL INPUTS/OUTPUTS This expansion module contains 8 transistor digital inputs and 8 transistor digital outputs. 7�3�1�- CONNeCTION TeRMINALS A�- Terminals on the upper face Table 83:List of terminals on the upper face, Transistor digital inputs/outputs module�...
Page 228: 7�3�2�- Connection Diagrams
CVM-B100 - CVM-B150 7�3�2�- CONNeCTION DIAgRAMS A�- Transistor digital outputs Optocoupler 1 2 3 4 5 6 7 8 9 10 External power figure 161:Connection diagram, transistor digital outputs� B�- Digital inputs 12 V DC COMM Free voltage input figure 162:Connection diagram, digital inputs�...
Page 229: 7�3�3�- Configuration
CVM-B100 - CVM-B150 7�3�3�- CONfIgURATION You can access the setup menu on the main screen, figure 25 The screen in is the home screen of the setup menu. figure 163, figure 163: Main screen of setup menu� All the possible programming parameters for the unit appear in the lower area. To configure the...
Page 230 CVM-B100 - CVM-B150 Displayed here are all the expansion modules connected to the unit. If in the unit there is more than one module of the same type connected, a number will appear in the icon to differentiate them ; the module with the lowest number has the lowest serial number.
Page 231 CVM-B100 - CVM-B150 7�3�3�1�- Digital inputs� The configuration of the digital inputs is the same as the configuration of the digital inputs in the relay digital inputs/outputs module, see “7.2.3.1.- Digital inputs.” 7�3�3�2�- Transistor digital outputs� Select the output to configure on the main configuration screen for transistor digital outputs, figure 166 figure 166: Main configuration screen of transistor digital outputs.
Page 232: 7�3�4�- Comunicaciones Modbus
CVM-B100 - CVM-B150 7�3�4�- COMUNICACIONeS MODBUS The address of the Modbus memory map depends on the position of the expansion module in the unit. Slot 1 will be the position of the expansion module installed just behind the standard unit, and Slot 2 the next position...
Page 233 CVM-B100 - CVM-B150 Table 86: Modbus memory map: Transistor digital outputs, expansion modules (Table 2)� Transistor Digital Outputs configuration: Slot 1 Address Configuration variable Impulse Output Output Output Output Output Output Output Output Alarm output Energy Maximum value C350 C364...
Page 234 CVM-B100 - CVM-B150 Table 88: Modbus memory map: Transistor digital outputs, expansion modules (Table 4)� Transistor Digital Outputs configuration: Slot 3 Configuration variable Address Impulse Output Output Output Output Output Output Output Output Alarm output Energy Maximum value CB20 CB34...
Page 235 CVM-B100 - CVM-B150 7�3�4�2�- Manual programming of transistor digital outputs The following functions are implemented for these variables: function 0x04:reading registers. function 0x10: Writing multiple registers. Table 90: Modbus memory map: Manual programming of outputs, expansion modules (Table 1)� Manual programming of transistor digital outputs...
Page 236 CVM-B100 - CVM-B150 Table 94: Modbus memory map: Manual programming of outputs, expansion modules (Table 5)� Manual programming of transistor digital outputs: Slot 4 Address Configuration variable Output Output Output Output Output Output Output Output Programming status CFE0 CFF4 D008...
Page 237 CVM-B100 - CVM-B150 Table 97:Modbus memory map: Digital inputs, expansion modules (Table 3)� Configuration of digital inputs: Slot 2 Address Configuration variable Input 1 Input 2 Input 3 Input 4 Input 5 Input 6 Input 7 Input 8 Mode C8C8...
Page 238 CVM-B100 - CVM-B150 7�3�4�4�- Status of digital inputs The following functions are implemented for these variables: function 0x04: reading registers. Table 100: Modbus memory map: Status of digital inputs (Table 1)� Status of digital inputs: Slot 1 Configuration variable Address...
Page 239 CVM-B100 - CVM-B150 Table 103: Modbus memory map: Status of digital inputs (Table 4)� Status of digital inputs: Slot 4 Configuration variable Address Valid data window Input Status 1 D160 - D161 0 to 1 0 to 1 Input Status 2...
Page 240 CVM-B100 - CVM-B150 Table 105: Modbus memory map: Status of transistor digital outputs (Table 2)� Transistor digital outputs: Slot1 Configuration variable Address Impulse Output Output Output Output Output Output Output Output Alarm output Latch kWh o Wh C670 C684 C698...
Page 241 CVM-B100 - CVM-B150 Table 106 ( Continuation): Modbus memory map: Status of transistor digital outputs (Table 3)� estado de las Salidas Digitales de Transistor : Slot 2 Variable de configuración Dirección Not used CA62 CA76 CA8A CA9E CAB2 CAC6 CADA...
Page 242 CVM-B100 - CVM-B150 Table 108: Modbus memory map: Status of transistor digital outputs (Table 5)� Transistor digital outputs: Slot4 Configuration variable Address Impulse Output Output Output Output Output Output Output Output Alarm output Latch kWh o Wh D228 D23C D250...
Page 243: 7�4�- Analogue Inputs/Outputs
CVM-B100 - CVM-B150 7.4.- ANALOGUE INPUTS/OUTPUTS This expansion module contains 8 analogue outputs and 4 analogue inputs. 7�4�1�- CONNeCTION TeRMINALS A�- Terminals on the upper face Table 109: List of terminals on the upper face, Analogue inputs/outputs module� Unit terminals...
Page 244 CVM-B100 - CVM-B150 B�- Terminals on the lower face Table 110: List of terminals on the lower face, Analogue inputs/outputs module� Unit terminals 10: I +, Analogue input 1 14: I +, Analogue input 3 11: I -, Analogue input 1...
Page 245: 7�4�2�- Connection Diagrams
CVM-B100 - CVM-B150 7�4�2�- CONNeCTION DIAgRAMS A�- Analogue outputs External load figure 169:Connection diagram, analogue outputs� B�- Analogue inputs 150Ω 150Ω Sensor Sensor 0/4 ...20 mA 0/4 ...20 mA figure 170: Connection diagram, analogue inputs� Instruction Manual...
Page 246: 7�4�3�- Configuration
CVM-B100 - CVM-B150 7�4�3�- CONfIgURATION You can access the setup menu on the main screen, figure 25 The screen in is the home screen of the setup menu. figure 171, figure 171: Main screen of setup menu� All the possible programming parameters for the unit appear in the lower area. To configure the...
Page 247 CVM-B100 - CVM-B150 Displayed here are all the expansion modules connected to the unit. If in the unit there is more than one module of the same type connected, a number will appear in the icon to differentiate them ; the module with the lowest number has the lowest serial number.
Page 248 CVM-B100 - CVM-B150 7�4�3�1�- Analogue inputs� Select the input to configure on the main configuration screen for the analogue inputs, figure 174 figure 174: Main configuration screen for analogue inputs. The following options appear in the lower area: Analogue inputs from 1 to 4, to select the configuration of each of the 4 analogue inputs.
Page 249 CVM-B100 - CVM-B150 figure 175: Analogue inputs configuration screen. The parameter selected is indicated in white. The following options appear in the lower area: ● When programming the scale: 0... 20 mA, to select the scale from 0 to 20 mA�...
Page 250 CVM-B100 - CVM-B150 Confirm, confirms and saves in the memory the values programmed on the screen � Back, returns to the main configuration screen for analogue inputs, figure 174� Main Menu, back to the main menu, figure 25 zero Value: Maximum value: 32000.
Page 251 CVM-B100 - CVM-B150 Next, selects the next parameter � Confirm, confirms and saves in the memory the values programmed on the screen � Back, returns to the main configuration screen for analogue inputs, figure 174� Main Menu, back to the main menu,...
Page 252 CVM-B100 - CVM-B150 If no key is pressed for 5 minutes, the display screen changes automatically to the default screen. When selecting the output to configure, the configuration parameters are: figure 177, Variable code.  The scale.  The zero ...
Page 253 CVM-B100 - CVM-B150 ● When programming the scale: 0... 20mA, to select the scale from 0 to 20mA� 4... 20mA, to select the scale from 4 to 20mA� 0... 10V, to select the scale from 0 to 10V� Previous, selects the previous parameter �...
Page 254: 7�4�4�- Modbus Communications
CVM-B100 - CVM-B150 7�4�4�- MODBUS COMMUNICATIONS The address of the Modbus memory map depends on the position of the expansion module in the unit. Slot 1 will be the position of the expansion module installed just behind the standard unit, and Slot 2 the next position...
Page 255 CVM-B100 - CVM-B150 Table 113: Modbus memory map: Analogue outputs, expansion modules (Table 3)� Configuration of analogue outputs: Slot 2 Address Configuration Output Output Output Output Output Output Output Output variable D728 - D732- D73C - D746 - D750 -...
Page 256 CVM-B100 - CVM-B150 7�4�4�2�- Programming analogue inputs The following functions are implemented for these variables: function 0x04: reading registers. function 0x10:Writing multiple registers. Table 116:Modbus memory map: Analogue inputs, expansion modules (Table 1)� Configuration of analogue inputs Configuration variable Valid data window...
Page 257 CVM-B100 - CVM-B150 Table 119: Modbus memory map: Analogue inputs, expansion modules (Table 4)� Configuration of analogue inputs: Slot 3 Address Configuration variable Input 1 Input 2 Input 3 Input 4 Zero DAC0 DAD4 DAE8 DAFC Full-scale DAC1 DAD5 DAE9...
Page 258 CVM-B100 - CVM-B150 Table 123: Modbus memory map: Analogue inputs, expansion modules (Table 8)� Status of the analogue inputs: Slot 3 Configuration variable Address Valid data margin Status Input 1 DB60 - DB61 Status Input 2 DB62 - DB63 Status Input 3...
Page 259: 7�5�- Modbus/Tcp Bridge Communications Module
CVM-B100 - CVM-B150 7.5.- MODBUS/TCP BRIDGE COMMUNICATIONS MODULE The M-CVM-AB-Modbus TCP ( Bridge) is a communications module for connecting the CVM-B units to a Modbus/TCP network and as an Ethernet to RS-485 gateway. Modbus/TCP is a communications protocol designed for enabling industrial units to communicate with each other on Ethernet networks using TCP/IP protocols.
Page 260: 7�5�3�- Connection Diagram
CVM-B100 - CVM-B150 7�5�3�- CONNeCTION DIAgRAM B(-) B(-) A(+) A(+) RS-485 Ethernet CVM MINI OUTPUTS S0- S0+ S0+ RS485 INPUTS A(+) B(-) I1 I2 POWER SUPPLY Rc R2 R1 Tc T2 T1 CVM B-1xx CVM C10 M-CVM-AB-Modbus TCP (Bridge) Ph-Ph...
Page 261 CVM-B100 - CVM-B150 All the possible programming parameters for the unit appear in the lower area. To configure the expansion modules you need to, using the keys , browse the various parameters until finding the expansion modules icon, To access the selected parameter, press the key If no key is pressed for 5 minutes, the display screen changes automatically to the default screen.
Page 262 CVM-B100 - CVM-B150 figure 183: Main configuration screen of the Modbus TCP communications module. The following options appear in the lower area: Configuration of DHCP activation/deactivation. “7.5.4.1.- Configuration of DHCP activation/deactivation”) Configuration of the TCP parameters. (“7.5.4.2.- Configuration of the TCP parameters manually.”...
Page 263 CVM-B100 - CVM-B150 7�5�4�1�- Configuration of DHCP activation/deactivation On this screen you select whether or not the IP is automatically assigned. figure 184 figure 184: Configuration screen of the Modbus TCP (Bridge) module ( TCP Auto) The following options appear in the lower area: DHCP activation, the IP is automatically assigned.
Page 264 CVM-B100 - CVM-B150 7�5�4�2�- Configuration of the TCP parameters manually. Note: If DHCP is activated, you will not be able to modify the parameters on this screen. This is indicated by a * next to each value. The configuration parameters of the TCP communication are, figure 185 IP address.
Page 265 CVM-B100 - CVM-B150 7�5�4�3�- Configuration of the RS-485 gateway parameters The configuration parameters of the RS-485 gateway are, figure 186 The transmission speed, Baud rate.  The parity.  The number of stop bits.  figure 186: Configuration screen of the Modbus TCP (Bridge) module (RS-485 Gateway) ●...
Page 266 CVM-B100 - CVM-B150 ● When programming the parity: Even parity. Odd parity. No parity. Previous, selects the previous parameter � Next, selects the next parameter � Confirm, confirms and saves the values programmed on the screen in the memory �...
Page 267: 7�5�5�- Modbus Communications
CVM-B100 - CVM-B150 7�5�5�- MODBUS COMMUNICATIONS The following functions are implemented for these variables: function 0x04: reading registers. function 0x10: Writing multiple registers. 7.5.5.1.- Configuration of DHCP activation/deactivation Table 127:Modbus memory map: Modbus TCP (Bridge) communications module (Table 1) Configuration of DHCP activation/deactivation...
Page 268: 7�6�- Lonworks Communications Module
CVM-B100 - CVM-B150 7.6.- LONWORKS COMMUNICATIONS MODULE The LonWorks communications module, M-CVM-AB-LON, enables communicating the CVM-B on a LonWorks network. 7�6�1�- CONNeCTION TeRMINALS Table 131: List of terminals, Lonworks communications module� Terminals in the unit 1, 4: A, Bus connection ( without polarity )
Page 269: 7�6�3�- Configuration
CVM-B100 - CVM-B150 7�6�3�- CONfIgURATION You can access the setup menu on the main screen, figure 25 The screen in is the home screen of the setup menu. figure 189, figure 189: Main screen of setup menu� All the possible programming parameters for the unit appear in the lower area. To configure the...
Page 270 CVM-B100 - CVM-B150 Displayed here are all the expansion modules connected to the unit. If in the unit there is more than one module of the same type connected, a number will appear in the icon to differentiate them ; the module with the lowest number has the lowest serial number.
Page 271: 7�6�4�- Modbus Communications
CVM-B100 - CVM-B150 figure 192: Main configuration screen of the LonWorks module ( Message) The following options also appear at the bottom: Confirm, for deleting the message and to continue browsing the menu. Back, returns to the home screen of the expansion modules menu,...
Page 272: 7�6�5�- List Of Lonworks Logs
CVM-B100 - CVM-B150 7�6�5�- LIST Of LONwORkS LOgS Note: The binary files and setup file can be downloaded from Circutor’s website. Variable Name Variable type Unit nvo_Ph1Current SNVT_amp_ac (139) Current L1 Code Resolution Values 0..65,534 Name Variable type Unit nvo_Ph2Current...
Page 273 CVM-B100 - CVM-B150 Variable Name Variable type Unit nvo_ActPwrPh2 SNVT_power_kilo (28) kW L2 Code Resolution Values Active power L2 0..6553.5 Name Variable type Unit nvo_ActPwrPh3 SNVT_power_kilo (28) kW L3 Active power L3 Code Resolution Values 0..6553.5 Name Variable type Unit...
Page 274 CVM-B100 - CVM-B150 Variable Name Variable type Unit nvo_THDVal_I2 SNVT_lev_percent (81) THD A% L2 Current THD L2 Code Resolution Values 0.005 -163.840..163.830 Name Variable type Unit nvo_THDVal_I3 SNVT_lev_percent (81) THD A% L3 Current THD L3 Code Resolution Values 0.005 -163.840..163.830...
Page 275 CVM-B100 - CVM-B150 Variable Name Variable type Unit nvoAvgValCurr3Ph SNVT_amp_ac (139) I_AVG Code Resolution Values Three-phase Current 0..65,534 Name Variable type Unit nvo_MaxDemand_A1 SNVT_amp_ac (139) Md(A1) Current Maximum Demand L1 Code Resolution Values 0..65,534 Name Variable type Unit nvo_MaxDemand_A2 SNVT_amp_ac (139)
Page 276 CVM-B100 - CVM-B150 Variable Name Variable type Unit nvoIndEnergy_exp SNVT_elec_kwh_I (146) kVArL.h(-) Inductive Reactive Energy (-) Code Resolution Values -214,748,364.8.. 214,748,364.6 Name Variable type Unit nvoCapEnergy_exp SNVT_elec_kwh_I (146) kVArC.h(-) Capacitive Reactive Energy (-) Code Resolution Values -214,748,364.8.. 214,748,364.6 Name Variable type...
Page 277 CVM-B100 - CVM-B150 Arrray 1 tipo NVT ( SNVT_str_int (37)), Unit (N/A), Resolution (1), Values (0...65,565), Bytes (31) typedef struct { unsigned short char_set ; unsigned long wide_char [15] ; } SNTV_str_int; Name Variable type Unit nvo_ActPwrPh2 SNVT_power_kilo (28) kW L2...
Page 278 CVM-B100 - CVM-B150 Arrray 3 tipo NVT ( SNVT_str_int (37)), Unit (N/A), Resolution (1), Values (0...65,565), Bytes (31) typedef struct { unsigned short char_set ; unsigned long wide_char [15] ; } SNTV_str_int; Name Variable type Unit nvo_Ph2NU1 SNVT_volt_ac (138) Phase-Neutral Voltage L1...
Page 279 CVM-B100 - CVM-B150 Arrray 3 tipo NVT ( SNVT_str_int (37)), Unit (N/A), Resolution (1), Values (0...65,565), Bytes (31) typedef struct { unsigned short char_set ; unsigned long wide_char [15] ; } SNTV_str_int; Name Variable type Unit nvo_ActEnergy SNVT_elec_kwh_I (146) kW.h(+)
Page 280: 7�7�- Profibus Communications Module
CVM-B100 - CVM-B150 7.7.- PROFIBUS COMMUNICATIONS MODULE The Profibus communications module, M-CVM-AB-Profibus, enables communicating the CVM-B with a Profibus network. 7�7�1�- CONNeCTION TeRMINALS Table 133: List of terminals, Profibus communications module. Connection terminals 1: Shield 6: P5, 5V supply voltage...
Page 281: 7�7�3�- Connection Diagram
CVM-B100 - CVM-B150 7�7�3�- CONNeCTION DIAgRAM Master Profibus Red Profibus / Network Profibus CVM-B1xx CVM-B1xx M-CVM-AB-Pro bus M-CVM-AB-Pro bus figure 195:Connection diagram, Profibus. Instruction Manual...
Page 282: 7�7�4�- Configuration
CVM-B100 - CVM-B150 7�7�4�- CONfIgURATION You can access the setup menu on the main screen, figure 25 The screen in is the home screen of the setup menu. figure 196, figure 196: Main screen of setup menu� All the possible programming parameters for the unit appear in the lower area. To configure the...
Page 283 CVM-B100 - CVM-B150 Displayed here are all the expansion modules connected to the unit. If in the unit there is more than one module of the same type connected, a number will appear in the icon to differentiate them ; the module with the lowest number has the lowest serial number.
Page 284: 7�7�5�- Modbus Communications
Peripheral number EA60 7�7�6�- VARIABLeS PROfIBUS gSD fILe Note: Profibus drivers for Scada can be downloaded from Circutor’s website. The configurations of the GSD modules are given in figure 137� The table shows the module number, content (variable) and the total size of the module.
Page 285 CVM-B100 - CVM-B150 Table 138: gSD modules (Module 1 - Mod 1�2) Mod 1�2 Phase currents Symbol Bytes Address Units Current 02-03 Current 12-13 Current 22-23 Table 139: gSD modules (Module 1 - Mod 1�3) Mod 1�3 Phase-phase voltage Symbol...
Page 286 CVM-B100 - CVM-B150 Module 3 Table 143: gSD modules (Module 3 - Mod 3�1) Mod 3�1 Average values Symbol Bytes Address Units Average phase voltage Vn_AVG 3C-3D Vx100 Average line voltage Vp_AVG 3E-3F Vx100 Average current I_AVG 40-41 Table 144: gSD modules (Module 3 - Mod 3�2) Mod 3�2...
Page 287 CVM-B100 - CVM-B150 Module 5 Table 147: gSD modules (Module 5) Mod 5 ThD V / I Symbol Bytes Address Units V 1 THD ratio THDV1 4E-4F %x100 V 2 THD ratio THDV2 50-51 %x100 V 3 THD ratio THDV3...
Page 288 CVM-B100 - CVM-B150 Table 148 ( Continuation) : gSD modules (Module 8) Mod 8 Odd harmonics voltage Symbol Bytes Address Units 7th Order Harmonic vn H7 0AC8 %x100 9th Order Harmonic vn H9 0ACA %x100 11th Order Harmonic vn H11...
Page 289 CVM-B100 - CVM-B150 Table 149 ( Continuation) : gSD modules (Module 9) Mod 9 Odd harmonics current Symbol Bytes Address Units In 9th Order Harmonic in H9 0BF6 %x100 In 11th Order Harmonic in H11 0BF8 %x100 In 13th Order Harmonic...
Page 290: 7�8�- Mbus Communications Module
CVM-B100 - CVM-B150 7.8.- MBUS COMMUNICATIONS MODULE The MBus communications module, M-CVM-AB-MBus, enables communicating the CVM-B with a M-Bus network. 7�8�1�- CONNeCTION TeRMINALS Table 151: List of terminals, MBus communications module� Connection terminals 1, 4: MBus + 3: Not use 2, 5: MBus - figure 199: MBus communications module terminals�...
Page 291: 7�8�3�- Configuration
CVM-B100 - CVM-B150 7�8�3�- CONfIgURATION You can access the setup menu on the main screen, figure 25 The screen in is the home screen of the setup menu. figure 201, figure 201: Main screen of setup menu� All the possible programming parameters for the unit appear in the lower area. To configure the...
Page 292 CVM-B100 - CVM-B150 Displayed here are all the expansion modules connected to the unit. If in the unit there is more than one module of the same type connected, a number will appear in the icon to differentiate them ; the module with the lowest number has the lowest serial number.
Page 293: 7�8�4�- Modbus Communications
CVM-B100 - CVM-B150 Maximum value: 250. Minimum value: Use the buttons to select the different options. To confirm the selection, press the button. If no button is pressed for 5 minutes, the display screen changes automatically to the default screen, which displays the voltage measurement of 4 parameters.
Page 294: 7�8�5�- M-Bus Communications
CVM-B100 - CVM-B150 7�8�5�- M-BUS COMMUNICATIONS The M-Bus module implements a slave M-Bus interface that is compatible with the EN13757-2 and EN13757-3 standards, enabling the direct reading of up to 38 electrical parameters of the CVM-B. Network access is accomplished with a M-Bus transceiver that is self-powered from the same bus and galvanically isolated from the rest of the circuit.
Page 295 CVM-B100 - CVM-B150 7�8�5�1�- TABLe Of “RSP_UD” TeLegRAM VARIABLeS Variables arranged by order of appearance in the telegram. Table 153: Table of “RSP_UD” telegram variables� Variable format Type Units Notes Date/time of the Date / Time 4 bytes type F...
Page 296: 7�9�- Data Storage Module, Datalogger
Refer to the PowerStudio manual and tutorials found on CIRCUTOR’s website for more information about additional configurations, sending emails, generation of additional calculations, etc.
Page 297: 7�9�3�- Connection Diagram
CVM-B100 - CVM-B150 7�9�3�- CONNeCTION DIAgRAM Con navegador Web With a browser compatible con Java compatible with Java With a browser compatible with Java Con navegador Web compatible con Java Opcional / Optional INTERNET SERVIDOR/ SERVER ROUTER Ethernet CVM B-1xx...
Page 298: 7�9�4�- Configuration
CVM-B100 - CVM-B150 7�9�4�- CONfIgURATION You can access the setup menu on the main screen, figure 25 The screen in is the home screen of the setup menu. figure 207, figure 207: Main screen of setup menu� All the possible programming parameters for the unit appear in the lower area. To configure the...
Page 299 CVM-B100 - CVM-B150 Displayed here are all the expansion modules connected to the unit. If in the unit there is more than one module of the same type connected, a number will appear in the icon to differentiate them ; the module with the lowest number has the lowest serial number.
Page 300 CVM-B100 - CVM-B150 7�9�4�1�- Configuration of DHCP activation/deactivation On this screen you select whether or not the IP is automatically assigned. figure 210 figure 210: Configuration screen of the Datalogger module (TCP Auto) The following options appear in the lower area: DHCP activation, the IP is automatically assigned.
Page 301 CVM-B100 - CVM-B150 7�9�4�2�- Configuration of the TCP parameters manually. Note: If DHCP is activated, you will not be able to modify the parameters on this screen. This is indicated by a * next to each value. On this screen displays the TCP parameters are configured, figure 211�...
Page 302 CVM-B100 - CVM-B150 7�9�4�3�- Port configuration. On this screen the port address is configured, � figure 212 figure 212:Port configuration screen. The parameter selected is indicated in white. The following options appear in the lower area: the ten possible digits to program�...
Page 303: 7�9�5�- Modbus Communications
CVM-B100 - CVM-B150 7�9�5�- MODBUS COMMUNICATIONS The following functions are implemented for these variables: function 0x04: reading registers. 7�9�5�1�- TCP parameters Table 156: Modbus memory map: : Datalogger module (Table 1) TCP parameters Configuration variable Address Valid data margin example...
Page 304: 7�10�- Modbus/Tcp Switch Communications Module
CVM-B100 - CVM-B150 7.10.- MODBUS/TCP Switch COMMUNICATIONS MODULE The M-CVM-AB-Modbus TCP (Switch) is a communications module for connecting the CVM-B units to a Modbus/TCP network and as an Ethernet to Ethernet gateway. Modbus/TCP is a communications protocol designed for enabling industrial units to communicate with each other on Ethernet networks using TCP/IP protocols.
Page 305: 7�10�3�- Connection Diagram
CVM-B100 - CVM-B150 7�10�3�- CONNeCTION DIAgRAM Ethernet Ethernet B(-) B(-) A(+) A(+) RS-485 Ethernet Ethernet CVM MINI OUTPUTS S0- S0+ S0+ RS485 INPUTS A(+) B(-) I1 I2 POWER SUPPLY Rc R2 R1 Tc T2 T1 CVM B-1xx CVM B-1xx CVM B-1xx...
Page 306 CVM-B100 - CVM-B150 figure 217: Main screen of expansion modules� Displayed here are all the expansion modules connected to the unit. If in the unit there is more than one module of the same type connected, a number will appear in the icon to differentiate them ;...
Page 307 CVM-B100 - CVM-B150 Configuration of DHCP activation/deactivation. (“7.10.4.1.- Configuration of DHCP activation/deactivation”) Configuration of the TCP parameters. (“7.10.4.2.- Configuration of the TCP parameters manually.”) Back, returns to the home screen of the expansion modules menu, figure 217 Main Menu, returns to the main menu,...
Page 308 CVM-B100 - CVM-B150 Main Menu, returns to the main menu, figure 25 7�10�4�2�- Configuration of the TCP parameters manually. Note: If DHCP is activated, you will not be able to modify the parameters on this screen. This is indicated by a * next to each value.
Page 309: 7�10�5�- Modbus Communications
CVM-B100 - CVM-B150 Main Menu, returns to the main menu, figure 25 7�10�5�- MODBUS COMMUNICATIONS The following functions are implemented for these variables: function 0x04: reading registers. function 0x10: Writing multiple registers. 7.10.5.1.- Configuration of DHCP activation/deactivation Table 160:Modbus memory map: Modbus TCP (Switch) communications module (Table 1)
Page 310: 8�- Software Update
 The update files, which can be found on the Circutor web site. Select the update files according to the model of the unit, CVM-B100 or CVM-B150.  A PC so as to update the files in the microSD card.
Page 311: 8�1�- Unit Software Update
CVM-B100 - CVM-B150 8.1.- UNIT SOFTWARE UPDATE. The update files depend on the model of the unit: Table 163:Display software update files. Model Display software update file firmware_cpu.bin CVM-B100 resources_CVM_B100.pbr firmware_cpu.bin CVM-B150 resources_CVM_B150.pbr Follow the steps below to update the unit software: 1�- Copy the 2 files,...
Page 312 CVM-B100 - CVM-B150 The updated information on the modules is displayed in the expansion modules section of the information menu, “5.5.3.- Expansion modules.” figure 222:expansion modules information screen� The update files are not deleted automatically from the microSD card. This is in case you want to add a new module afterwards and want it to be updated with the same version of the modules already installed.
Page 313: 9�- Technical Features
CVM-B100 - CVM-B150 9�- TeChNICAL feATUReS AC power supply ( CVM-B100-ITf, CVM-B150-ITf ) Rated voltage 100 ... 240 V ~ frequency 50 ... 60Hz CVM-B100 CVM-B150 Consumption max. 23.9 VA max. 29.4 VA Installation category CAT III 300 V DC Power supply...
Page 314 CVM-B100 - CVM-B150 (Continuation) Accuracy of measurements (in accordance with the IeC 61557-12 standard for PMD SD/SS) ��/5A ��/1A ��/0�250A Active energy measurement Class 0.5S Class 1 Class 1 (IEC 62053-22) Reactive energy measurement Class 1 Class 2 Class 2...
Page 315 This pollution degree hasn’t been tested by UL. Mechanical features CVM-B100 CVM-B150 Dimensions figure 223 (mm) figure 224 (mm) weight 500 gr 698 gr enclosure Self-extinguishing V0 plastic Attachment (DIN 43700) 92x92 panel 138x138 panel 103.5 98,7 figure 223: CVM-B100 dimensions� Instruction Manual...
Page 316 CVM-B100 - CVM-B150 8.25 figure 224:CVM-B150 dimensions� Standards Safety requirements for electrical equipment for measurement, control IEC 61010: 2010 and laboratory use electromagnetic compatibility (CeM)� Part 6-2: generic standards� Immu- UNE-EN 6100-6-2:2006 nity for industrial environments� electromagnetic compatibility (CeM)� Part 6-4: generic standards� emis- UNE-EN 6100-6-4:2007 sions standard for industrial environments�...
Page 317: 10�- Technical Features Of Expansion Modules
CVM-B100 - CVM-B150 10�- TeChNICAL feATUReS Of exPANSION MODULeS 10.1.- TRANSISTOR DIGITAL INPUTS/OUTPUTS general features Maximum power of the module Transistor digital outputs quantity Type Maximum voltage 48 V Maximum current 130 mA Maximum frequency 1 MHz Pulse width 3 ms...
Page 318: 10�2�- Relay Digital Inputs/Outputs
CVM-B100 - CVM-B150 10.2.- RELAY DIGITAL INPUTS/OUTPUTS general features Maximum power of the module Relay digital outputs quantity Maximum voltage, open contacts 250 V~ Maximum current Maximum switching power 750 VA electrical working life (250 VAC / 3A) cycles Mechanical working life...
Page 319: 10�3�- Digital Analogue Inputs/Outputs
CVM-B100 - CVM-B150 10.3.- DIGITAL ANALOGUE INPUTS/OUTPUTS general features Maximum power of the module Analogue outputs quantity Maximum internal voltage 12 V Linearity <1% DAC resolution 4096 dots Analogue outputs in current mode Nominal output range 0-20 mA or 4-20 mA (Programmable) 300 Ω...
Page 320: 10�4�- Modbus Tcp (Bridge) Communications
CVM-B100 - CVM-B150 10.4.- MODBUS TCP (Bridge) COMMUNICATIONS general features Maximum power of the module Communications : Modbus TCP Connector RJ-45 Protocol Modbus/TCP Baud rate Ethernet 10BT / 100BT Communications: RS-485 gateway RS-485 Protocol Modbus Peripheral number 1 ... 255...
Page 321: 10�5�- Lonworks Communications
CVM-B100 - CVM-B150 10.5.- LONWORKS COMMUNICATIONS general features Maximum power of the module 1.2 W Communications Protocol LonTalk environmental features Operating temperature -10ºC ... +50ºC Storage temperature -20ºC ... +80ºC Relative humidity (without condensation) 5 ... 95% Maximum altitude 2000 m...
Page 322: 10�6�- Profibus Communications
CVM-B100 - CVM-B150 10.6.- PROFIBUS COMMUNICATIONS general features Maximum power of the module Communications Connector Protocol Profibus Identifier Baud rate 19,2 kbs - 93,75 kbs - 187,5 kbs - 500 kbs - 1500 kbs - 3000 kbs - 6000 kbs - 12000 kbs...
Page 323: 10�7�- Mbus Communications
CVM-B100 - CVM-B150 10.7.- MBUS COMMUNICATIONS general features Maximum power of the module Communications Wired M-Bus Protocol Slave M-Bus compatible to EN 13757-2 and EN 13757-3 Baud rate 1200 - 2400 - 4800 - 9600 Primary address 1 ... 250...
Page 324: 10�8�- Data Storage, Datalogger
CVM-B100 - CVM-B150 10.8.- DATA STORAGE, DATALOGGER general features Maximum power of the module Communications : Modbus TCP Connector RJ-45 Protocol Modbus/TCP Baud rate Ethernet 10BT / 100BT environmental features Operating temperature -10ºC ... +50ºC Storage temperature -20ºC ... +80ºC Relative humidity (without condensation) 5 ...
Page 325: 10�9�- Modbus Tcp (Switch) Communications
CVM-B100 - CVM-B150 10.9.- MODBUS TCP (Switch) COMMUNICATIONS general features Maximum power of the module Communications : Modbus TCP Connector RJ-45 Protocol Modbus/TCP Baud rate Ethernet 10BT / 100BT environmental features Operating temperature -10ºC ... +50ºC Storage temperature -20ºC ... +80ºC Relative humidity (without condensation) 5 ...
Page 326 CVM-B100 - CVM-B150 89.5 figure 226: expansion module dimensions ( Protective cove version 2)� Instruction Manual...
Page 327: 11�- Maintenance And Technical Service
• CIRCUTOR accepts no liability due to the possible damage to the unit or other parts of the installation, nor will it cover any possible sanctions derived from a pos- sible failure, improper installation or “improper usage”...
Page 328: 13�- Ce Certificate
CVM-B100 - CVM-B150 13�- Ce CeRTIfICATe Instruction Manual...
Page 329 CVM-B100 - CVM-B150 Instruction Manual...
Page 330 CIRCUTOR, SA Vial Sant Jordi, s/n 08232 -Viladecavalls (Barcelona) Tel.: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.com central@circutor.com...
