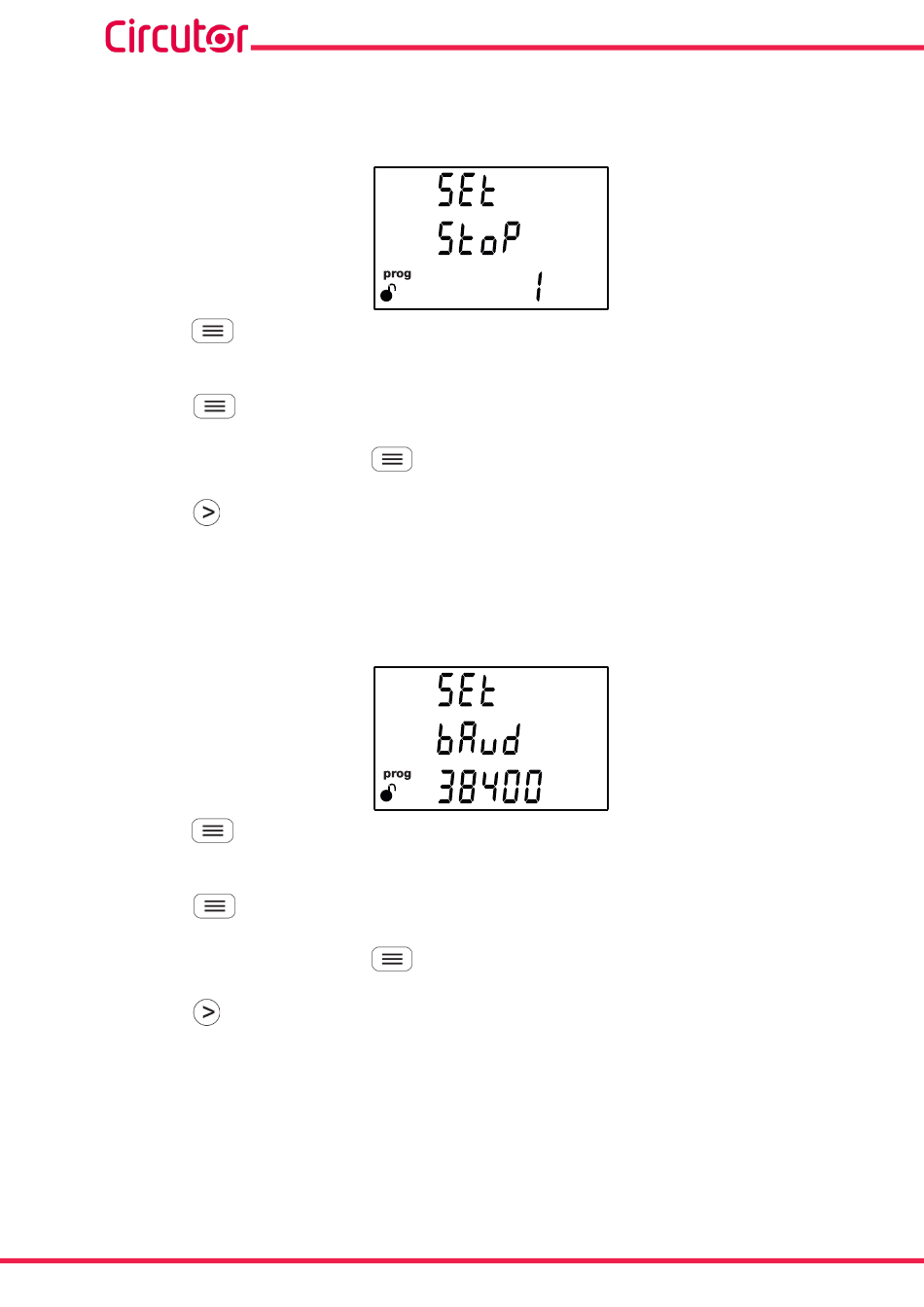

6�22�5�- MODBUS PROTOCOL : STOP BITS
The number of Stop bits of Modbus communications are programmed on this screen.
Press the
of the screen.
Press key
To validate the value, press the
Press key
6�22�6�- BACnet PROTOCOL : BAUD RATE
The baud rate of BACnet communications is programmed on this screen.
Press the
of the screen.
Press key
To validate the value, press the
Press key
78
key for 3 seconds to enter the edit mode. The prog icon will flash on the left
to browse the options: 1 or 2 bits
to access the next programming step.
key for 3 seconds to enter the edit mode. The prog icon will flash on the left
to browse the options: 9600, 19200 or 38400 bps.
to access the next programming step.
key for 3 seconds; the prog icon will stop flashing.
key for 3 seconds; the prog icon will stop flashing.
