Also displayed on these screens are:
 Maximum values
 Minimum values
 Maximum Demand
Harmonics
42

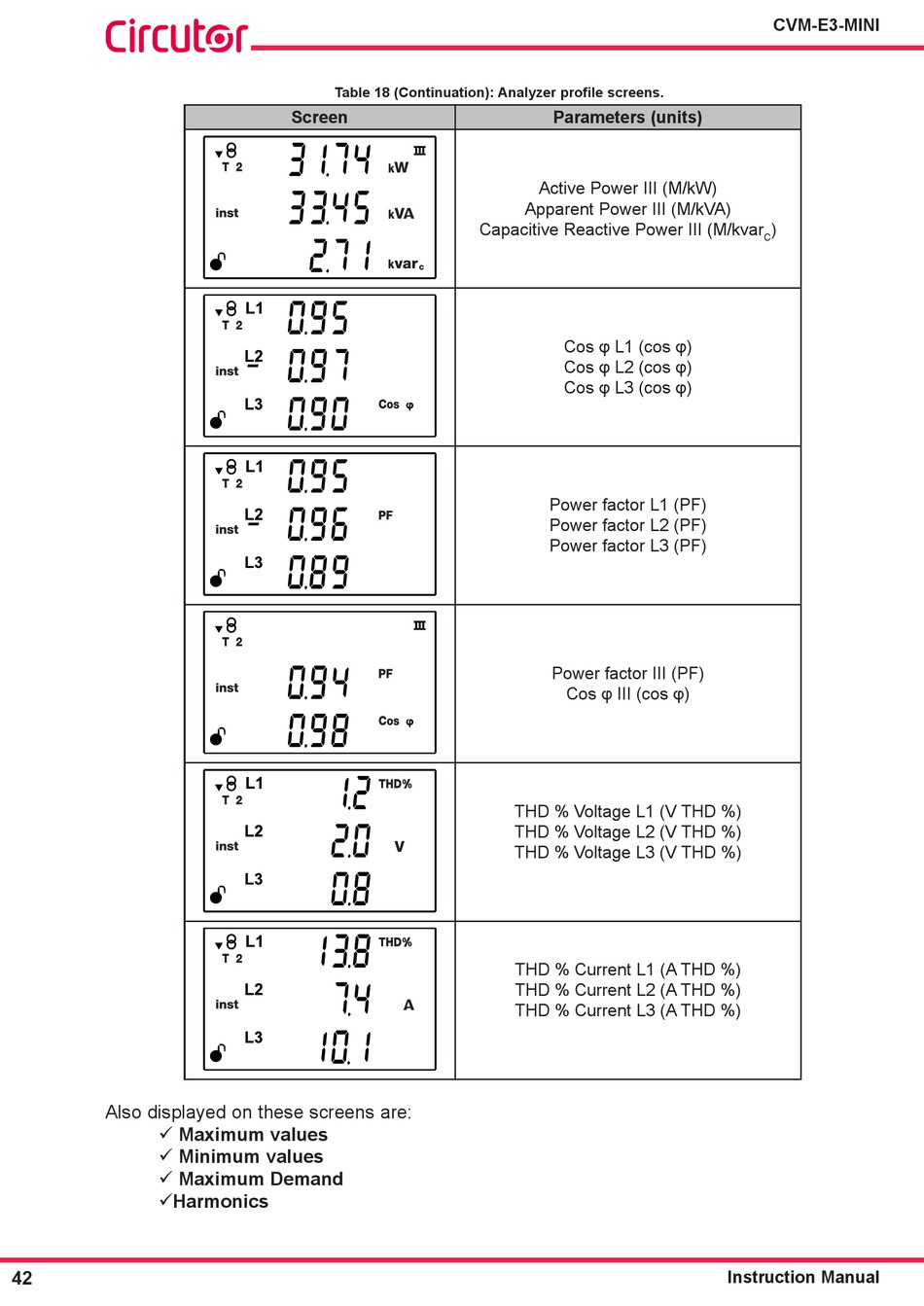

Table 18 (Continuation): Analyzer profile screens�
Screen Parameters (units)
Active Power III (M/kW)
Apparent Power III (M/kVA)
Capacitive Reactive Power III (M/kvar
Cos φ L1 (cos φ)
Cos φ L2 (cos φ)
Cos φ L3 (cos φ)
Power factor L1 (PF)
Power factor L2 (PF)
Power factor L3 (PF)
Power factor III (PF)
Cos φ III (cos φ)
THD % Voltage L1 (V THD %)
THD % Voltage L2 (V THD %)
THD % Voltage L3 (V THD %)
THD % Current L1 (A THD %)
THD % Current L2 (A THD %)
THD % Current L3 (A THD %)
