To validate the value, press the
If the value entered by the user is out of the range of programming values, the programmed
value will be deleted and the system will restore it to the last saved value.
Press key to access the next programming step.

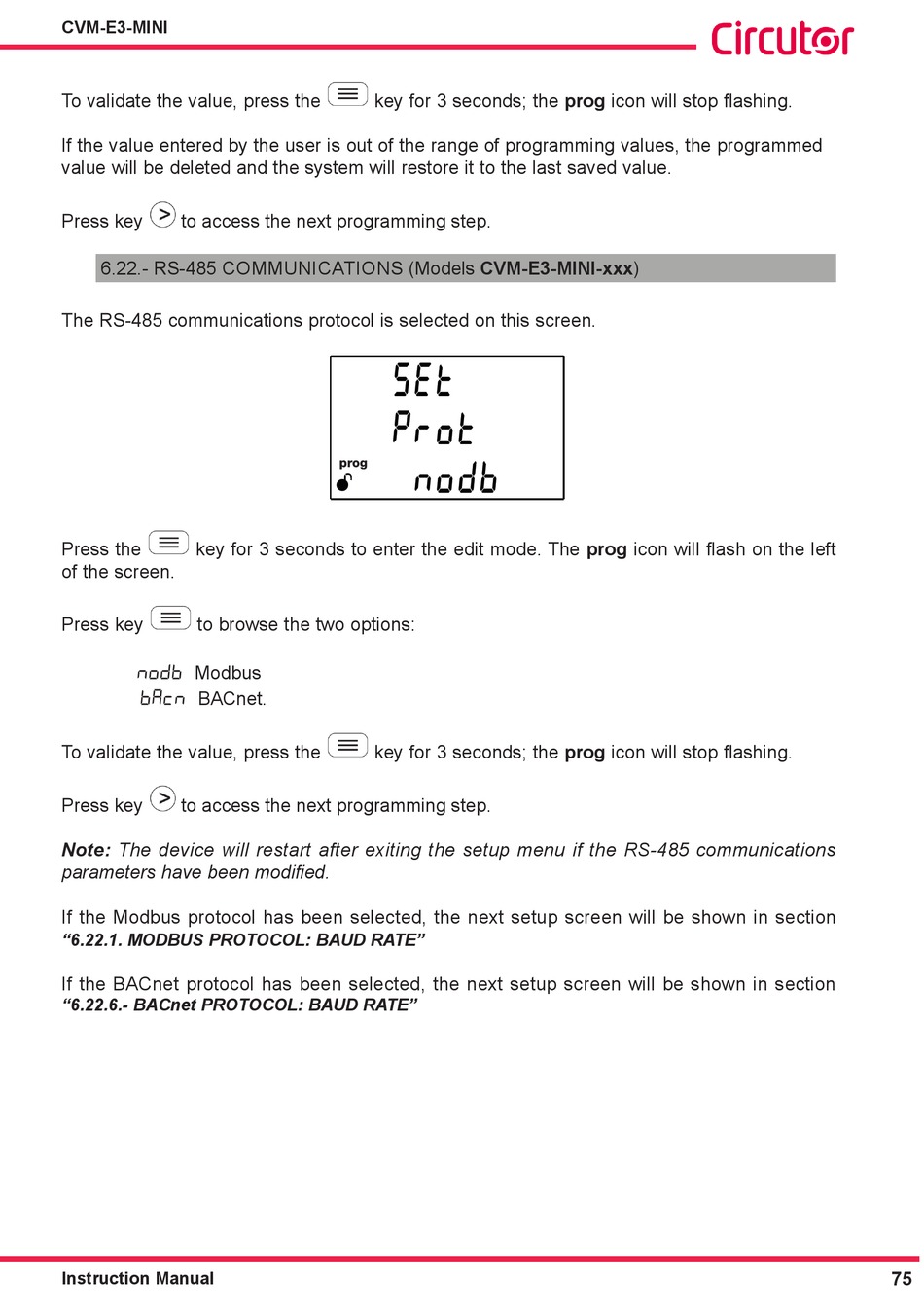

6.22.- RS-485 COMMUNICATIONS (Models CVM-E3-MINI-xxx)
The RS-485 communications protocol is selected on this screen.
Press the key for 3 seconds to enter the edit mode. The prog icon will flash on the left
of the screen.
Press key to browse the two options:
nodb
Modbus
bacn BACnet.
To validate the value, press the
Press key to access the next programming step.
Note: The device will restart after exiting the setup menu if the RS-485 communications
parameters have been modified.
If the Modbus protocol has been selected, the next setup screen will be shown in section
"6.22.1. MODBUS PROTOCOL: BAUD RATE"
If the BACnet protocol has been selected, the next setup screen will be shown in section
"6.22.6.- BACnet PROTOCOL: BAUD RATE"
