3�6�2�- MEASURING THREE-PHASE NETWORKS WITH A 4-WIRE CONNECTION: CVM-
E3-MINI-MC AND CVM-E3-MINI-MC-WiEth�
L1
L2
L3
CARGA / LOAD
N

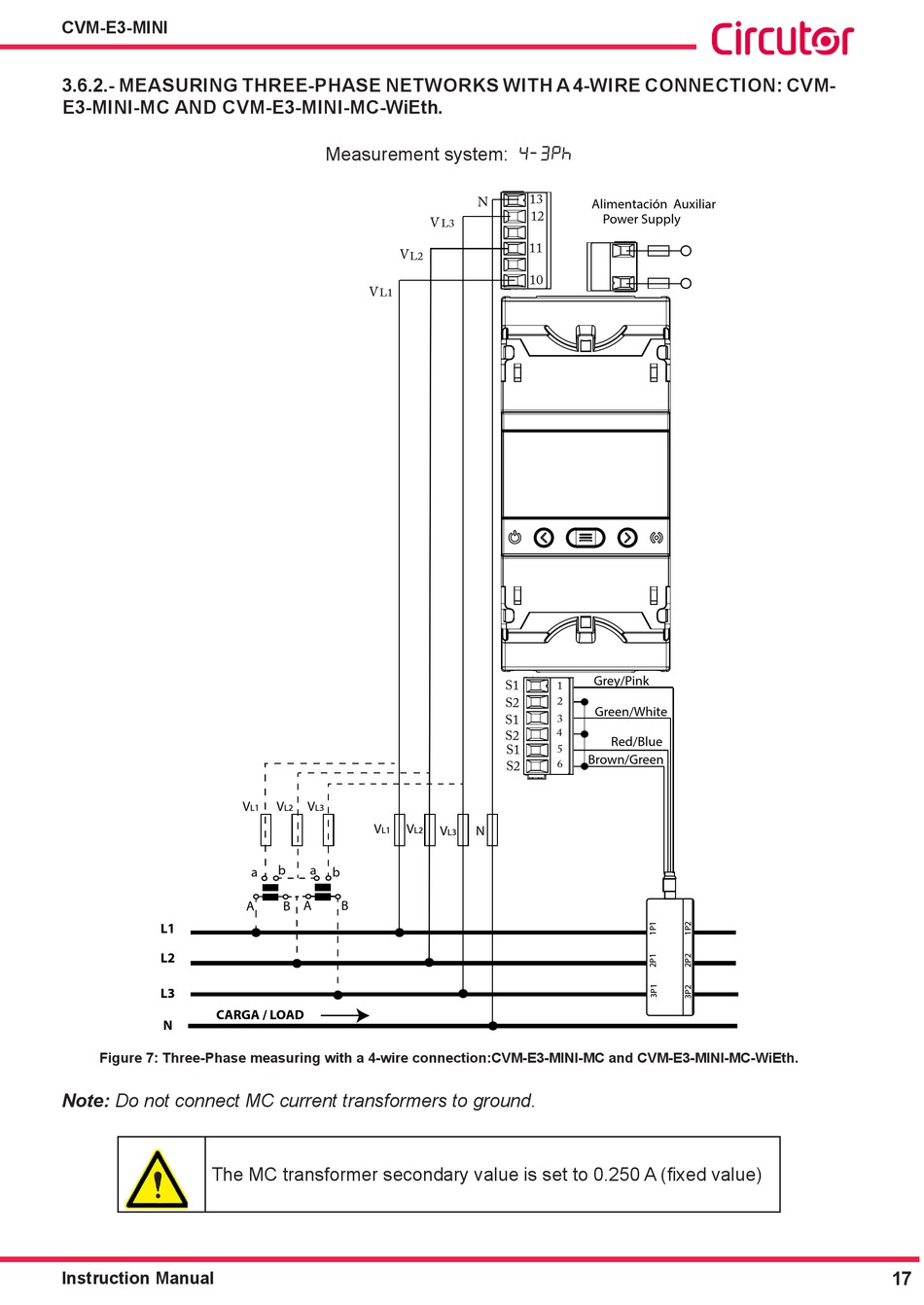

Figure 7: Three-Phase measuring with a 4-wire connection:CVM-E3-MINI-MC and CVM-E3-MINI-MC-WiEth�
Note: Do not connect MC current transformers to ground.
The MC transformer secondary value is set to 0.250 A (fixed value)
