CVM-E3-MINI
3�6�10�- MEASURING TWO-PHASE NETWORKS WITH A 3-WIRE CONNECTION : CVM-
E3-MINI-MC AND CVM-E3-MINI-MC-WiEth
L1
L2
N
CARGA / LOAD

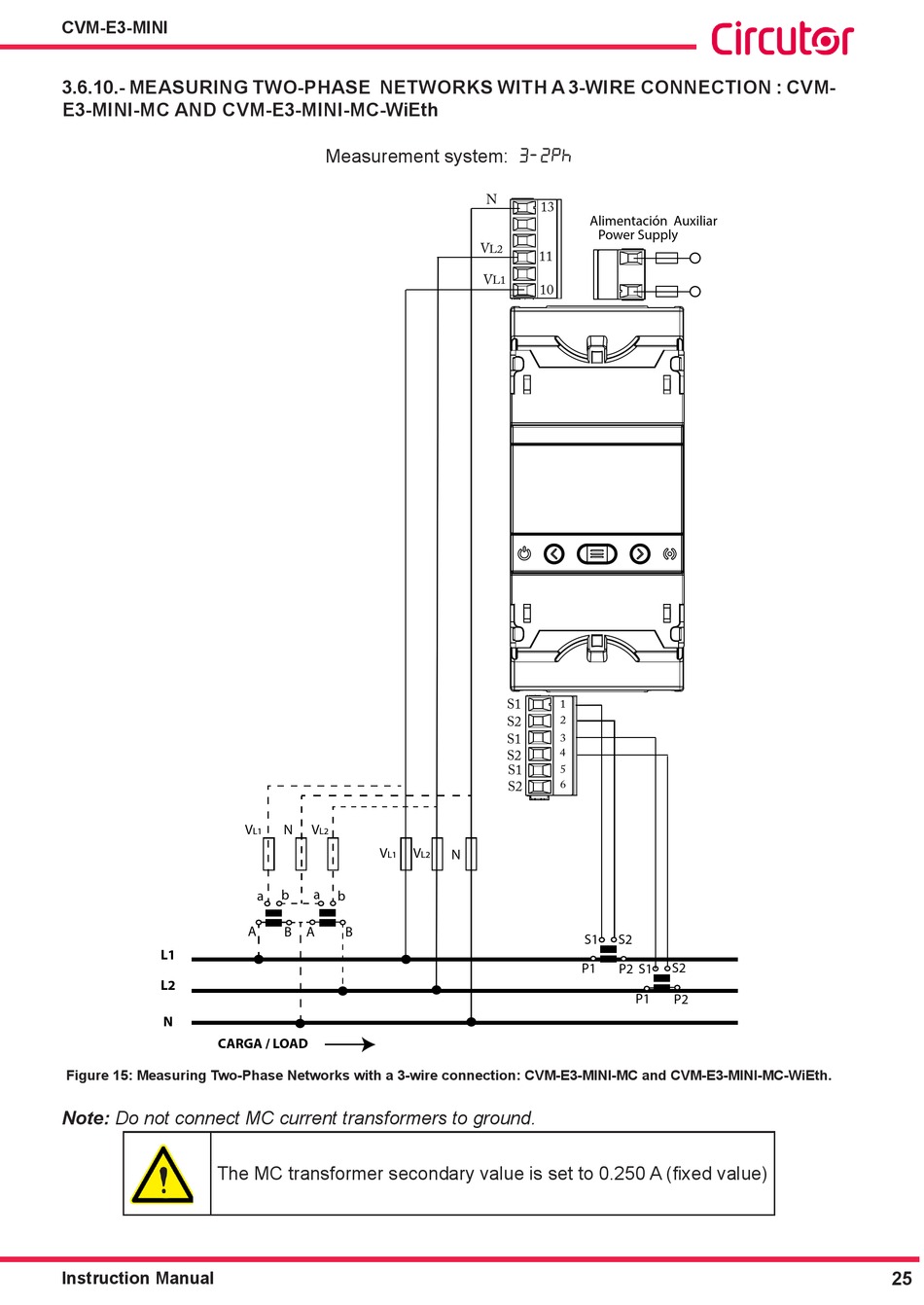

Figure 15: Measuring Two-Phase Networks with a 3-wire connection: CVM-E3-MINI-MC and CVM-E3-MINI-MC-WiEth�
Note: Do not connect MC current transformers to ground.
The MC transformer secondary value is set to 0.250 A (fixed value)
Instruction Manual
Measurement system:
V
N
V
L1
L2
V
V
L1
a
b
b
a
A
A
B
B
3-2Ph
N
13
Alimentación Auxiliar
V
L2
11
V
L1
10
S1
1
S2
2
S1
3
4
S2
S1
5
6
S2
N
L2
S1
P1
Power Supply
S2
P2 S1
S2
P1
P2
25
