CVM-E3-MINI
Press key to access the next programming step.

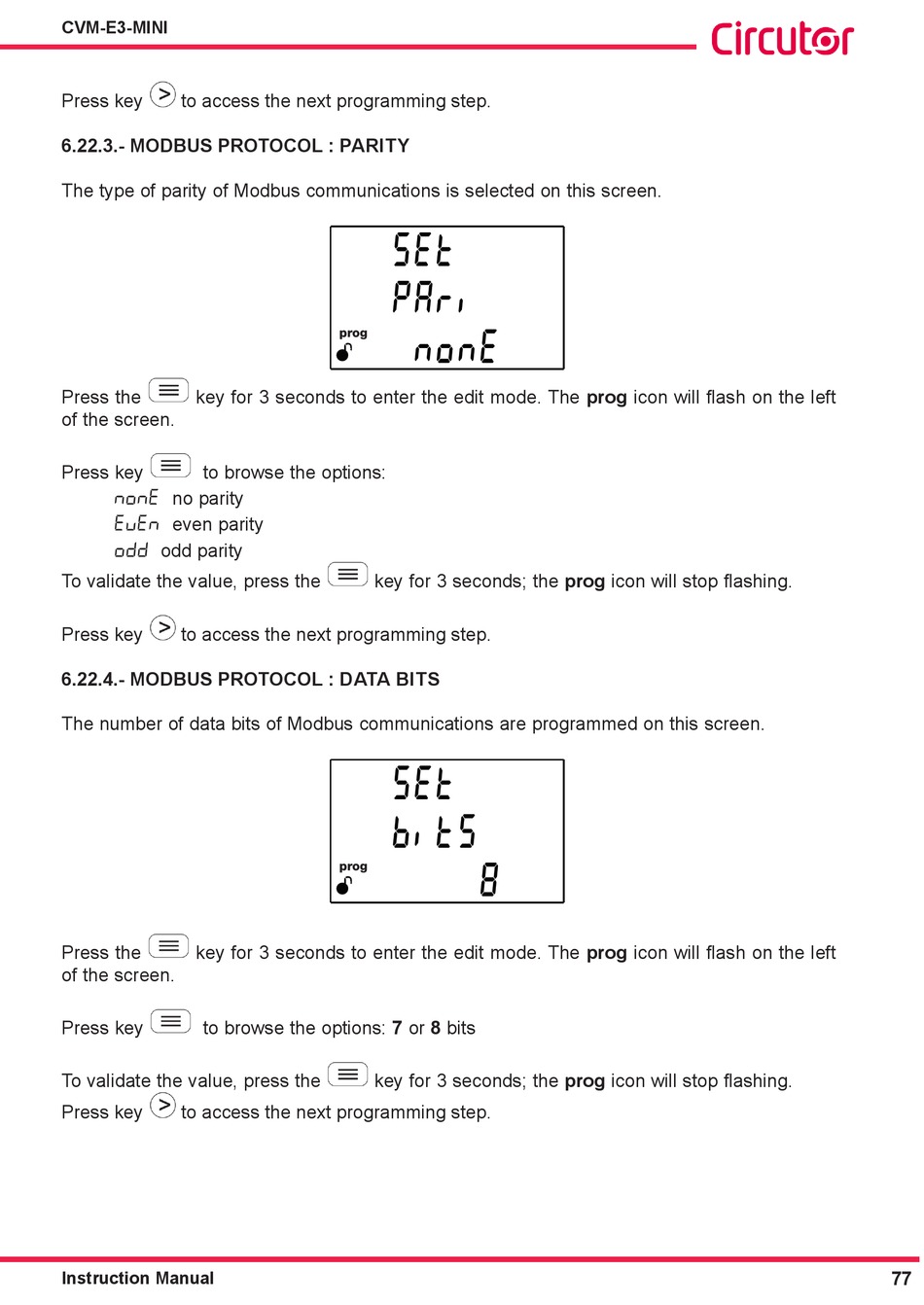

6�22�3�- MODBUS PROTOCOL : PARITY
The type of parity of Modbus communications is selected on this screen.
key for 3 seconds to enter the edit mode. The prog icon will flash on the left
Press the
of the screen.
Press key to browse the options:
nonE no parity
Even
even parity
odd
odd parity
To validate the value, press the
Press key to access the next programming step.
6�22�4�- MODBUS PROTOCOL : DATA BITS
The number of data bits of Modbus communications are programmed on this screen.
Press the key for 3 seconds to enter the edit mode. The prog icon will flash on the left
of the screen.
to browse the options: 7 or 8 bits
Press key
To validate the value, press the
Press key to access the next programming step.
Instruction Manual
key for 3 seconds; the prog icon will stop flashing.
key for 3 seconds; the prog icon will stop flashing.
77
