CVM-E3-MINI
When the desired value is shown on the screen, use the
cursor.
To validate the value, press the
If the value entered by the user is out of the range of programming values, the programmed
value will be deleted and the system will restore it to the last saved value.
Maximum programming value: 999.
Minimum programming value: 1.
Voltage ratio ≤ 1000.
Voltage ratio x Current ratio ≤ 300000.
Press key to access the next programming step.
6.3.- PRIMARY CURRENT
Note: Display visible on models: CVM-E3-MINI-ITF, CVM-E3-MINI-ITF-WiEth, CVM-E3-MINI-
MC and CVM-E3-MINI-MC-WiEth.

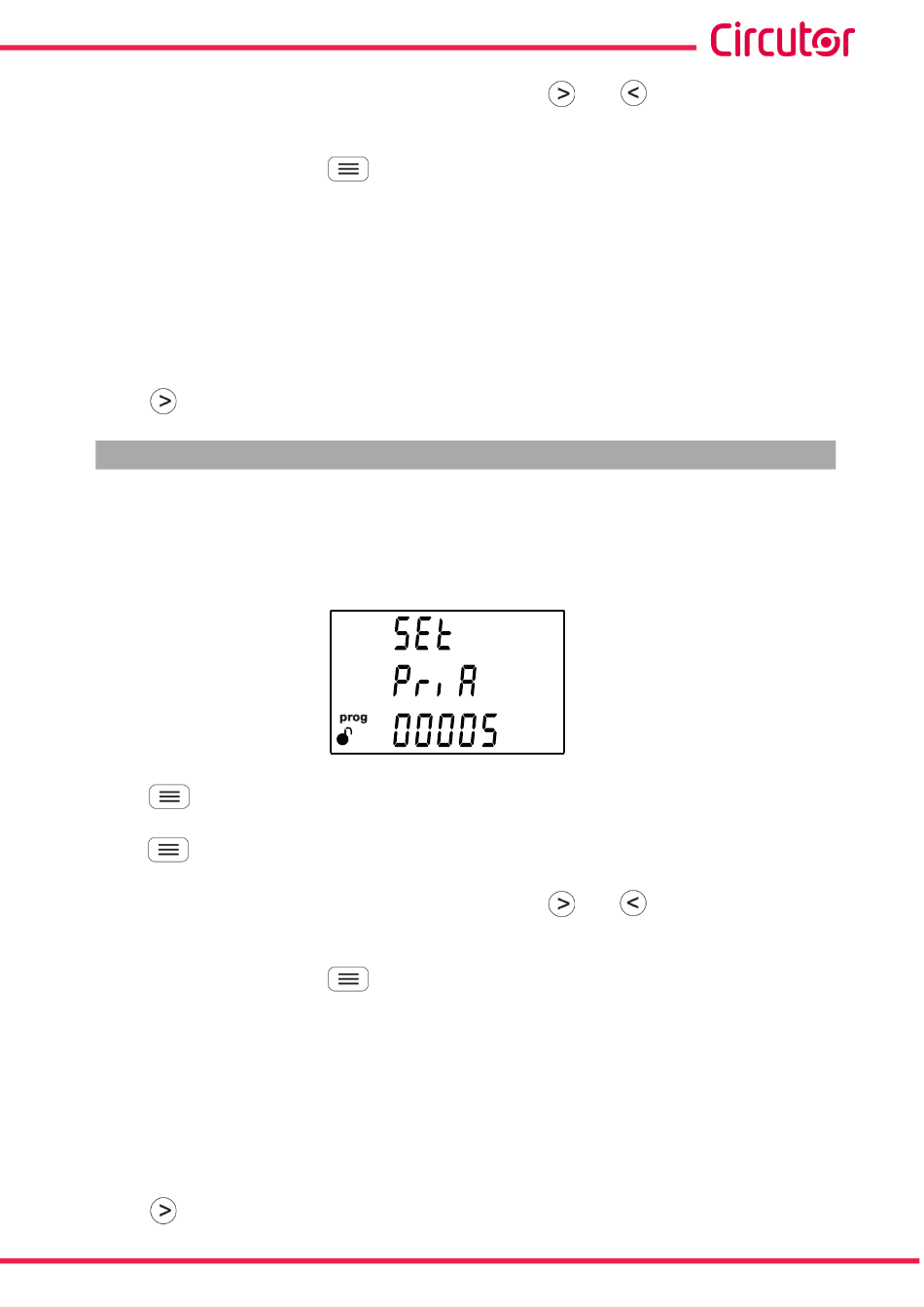

The current transformer primary is programmed on this screen.
Press the key for 3 seconds to enter the edit mode. The prog icon will flash on the left
of the screen.
Press the key to modify the value of the flashing digit.
When the desired value is shown on the screen, use the
cursor.
To validate the value, press the
If the value entered by the user is out of the range of programming values, the programmed
value will be deleted and the system will restore it to the last saved value.
Maximum programming value: 10000.
Minimum programming value: 1.
Voltage ratio x Current ratio ≤ 300000.
Note: The ratio is the relation between the primary and the secondary.
Press key to access the next programming step.
Instruction Manual
key for 3 seconds; the prog icon will stop flashing.
key for 3 seconds; the prog icon will stop flashing.
and keys to move the edit
and keys to move the edit
57
