CVM-E3-MINI
3.2.- INSTALLATION
The device must be installed on an electric panel or enclosure, attached to a DIN rail (IEC
60715).
The minimum recommended distance between rails for installing the CVM-E3-MINI device is
150 mm.
Terminals, opening covers or removing elements can expose parts that are haz-
ardous to the touch while the device is powered. Do not use the device until it is
fully installed.
The device must be connected to a power circuit that is protected with gl (IEC 269) or M type
fuses with a rating of 0.5 to 2 A. It must be fitted with a circuit breaker or equivalent device, in
order to be able to disconnect the device from the power supply network.
The power and voltage measuring circuit must be connected with cables that have a minimum
cross-section of 1mm
The secondary line of the current transformer will have a minimum cross-section of 2.5 mm
The temperature rating of insulation of wires connected to the device will be at minimum 62ºC.
3.3.- PANEL MOUNTING ACCESSORY (72 x 72 mm)
Note: The 72 x 72 mm panel mounting accessory is an accessory that is sold separately.
CIRCUTOR has a panel mounting accessory of the CVM-E3-MINI equipment so that it can be
installed on 72 x 72 mm panels.
shows the installation of the panel mounting accessory to the CVM-E3-MINI.
Figure 2
Disconnect all power supplies and measuring equipment from the device before
carrying out the installation of the panel mounting accessory.
Instruction Manual
.
2

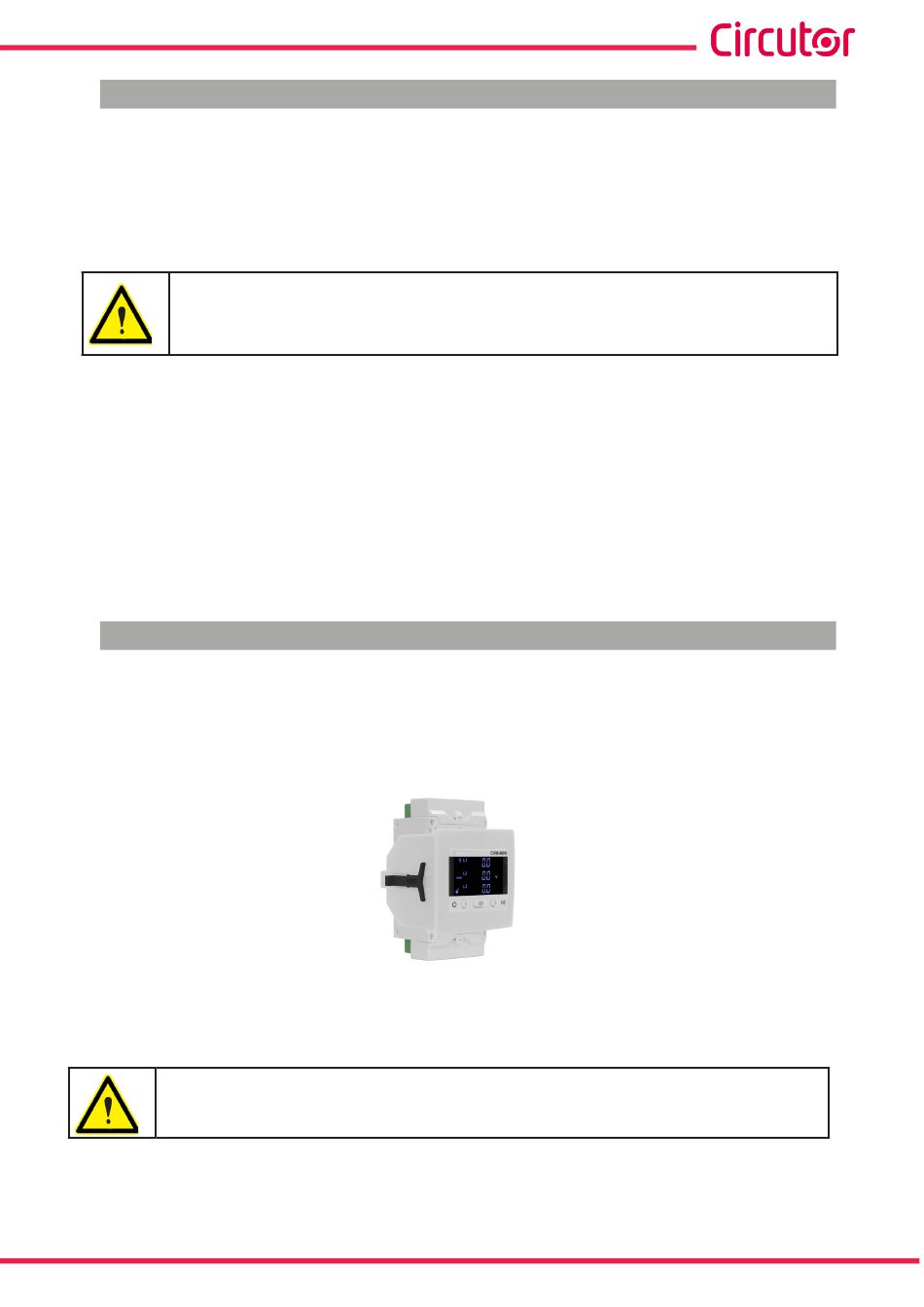

Figure 1: CVM-E3-MINI with panel mounting accessory�
.
