3�6�17�- MEASURING SINGLE-PHASE NETWORKS, PHASE TO NEUTRAL, WITH A
2-WIRE CONNECTION: CVM-E3-MINI-FLEX AND CVM-E3-MINI-FLEX-WiEth

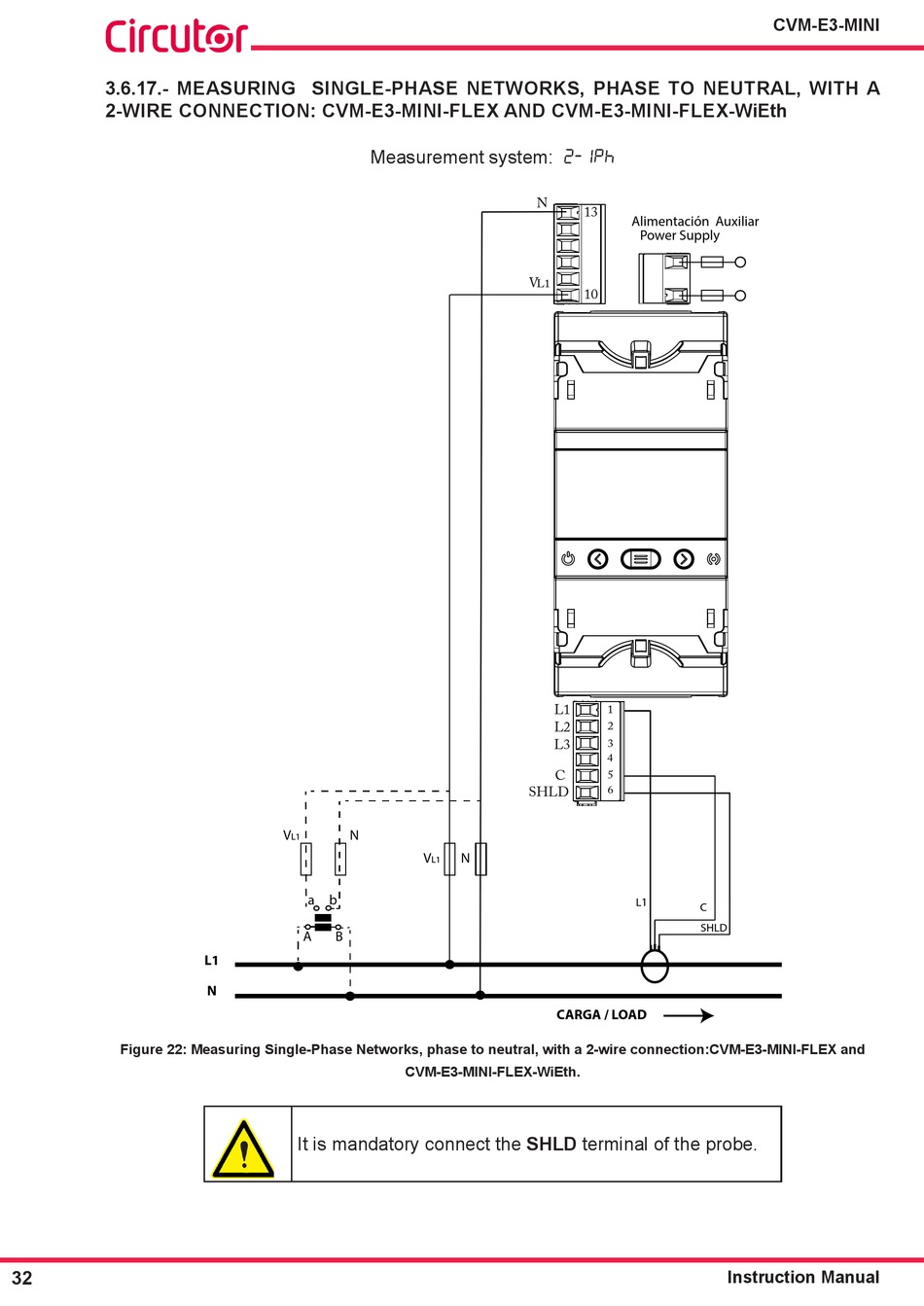

Figure 22: Measuring Single-Phase Networks, phase to neutral, with a 2-wire connection:CVM-E3-MINI-FLEX and
32
Measurement system:
V N
L1
a b
A B
L1
N
It is mandatory connect the SHLD terminal of the probe.
2-1Ph
N
V
L1
L1
L2
L3
C
SHLD
V N
L1
CARGA / LOAD
CVM-E3-MINI-FLEX-WiEth�
13
Alimentación Auxiliar
Power Supply
10
1
2
3
4
5
6
L1
C
SHLD
Instruction Manual
CVM-E3-MINI
