3�6�13�- MEASURING SINGLE-PHASE NETWORKS, PHASE TO PHASE, WITH A 2-WIRE

CONNECTION: CVM-E3-MINI-MC AND CVM-E3-MINI-MC-WiEth

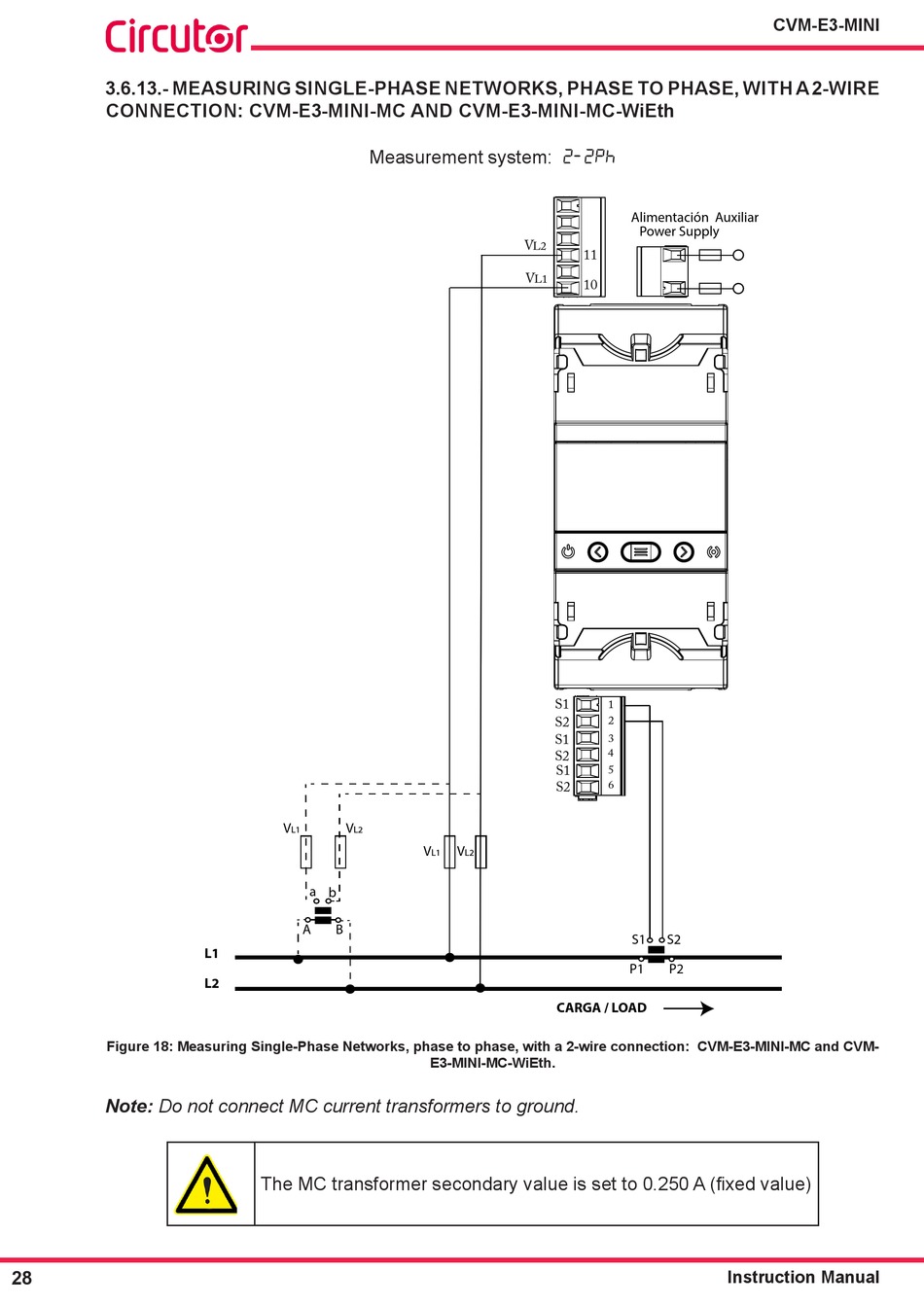

Figure 18: Measuring Single-Phase Networks, phase to phase, with a 2-wire connection: CVM-E3-MINI-MC and CVM-
Note: Do not connect MC current transformers to ground.
28
Measurement system:
V V
L1 L2
a b
A B
L1
L2
The MC transformer secondary value is set to 0.250 A (fixed value)
2-2Ph
V
L2
11
V
L1
10
S1
S2
S1
S2
S1
S2
V V
L1 L2
CARGA / LOAD
E3-MINI-MC-WiEth�
CVM-E3-MINI
Alimentación Auxiliar
Power Supply
1
2
3
4
5
6
S1 S2
P1 P2
