Introduction
Slot 1 is dedicatied to two 3U Chassis Managment Modules (CMMs-Intel® NetStructure™
ZT7102).
Slots 2 and 21 are dedicated to 6U PICMG* 2.16-compliant Ethernet switches (fabric boards).Slots
3 through 18 are PICMG 2.16-compliant node slots, each supporting a 33 MHz, 32/64-bit
CompactPCI* bus interface. Slots 19 and 20 are PICMG 2.16-compliant node slots without
CompactPCI interfaces.
Slots 3 through 8 and 13 through 18 have H.110 compliant telephony bus.
All slots support IEEE 1101.11-style, 80 mm deep transition cards in the rear-panel I/O section
directly behind the midplane. Each CompactPCI bus, each fabric slot, and the pair of PCI-less slots
can be independantly configured for 3.3 V or 5 V V(I/O) operation (see
O)" on page

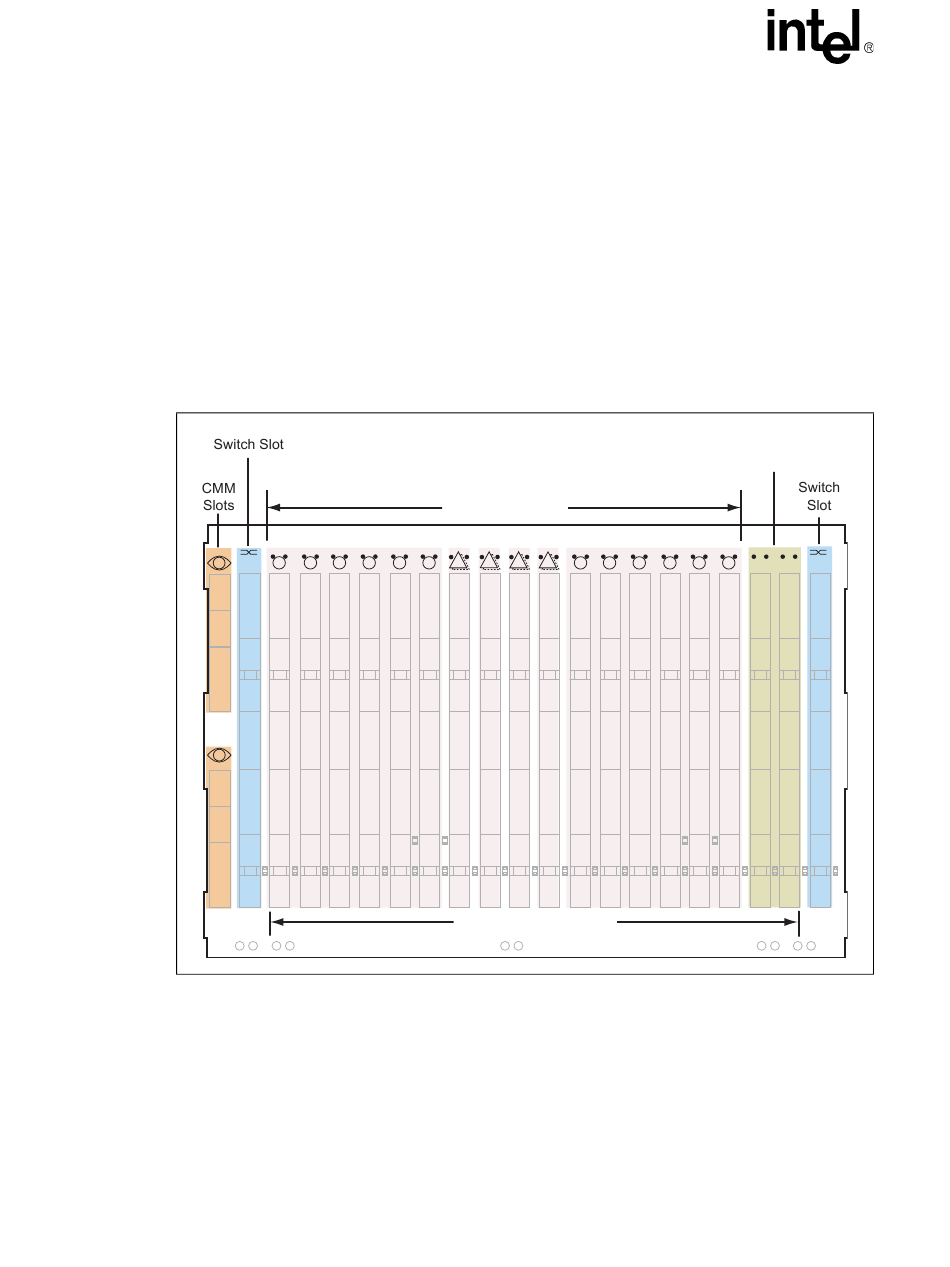

Figure 3. ZT 5085 Midplane Slot Assignments (Front)
1A
1B
1.4
Configuration Options
The ZT 5085 can accommodate multiple configurations. Refer to the following illustrations for
examples.
12
29).
2
3
4
5
6
7
CompactPCI Slots
8
13
14
9
10
11
12
PICMG 2.16 Node Slots
Section 2.4.3, "Setting V(I/
PCI-Less
Node Slots
18
19
20
15
16
17
