Introduction
•
Highly Flexible - Multiple midplane configuration options
— 16 node slots support 64-bit/33 MHz PCI operation
— Two node slots with no PCI connection
— Two CompactPCI bus segments with H.110 support
— 21 rear-panel I/O slots (18 node slots, two fabric slots, and two 3U CMM slots)
•
Highly Manageable - IPMI-based redundant Chassis Management Modules (optional)
— Unique star topology for management buses increases reliability and security
•
Highly Scalable - Flexibility to scale processors, I/O boards, power and cooling
•
Standards and Compatibility - Interoperable with processor boards, peripherals, switches
and sub-components from multiple manufacturers
— 6U PICMG* 2.16-compliant midplane
— Designed for NEBS Level 3 and FCC Class B
— PICMG* 2.9 IPMI-based management

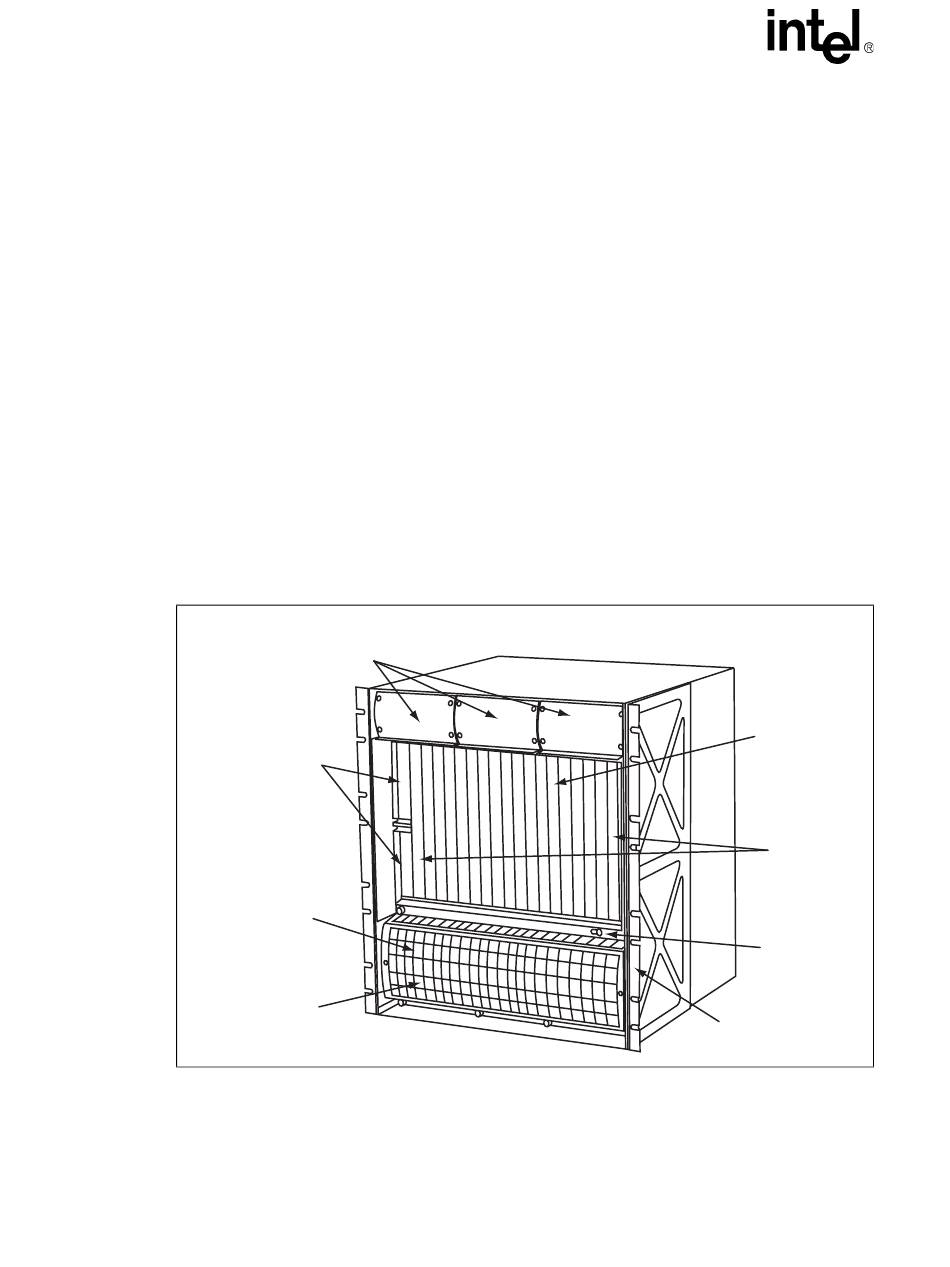

Figure 1. Features (Front)
Redundant
Chassis
Management
Modules
Removable
Grill with Filter
Eight 3U
Power Supplys
(behind grill)
10
—N+1 hot-swappable fan trays for cooling
—N+N hot-swappable, load-sharing 250 W AC or DC power supplies
—N+N power input
Three Removable
N+1 Fan Trays
18 Node
Slots
Redundant
Ethernet
Switches
ESD Ground
Jack
Mounting
Flange
