Getting Started
Required Additional Components:
•
Air management boards for front slots (required in otherwise unpopulated slots for correct
operation)
•
Filler panels for rear slots (required in otherwise unpopulated rear panel slots for correct
operation).
•
Four AC Power cords for AC systems

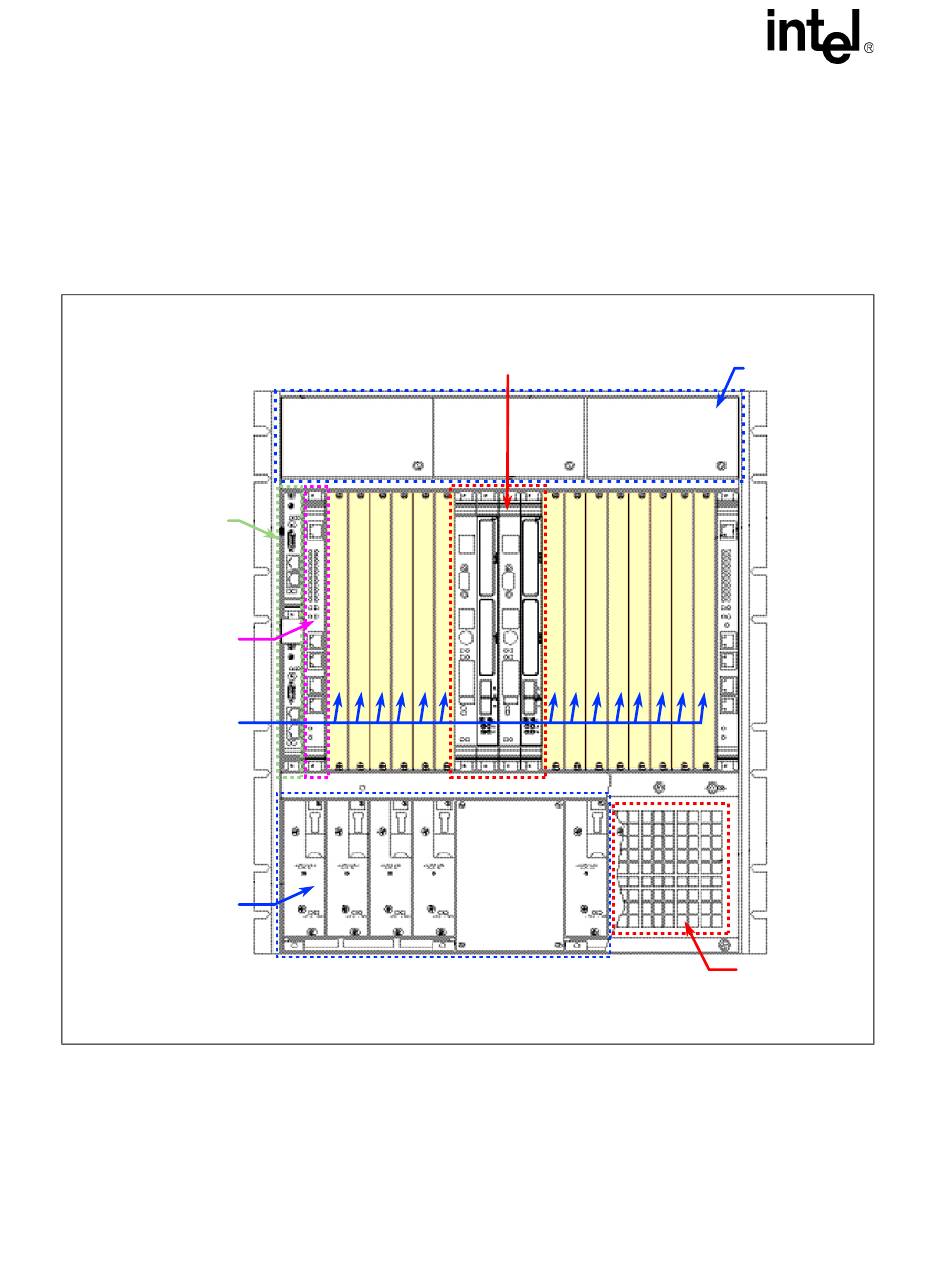

Figure 9. ZT 5085 Example System (front)
Chassis
Management
Module
(Slots 1A and 1B)
Ethernet Switch
(Slots 2 and 21)
Peripheral
Boards or
Air
Management
Boards
(Slots 3-8,
18-20)
250W AC or DC
Power Supplies
(8 places)
22
Redundant Hosts,
Peripheral Boards,
Air Management Boards
(Slots 9, 10, 11, and 12)
Fan Trays
(3 places)
Intake Grill
with Filter
B2129-01
Technical Product Specification
