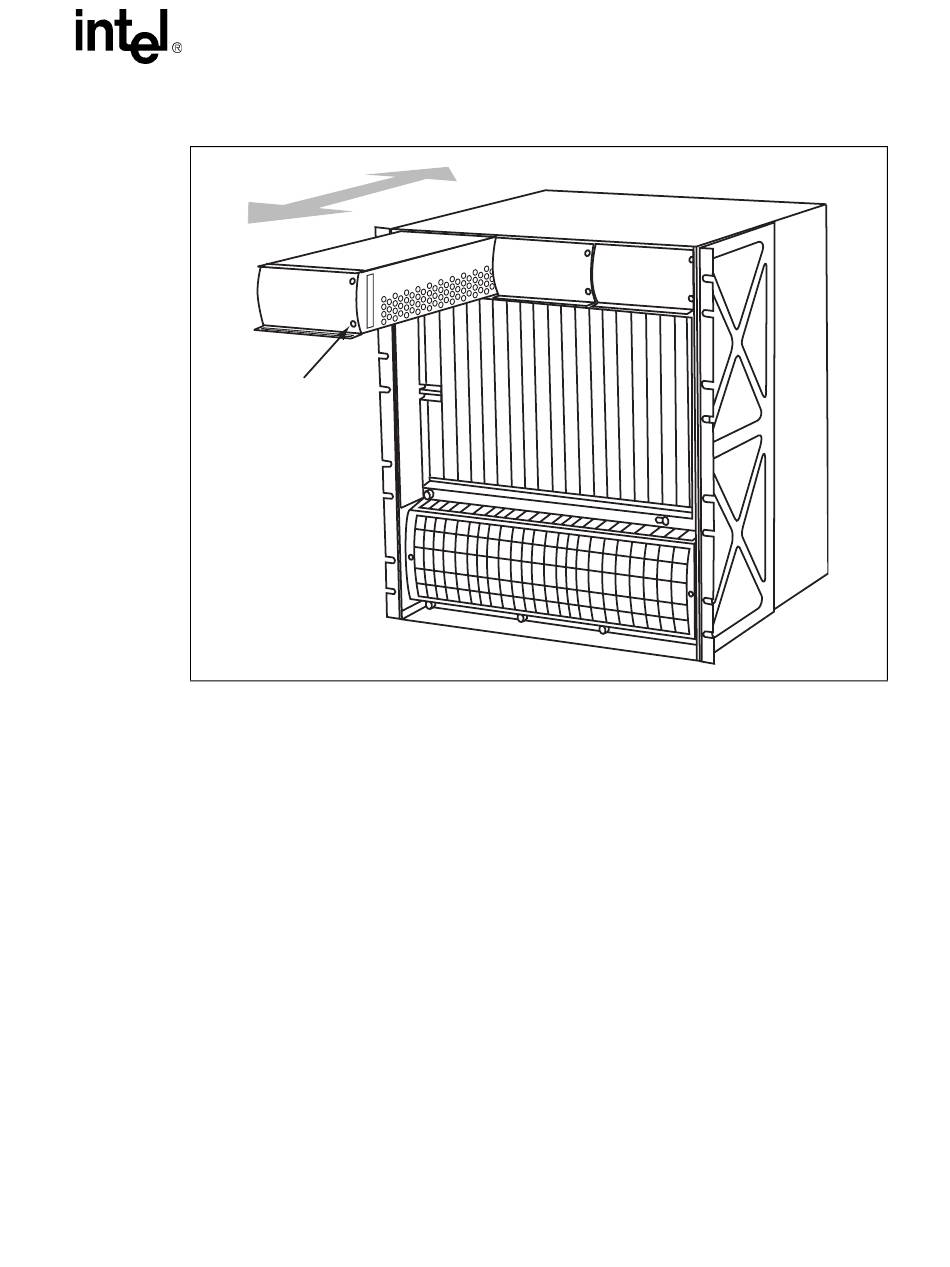

Figure 19. Fan Tray Installation/Removal
3.4.2
Installing a Fan Tray
1. A 1/8" flat-head screwdriver is required to install a fan tray.
2. System power does not need to be turned off to install a fan tray.
3. Select an empty fan bay at the top of the enclosure.
4. Align the fan tray with the guides in the bay. Orient the fan tray with the handle at the bottom.
5. Slide the fan tray into the fan bay.
6. Press the fan tray in firmly to seat its connector.
7. Turn the latch clockwise to lock the fan tray into place. Do not over tighten the latch.
Technical Product Specification
Screw
Latch
Field Replaceable Units
