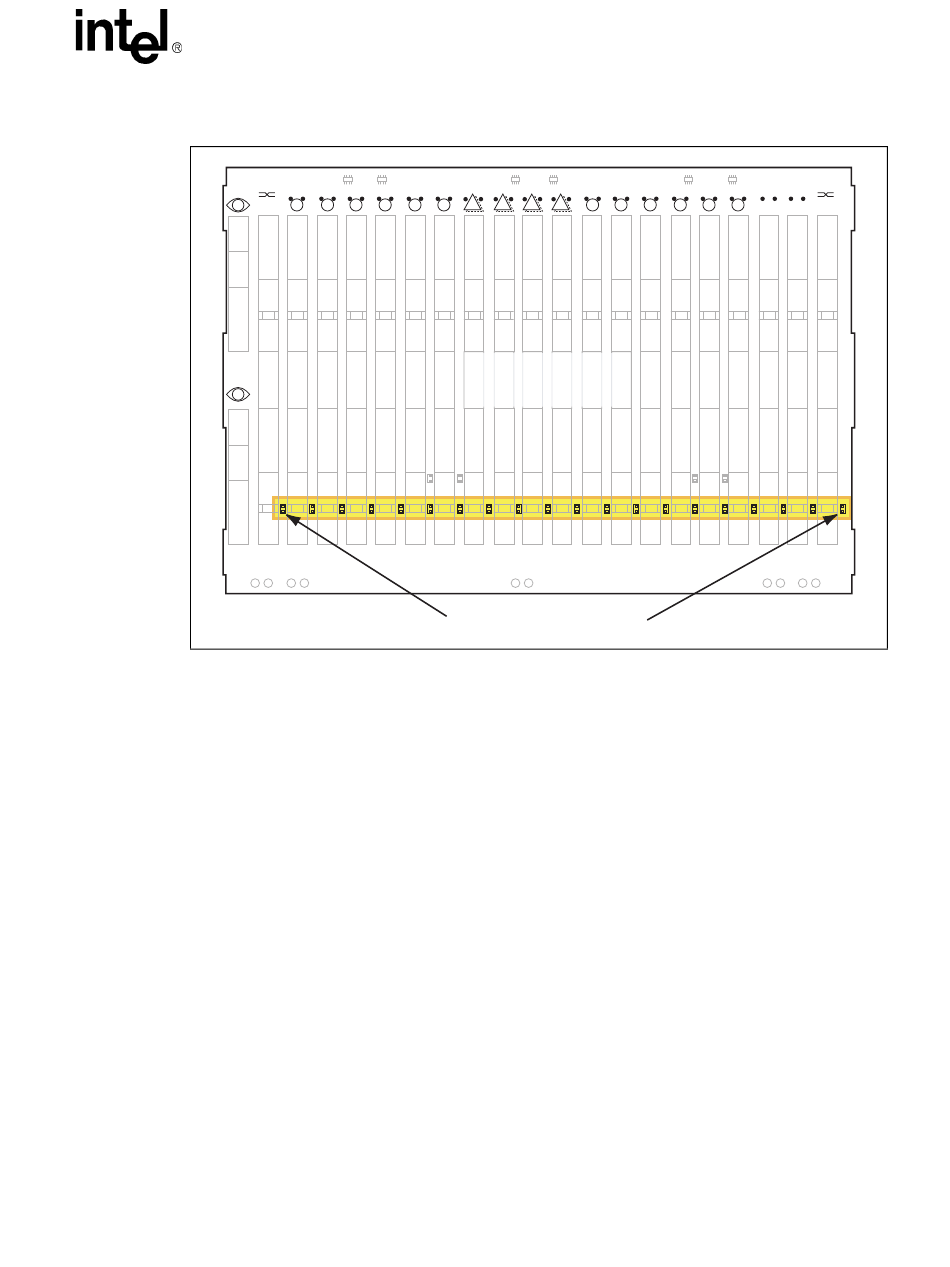

Figure 13. ZT 5085 BD_SEL# Jumper Locations
1A
1B
It is not considered a valid configuration to have CMM and BD_SEL# jumpers installed
simultaneously. This configuration may cause software to behave incorrectly.
2.4.2

Slot Assignments

The ZT 5085's midplane supports geographic addressing; each slot is individually addressed to
match its slot number.
The midplane is fully hot swap compliant and buses individual clocks from the multi-purpose slots
(slots 9, 10, 11, and 12) to each of the peripheral slots (slots 3-8 and 13-18). Refer to the
CompactPCI Specification, PICMG 2.0, R3.0 for additional information on slot addressing and
signal assignment. See
Note: Removing all CMM's from a running system may cause all boards to reset or shut down.
2.4.3

Setting V(I/O)

The ZT 5085 midplane provides six independent V(I/O) planes, one for each of the four
CompactPCI segments and one for each of the two fabric slots. Each V(I/O) plane can
independently be strapped for either 3.3 V or 5 V V(I/O). The ZT 5085 chassis default V(I/O)
setting is 5 V.
Table 1
lists the slot capabilities for the different V(I/O) settings.
Technical Product Specification
2
3
4
5
6
7
8
Appendix C, "Data Sheet Reference"
9
10
11
12
13
14
Midplane Front
J1 - J20 BD_SEL# Jumpers
for document ordering information.
