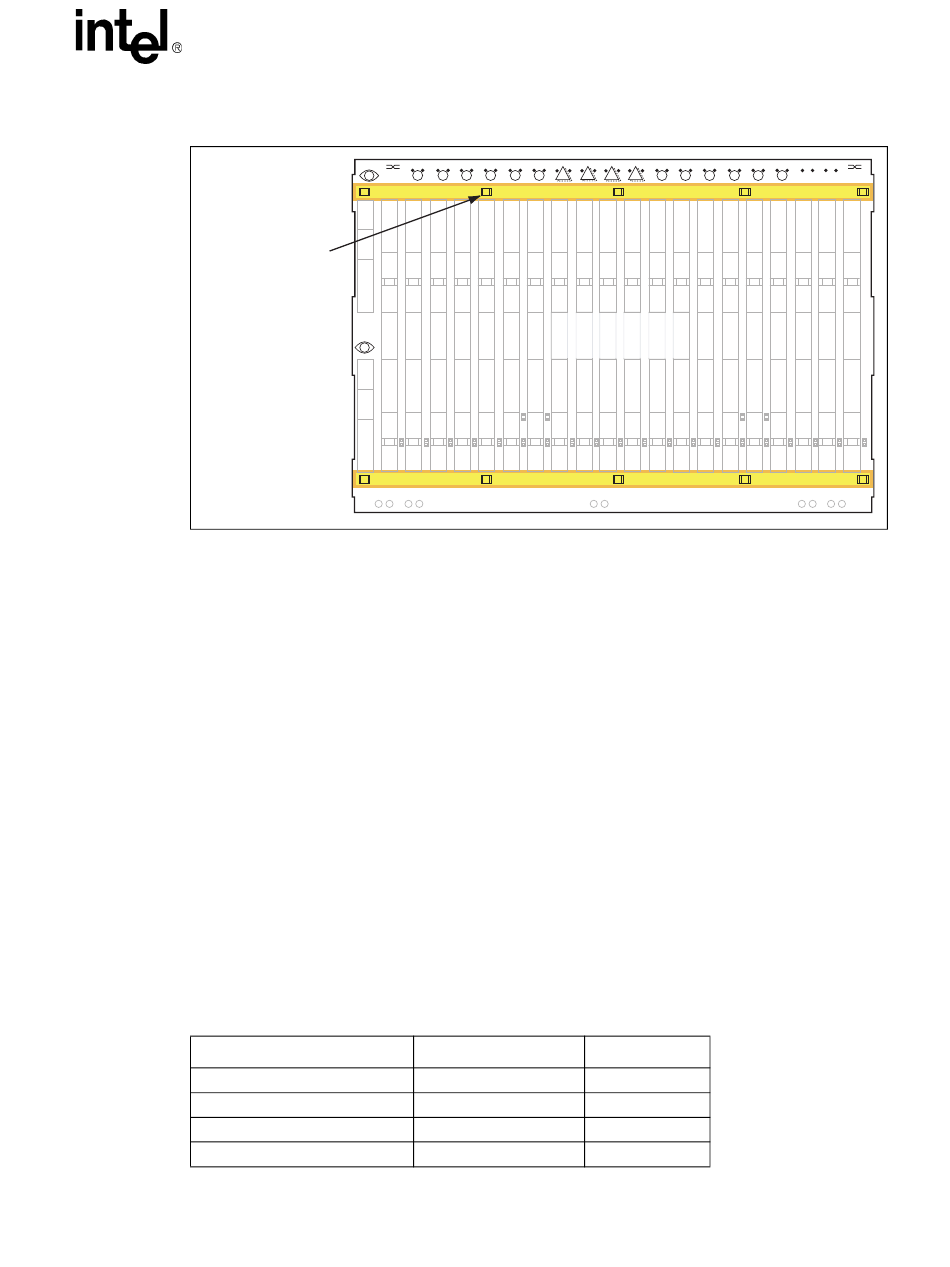

Figure 31. ZT 5085 Logic Ground Isolation Capacitor Locations
Ground Strapping
Locations (10 places)
A.3.4
Sensors and Thresholds
The ZT 5085 incorporates sensors to measure temperatures and voltages throughout the midplane,
power plane, and fan trays. These sensors are addressed on the CMMs' chassis sensor bus using
IPMI. A Sensor Data Record (SDR) file is maintained on the ZT 7102s within the chassis. SDR
files maintain the values to indicate minor, major and critical thresholds related to these sensors.
An example to read the current value of the temperature sensor for location.
The command:
cmmget –l chassis –d listtargets
will show a list of available sensors for a particular location. If a sensor is threshold based, issue the
command
to get a list of supported thresholds for that sensor.
Please refer to the Intel® NetStructure™ ZT 7102 Chassis Management Module Technical Product
Specification for further instructions on how to obtain information from chassis sensors.
Table 15
Table 15. Sensor Default Thresholds (Sheet 1 of 3)
Temp Sensor 1-6
Exhaust Temp
Technical Product Specification
1A
2
3
C1
1B
C15
cmmget –l chassis –t [sensor name] –d thresholdsall
lists the default thresholds for sensors in the ZT 5085 chassis.
Sensor:
Upper Critical:
Upper Non-Critical:
Lower Non-Critical:
Lower Critical
4
5
6
7
8
9
10
11
C2
Midplane Front
C16
Threshold:
Value (Default)
70.000
60.000
5.000
0.000
Specifications
12
13
14
15
16
17
18
19
C3
C4
C17
C18
20
21
C5
C19
67
