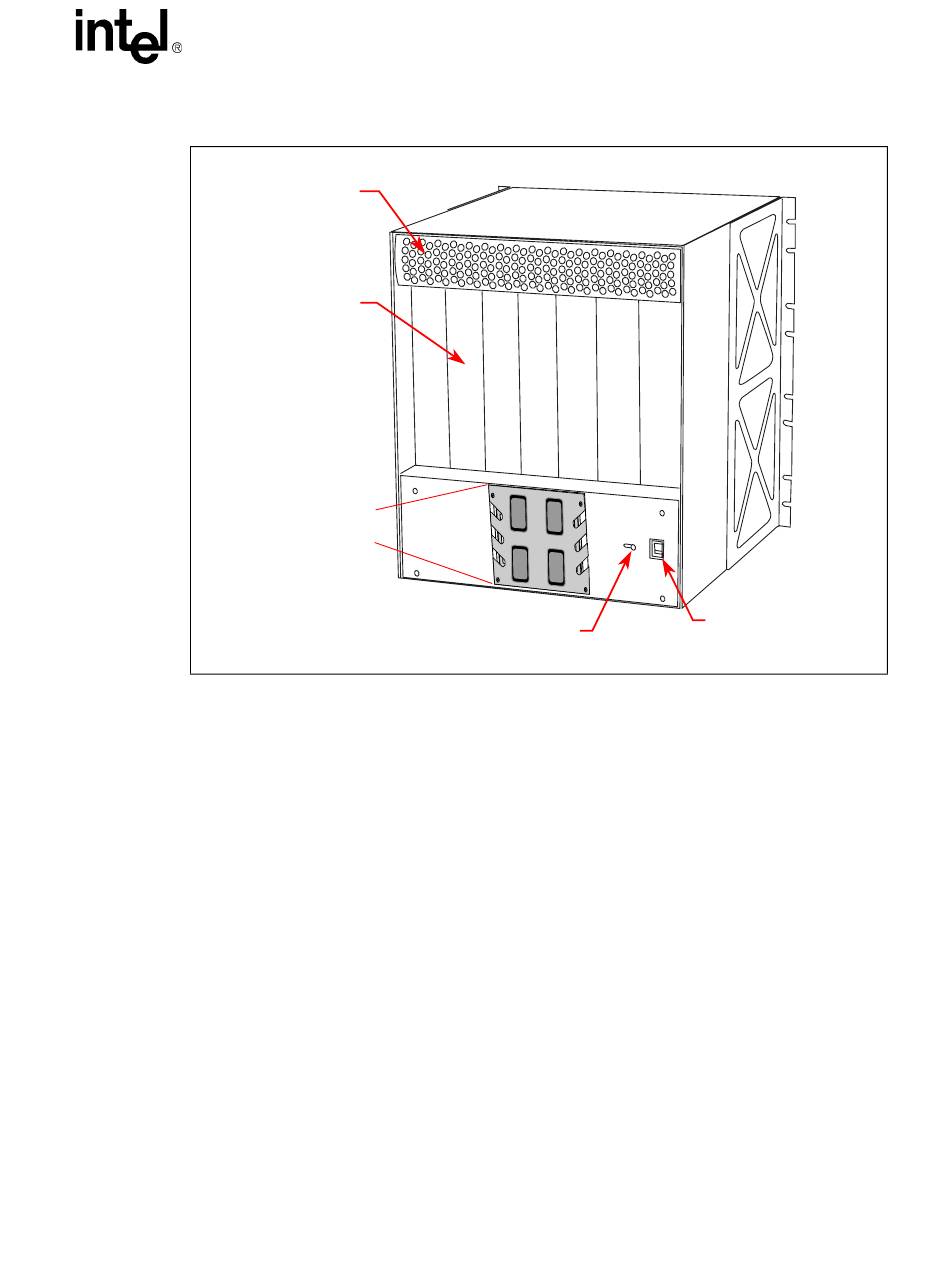

Figure 2. Features (Rear)
Cooling System
21 Rear Panel
1.3

Standard Features

The ZT 5085 is a basic platform building block, designed to support PICMG* 2.16-compliant
processor boards, switches, and peripherals. The platform consists of:
•
Rugged 12U chassis, designed for NEBS Level 3
•
21-slot PICMG 2.16-compliant midplane (two 6U fabric slots, 18 6U node slots, and two 3U
management slots)
•
Two redundant IPMI-based Chassis Management Modules
•
Eight N+N Redundant, load-sharing 250 W AC or 350 W DC 47-pin connector modular
power supplies
•
Three hot swappable fan trays with three blowers each (nine blowers total)
•
Card cage supports standard CompactPCI* keying
1.3.1

Midplane Slot Assignments

The ZT 5085 midplane features 21 6U slots.
Technical Product Specification
Exhaust
I/O Slots
Power Input
Cover
ESD Ground Jack
Introduction
Power Standby
Switch
B2729-02
