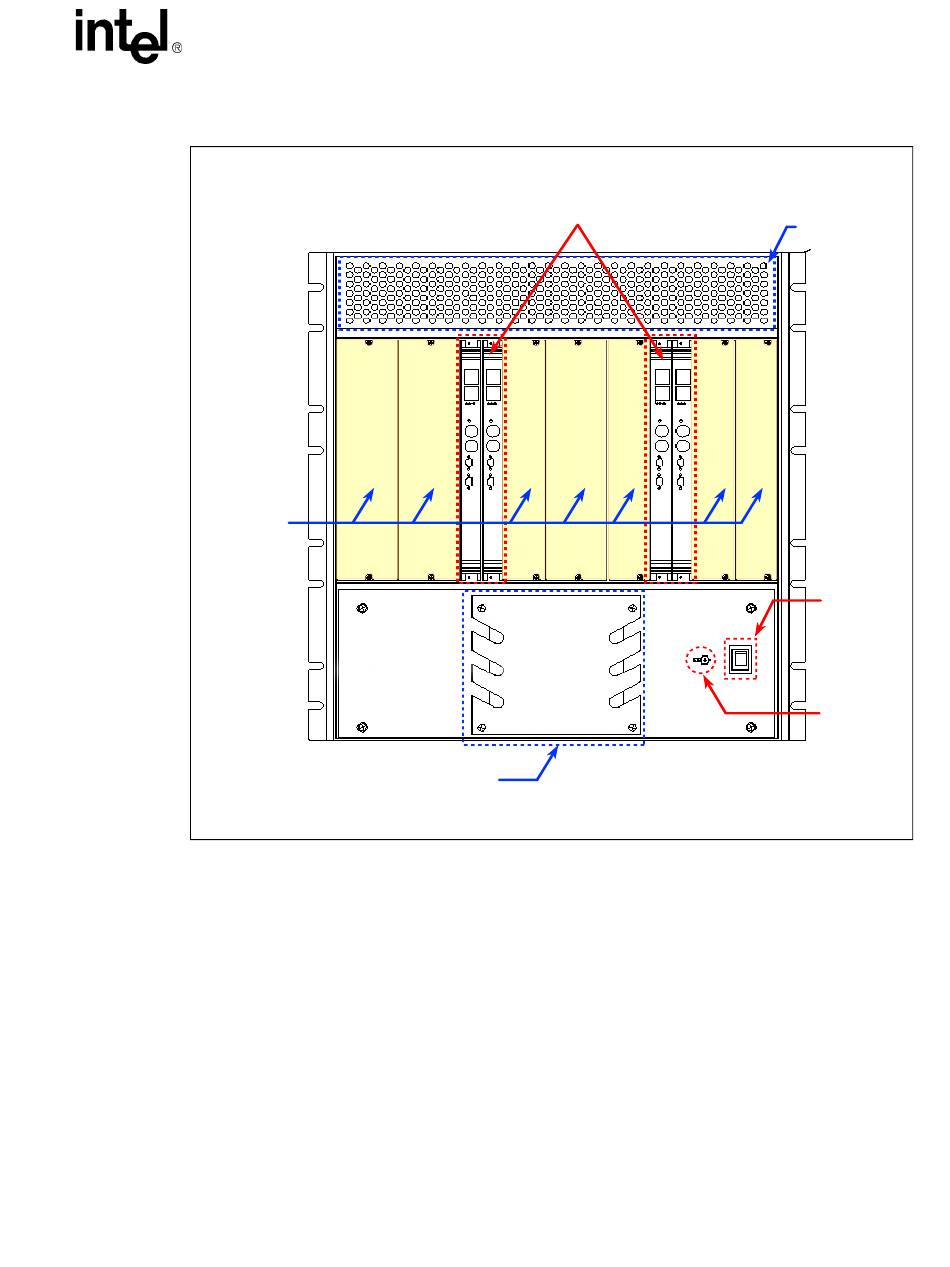

Figure 10. ZT 5085 Example System (Rear)
Filler Panels
in all Empty
2.3

Installing the System

It is mandatory that all unused rear slots are filled with blank filler panels and all unused front slots
be filled with air management blades. Empty power supply slots and CMM slots should be covered
with 3U filler panels. These are needed to ensure proper chassis cooling and to maintain
compliance with mandatory U.S. and international electromagnetic regulatory standards.
Ensure the blank filler panels and air management blades include EMI gaskets and are compatible
with CompactPCI* industry standard. See the Intel
Compatibility Report for a list of compatible blank filler panels and air management blades.
Warning: Failure to cover open slots could cause overheating of power supplies, boards, or other
components, and could damage the system.
Technical Product Specification
Slots
AC or DC Power Input Panel
(behind protective cover)
Rear Panel I/O Boards
(for system master boards)
[Slots 7, 8, 16, and 17]
®
TM
NetStructure ZT 5085/88/89/90/91 Chassis
Getting Started
Exhaust
Grill
Power
Standby
Switch
ESD
Ground
Jack
B2035-01
23
