Power Subsystem
The A and B connections provide redundant input power to both power trays. The A connections
provides power to PS2, PS4, PS5 and PS7PS1, PS3, PS5 and PS7. The B connection provides
power to PS1, PS3, PS6, and PS8PS2, PS4, PS6, and PS8. For full redundancy, these feeds must:
•
Have independent circuit breakers
•
Come from different sources
Circuit breakers should be rated based on maximum load at minimum voltage with one failed feed.
The circuit breakers shall not be rated for more than 60 A under any circumstance.
Each DC power input includes an EMI filter to reduce line-conducted emissions.
4.7

Power Trays

Two power trays occupy the bottom of the ZT 5085 platform. Each tray has its own backplane that
provides slots for four power supplies. The trays are modular for ease of replacement (the trays are
not hot swappable).

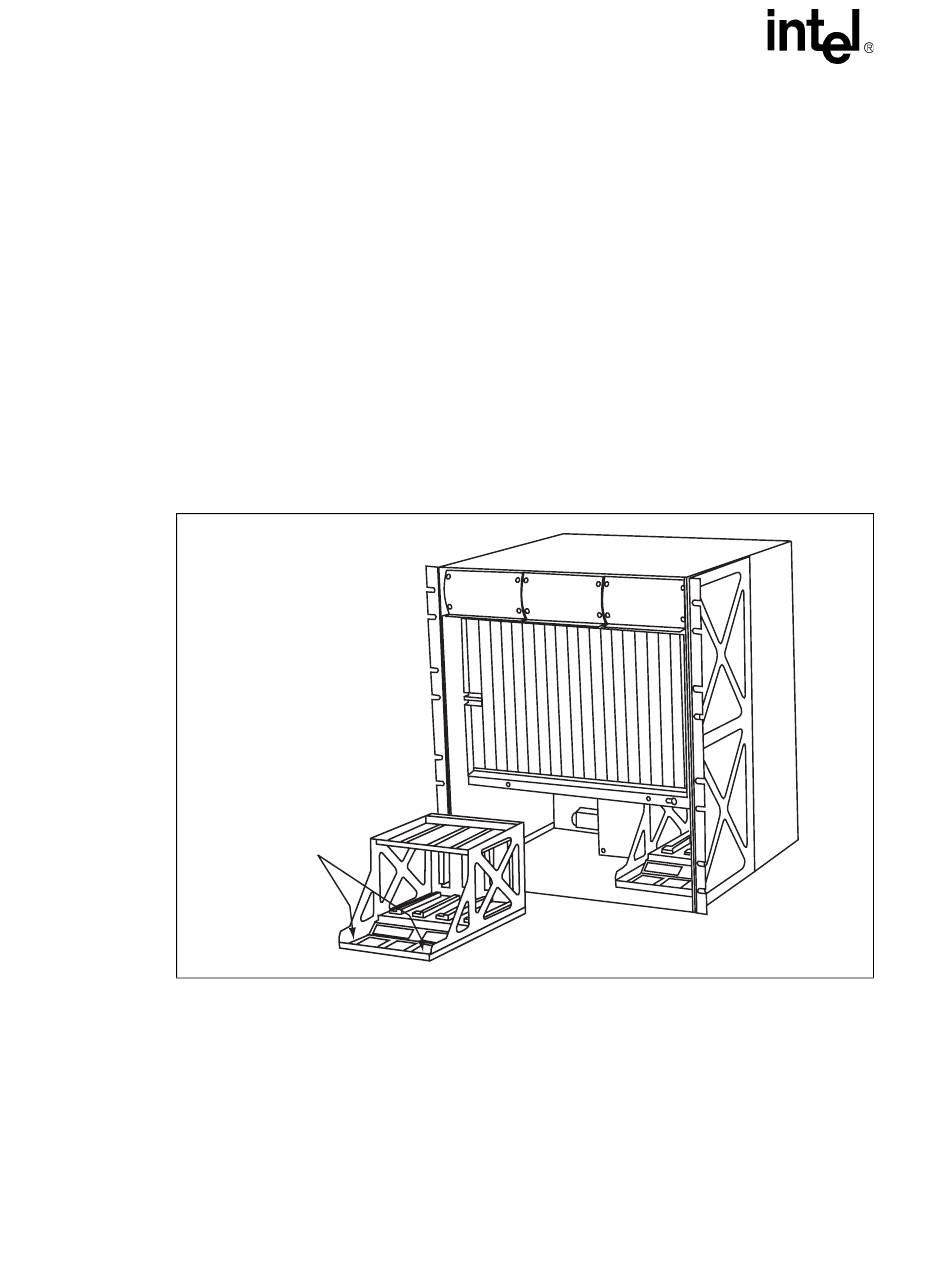

Figure 23. Power Trays
52
Figure 23 illustrates the placement of the power trays in the platform.
Retention
Screws
