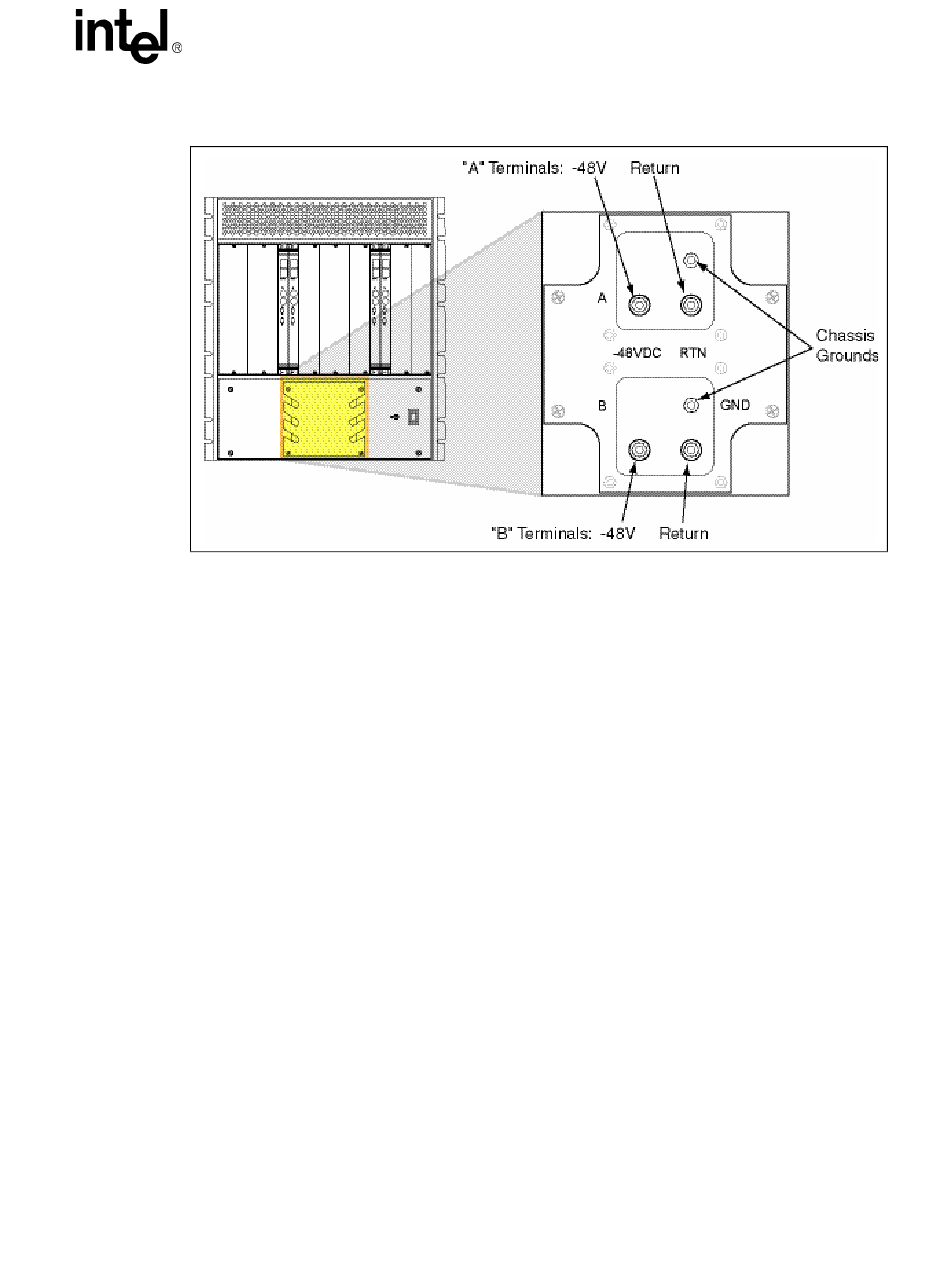

Figure 12. ZT 5085 DC Power Input Panel (P2)
Note: For permanently connected equipment, a readily accessible disconnect device should be
incorporated in the building wiring installation. Circuit breakers should be rated to handle the
current indicated in the input specifications listed on the product identification label at the rear of
the ZT 5085.
4. Replace the protective cover on the terminal block.
5. Complete the connection to the DC power source.
6. Once power is connected, the power standby switch may be used to turn on the system.
7. Connect the DC supply terminals to the terminal block. Connections should be made with 18-
14AWG wire with #8 ring terminals (use copper conductors only). To provide DC input power
redundancy, connect both the (A) and (B) inputs. See
Panel (P2)" on page 27
8. Replace the protective cover on the terminal block.
9. Complete the connection to the DC power source.
10. Once power is connected, the power standby switch may be used to turn on the system.
Warning: The power standby switch does not turn off power to the system. The system must be disconnected
from the power source(s) to remove all power.
2.3.4

Connecting I/O Devices

The front and rear board-level components in the ZT 5085 system offer connections for many
different I/O devices such as a monitor, keyboard, mouse, and serial devices. Rear panel connectors
are for added cabling flexibility and should not be used to connect extra devices to a given board.
Unpredictable behavior may occur if the same front and rear panel connectors are used
simultaneously (for example, connecting two keyboards).
Technical Product Specification
for terminal assignments.
Getting Started
Figure 12, "ZT 5085 DC Power Input
