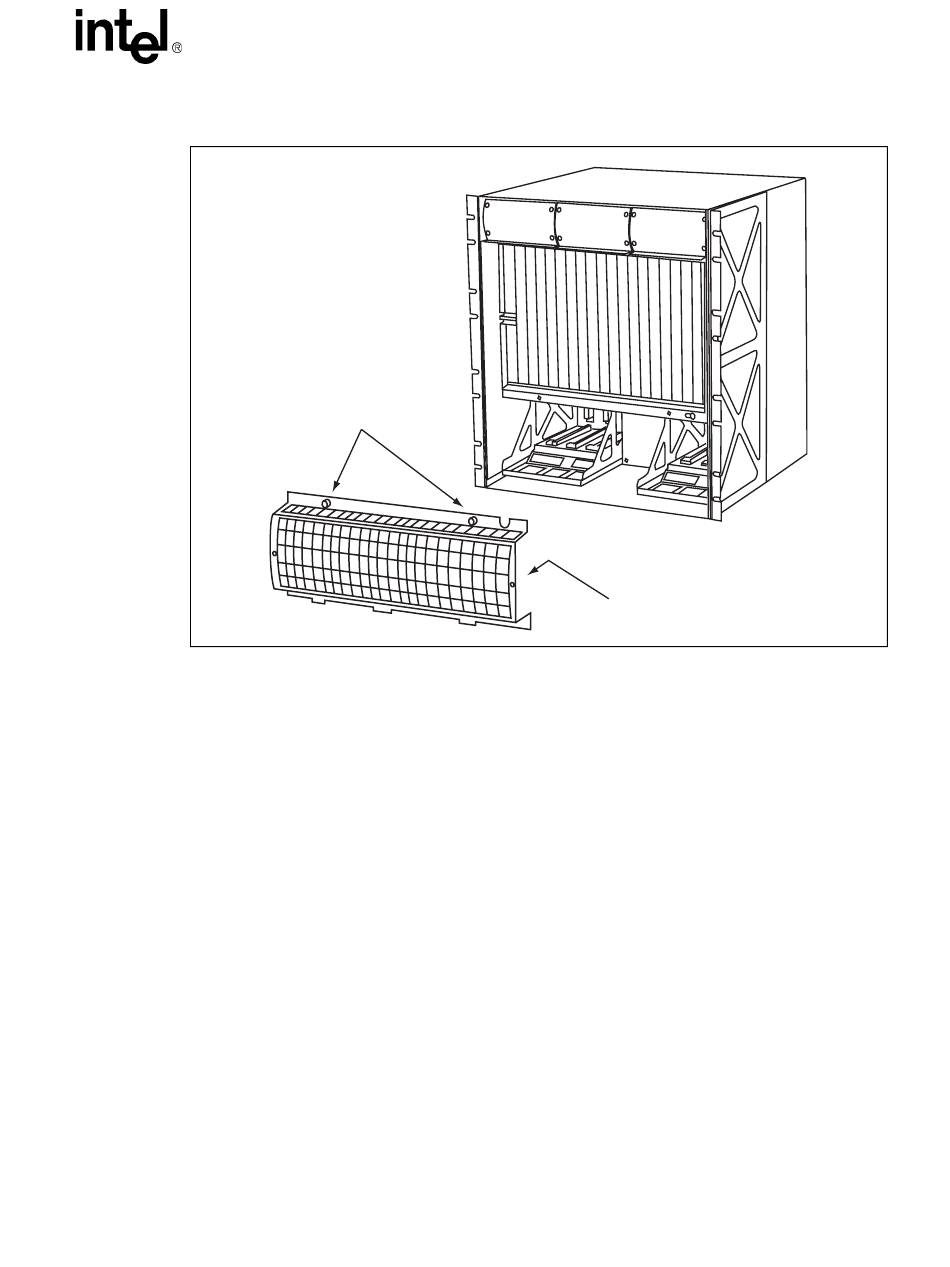

Figure 27. Intake Grill and Air Filter

5.2.1

Replacing the Air Filter

The system's air filter clips into the back side of the intake grill. The foam element in the filter is

replaceable (Universal Air Filter, Quadrafoam 25PPI HF-1, 0.25" x 7.75" x 16.9"). To replace the

air filter:

1. Unscrew the two retention screws at the top of the air intake grill.

2. Pull the grill away from the enclosure.

3. The air filter is clipped into the back of the intake grill. Unclip the filter retainer to release the

filter element.

4. Fit a new filter element into the back of the grill and clip the filter retainer into place.

5. Replace the intake grill by first inserting the tabs at the bottom into the enclosure. Then align

the screws at the top of the grill with the corresponding holes on the enclosure and tighten the

screws (be careful not to over-tighten).

Technical Product Specification

Retention

Screws

Cooling Subsystem

Foam

Filter
