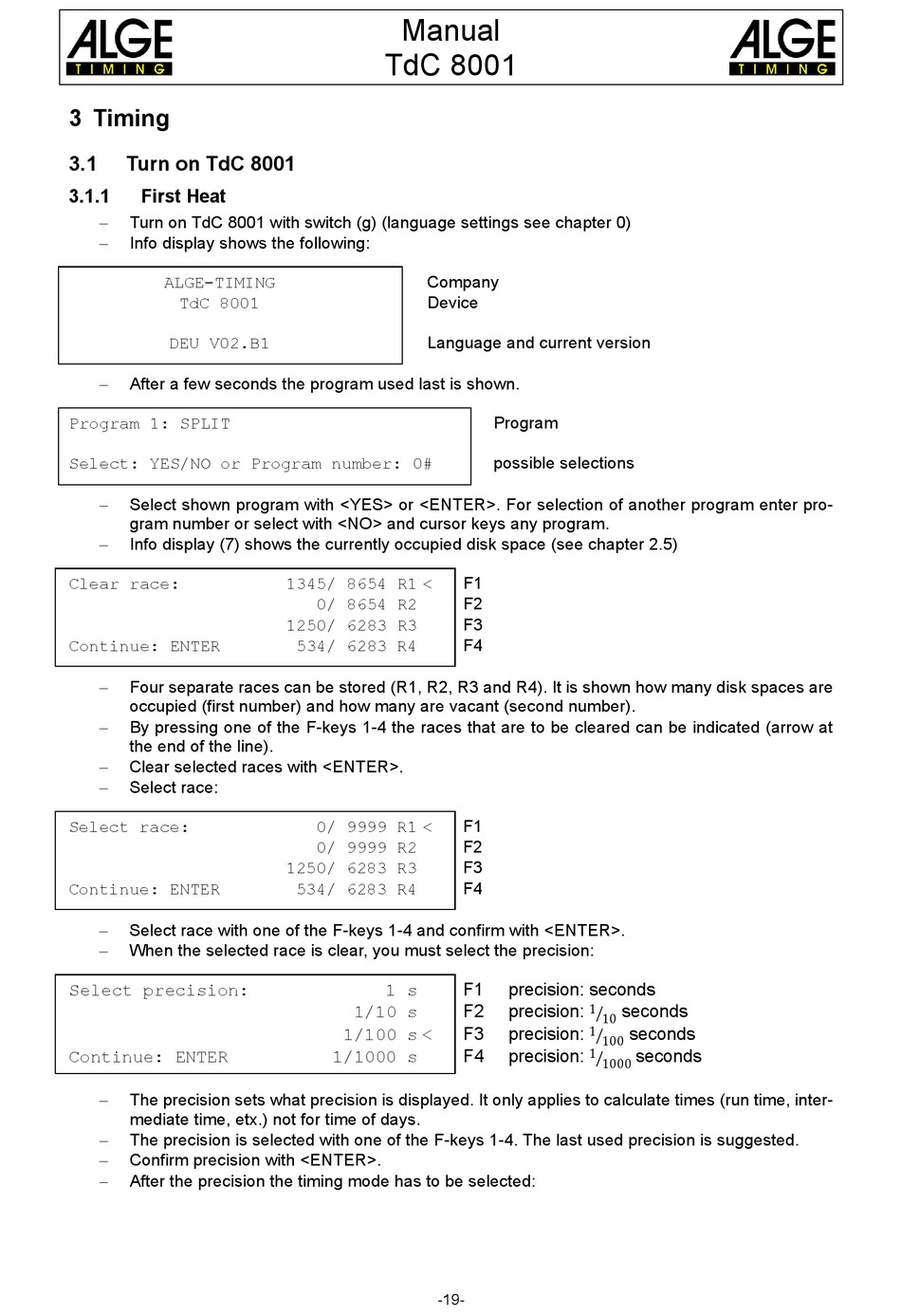

3 Timing

3.1

Turn on TdC 8001

3.1.1

First Heat

− Turn on TdC 8001 with switch (g) (language settings see chapter 0)
Info display shows the following:
−
ALGE-TIMING
TdC 8001
DEU V02.B1
After a few seconds the program used last is shown.
−
Program 1: SPLIT
Select: YES/NO or Program number: 0#
Select shown program with <YES> or <ENTER>. For selection of another program enter pro-
−
gram number or select with <NO> and cursor keys any program.
Info display (7) shows the currently occupied disk space (see chapter 2.5)
−
Clear race:
Continue: ENTER
Four separate races can be stored (R1, R2, R3 and R4). It is shown how many disk spaces are
−
occupied (first number) and how many are vacant (second number).
By pressing one of the F-keys 1-4 the races that are to be cleared can be indicated (arrow at
−
the end of the line).
Clear selected races with <ENTER>.
−
Select race:
−
Select race:
Continue: ENTER
Select race with one of the F-keys 1-4 and confirm with <ENTER>.
−
− When the selected race is clear, you must select the precision:
Select precision:
Continue: ENTER
− The precision sets what precision is displayed. It only applies to calculate times (run time, inter-
mediate time, etx.) not for time of days.
− The precision is selected with one of the F-keys 1-4. The last used precision is suggested.
Confirm precision with <ENTER>.
−
− After the precision the timing mode has to be selected:
Manual
TdC 8001
Company
Device
Language and current version
1345/ 8654 R1 <
0/ 8654 R2
1250/ 6283 R3
534/ 6283 R4
0/ 9999 R1 <
0/ 9999 R2
1250/ 6283 R3
534/ 6283 R4
1 s
1/10 s
1/100 s <
1/1000 s
-19-
Program
possible selections
F1
F2
F3
F4
F1
F2
F3
F4
1
�
F1 precision: seconds
10
1
�
F2 precision: seconds
100
1
�
F3 precision: seconds
1000
F4 precision: seconds
