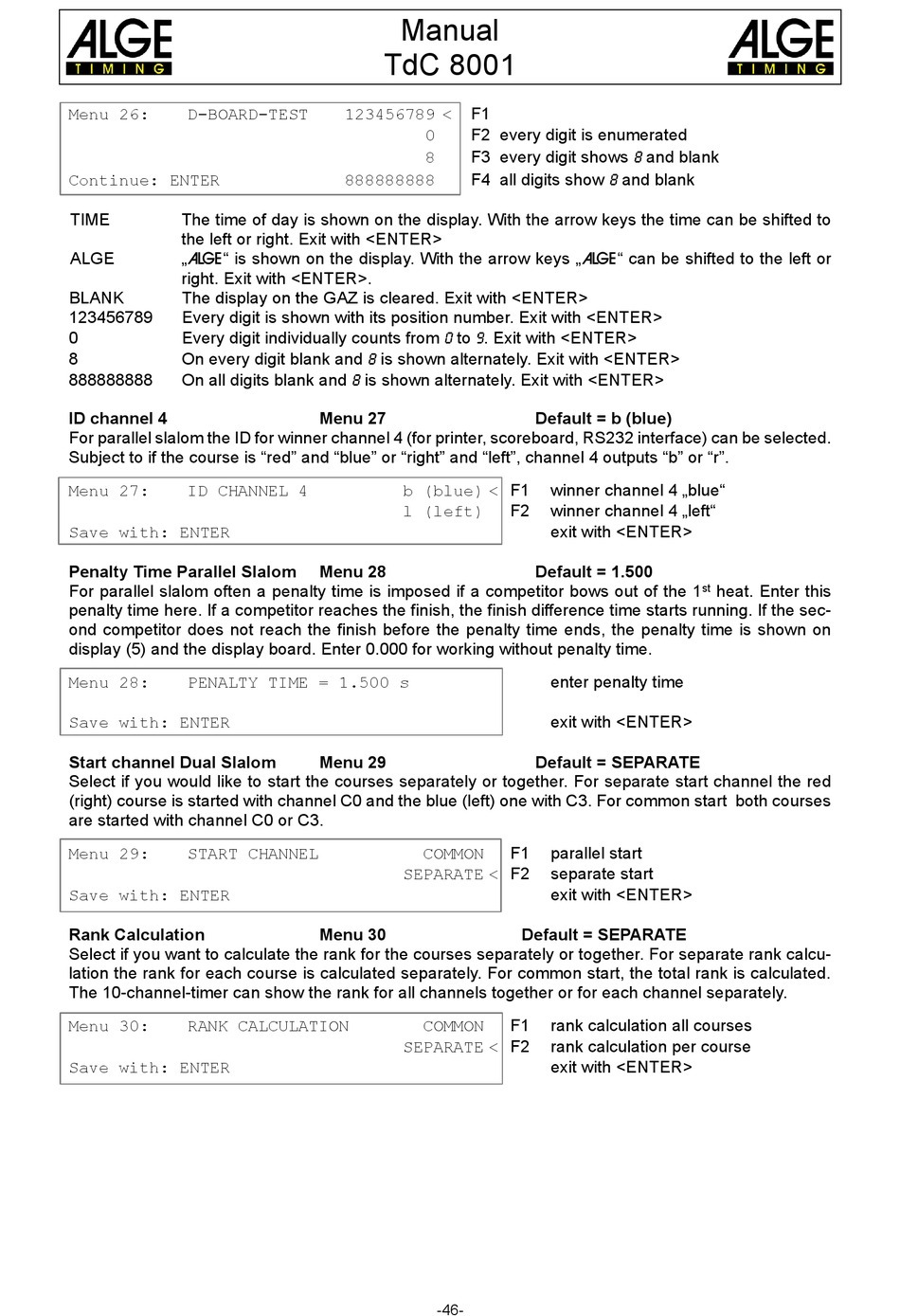

ALGE-Timing TDC8001 Manual page 46

Menu 26: D-BOARD-TEST
Continue: ENTER
TIME The time of day is shown on the display. With the arrow keys the time can be shifted to
the left or right. Exit with <ENTER>
ALGE „ALGE" is shown on the display. With the arrow keys „ALGE" can be shifted to the left or
right. Exit with <ENTER>.
BLANK The display on the GAZ is cleared. Exit with <ENTER>
123456789 Every digit is shown with its position number. Exit with <ENTER>
0 Every digit individually counts from 0 to 9. Exit with <ENTER>
8 On every digit blank and 8 is shown alternately. Exit with <ENTER>
888888888 On all digits blank and 8 is shown alternately. Exit with <ENTER>
ID channel 4
For parallel slalom the ID for winner channel 4 (for printer, scoreboard, RS232 interface) can be selected.
Subject to if the course is "red" and "blue" or "right" and "left", channel 4 outputs "b" or "r".
Menu 27: ID CHANNEL 4
Save with: ENTER
Penalty Time Parallel Slalom
For parallel slalom often a penalty time is imposed if a competitor bows out of the 1
penalty time here. If a competitor reaches the finish, the finish difference time starts running. If the sec-
ond competitor does not reach the finish before the penalty time ends, the penalty time is shown on
display (5) and the display board. Enter 0.000 for working without penalty time.
Menu 28: PENALTY TIME = 1.500 s
Save with: ENTER
Start channel Dual Slalom
Select if you would like to start the courses separately or together. For separate start channel the red
(right) course is started with channel C0 and the blue (left) one with C3. For common start both courses
are started with channel C0 or C3.
Menu 29: START CHANNEL
Save with: ENTER
Rank Calculation
Select if you want to calculate the rank for the courses separately or together. For separate rank calcu-
lation the rank for each course is calculated separately. For common start, the total rank is calculated.
The 10-channel-timer can show the rank for all channels together or for each channel separately.
Menu 30: RANK CALCULATION
Save with: ENTER
Manual
TdC 8001
F1
123456789 <
0 F2 every digit is enumerated
F3 every digit shows 8 and blank
8
888888888 F4 all digits show 8 and blank
Menu 27
b (blue) < F1
l (left)
Menu 28
Menu 29
COMMON
SEPARATE < F2
Menu 30
COMMON
SEPARATE < F2
-46-
Default = b (blue)
winner channel 4 „blue"
F2 winner channel 4 „left"
exit with <ENTER>
Default = 1.500
enter penalty time
exit with <ENTER>
Default = SEPARATE
F1 parallel start
separate start
exit with <ENTER>
Default = SEPARATE
F1 rank calculation all courses
rank calculation per course
exit with <ENTER>
heat. Enter this
st
