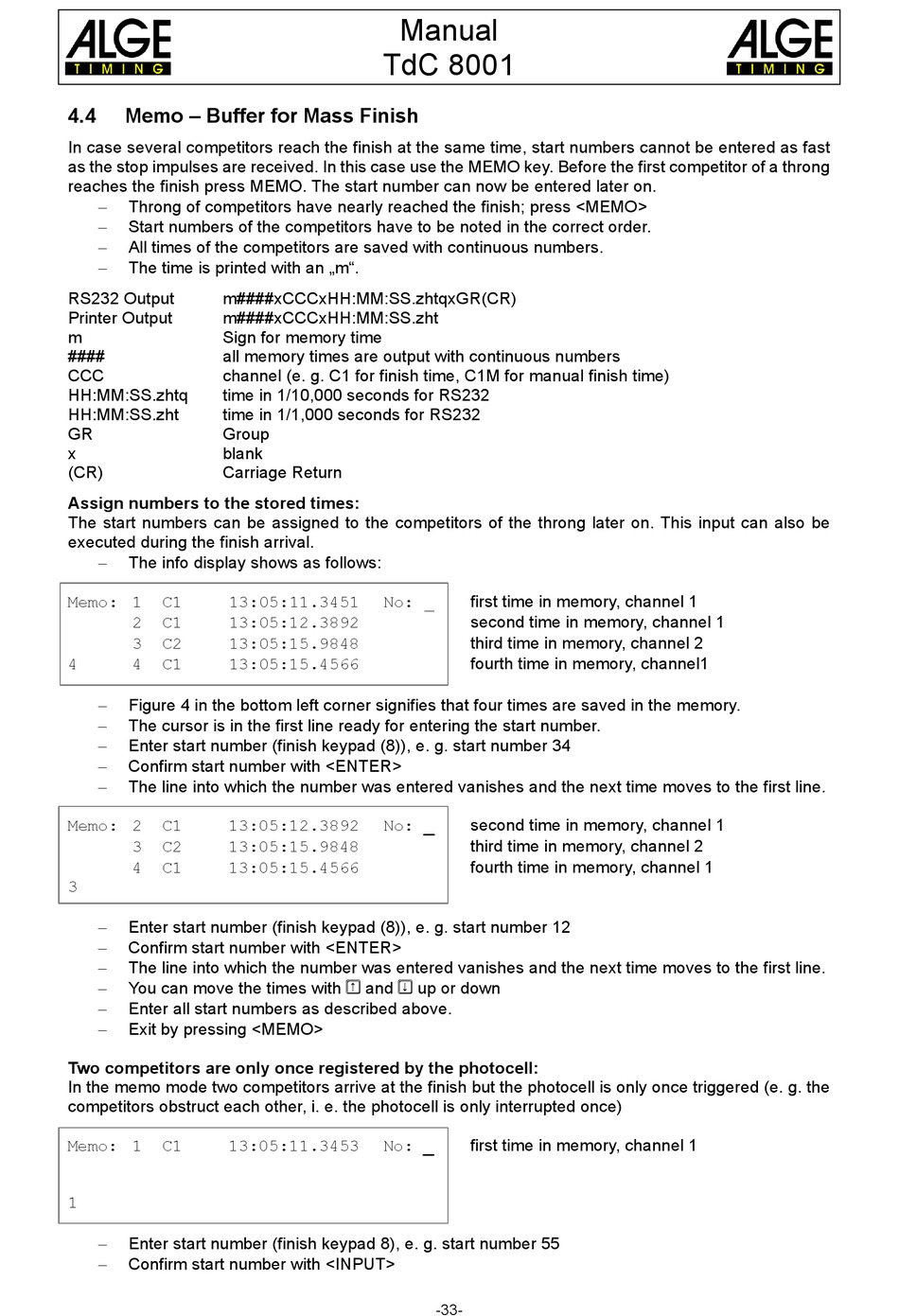

4.4 Memo – Buffer for Mass Finish
In case several competitors reach the finish at the same time, start numbers cannot be entered as fast
as the stop impulses are received. In this case use the MEMO key. Before the first competitor of a throng
reaches the finish press MEMO. The start number can now be entered later on.
Throng of competitors have nearly reached the finish; press <MEMO>
−
− Start numbers of the competitors have to be noted in the correct order.
All times of the competitors are saved with continuous numbers.
−
− The time is printed with an „m".
RS232 Output m####xCCCxHH:MM:SS.zhtqxGR(CR)
Printer Output m####xCCCxHH:MM:SS.zht
m Sign for memory time
#### all memory times are output with continuous numbers
CCC channel (e. g. C1 for finish time, C1M for manual finish time)
HH:MM:SS.zhtq time in 1/10,000 seconds for RS232
HH:MM:SS.zht time in 1/1,000 seconds for RS232
GR Group
x blank
(CR) Carriage Return
Assign numbers to the stored times:
The start numbers can be assigned to the competitors of the throng later on. This input can also be
executed during the finish arrival.
The info display shows as follows:
−
Memo: 1 C1 13:05:11.3451
2 C1 13:05:12.3892
3 C2 13:05:15.9848
4 4 C1 13:05:15.4566
Figure 4 in the bottom left corner signifies that four times are saved in the memory.
−
− The cursor is in the first line ready for entering the start number.
Enter start number (finish keypad (8)), e. g. start number 34
−
− Confirm start number with <ENTER>
− The line into which the number was entered vanishes and the next time moves to the first line.
Memo: 2 C1 13:05:12.3892
3 C2 13:05:15.9848
4 C1 13:05:15.4566
3
− Enter start number (finish keypad (8)), e. g. start number 12
Confirm start number with <ENTER>
−
− The line into which the number was entered vanishes and the next time moves to the first line.
You can move the times with  and  up or down
−
− Enter all start numbers as described above.
− Exit by pressing <MEMO>
Two competitors are only once registered by the photocell:
In the memo mode two competitors arrive at the finish but the photocell is only once triggered (e. g. the
competitors obstruct each other, i. e. the photocell is only interrupted once)
Memo: 1 C1 13:05:11.3453
1
− Enter start number (finish keypad 8), e. g. start number 55
Confirm start number with <INPUT>
−
Manual
TdC 8001
No: _ first time in memory, channel 1
second time in memory, channel 1
third time in memory, channel 2
fourth time in memory, channel1
No: _
second time in memory, channel 1
third time in memory, channel 2
fourth time in memory, channel 1
No: _
first time in memory, channel 1
-33-
