Display:
In displays (1) and (6) the heat number of the pair is shown.
−
Display (5) shows the winner course and finish difference time
−
Info display (7) has no function for timing
−
Printer: example of printout
0001 r
0002 b
P0003 b
10:15:34.2373 Heat no 3: invalid impulse
?0003 C1
0004 r
c0004 r
Photocells for finish:
The photocell for the red course is connected to the TdC 8001. For cables 001-10, 001-20 or
−
001-30 jack A (A') or A' (A) is used. For external supply of the photocell also a two core cable
can be used. It is connected with banana plugs to channel c1 (h).
− The photocell for the blue course is connected to the TdC 8001. For cables 001-10, 001-20 or
001-30 the jack B (B) is used. For external supply of the photocell also a two core cable can be
used. It is connected with banana plugs to channel c4 (h).
Display board GAZ5:

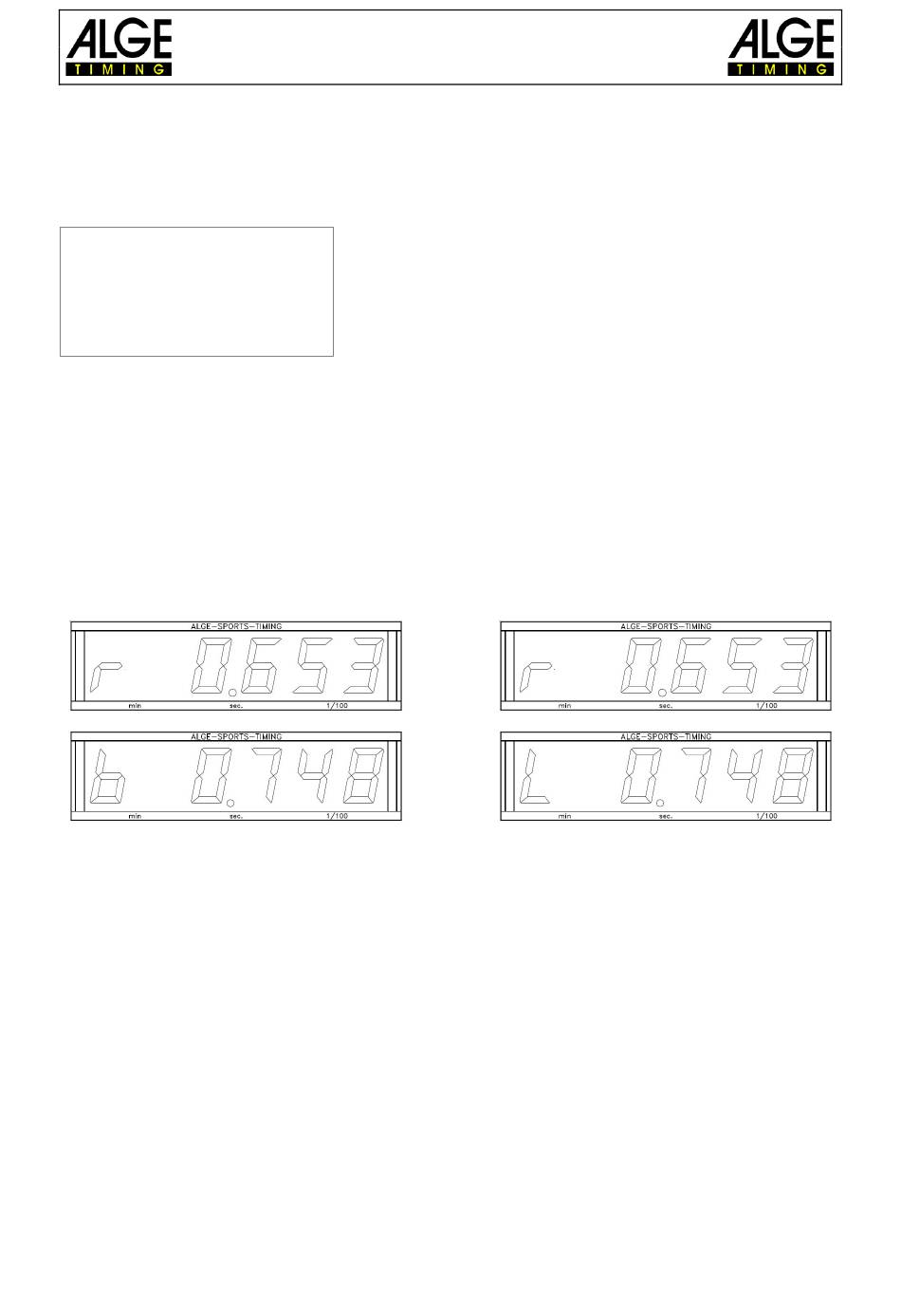

The finish difference time can be shown on an ALGE display board. The winner course is always dis-
played together with the difference time (r = red, b = blue).
In the main menu (see menu 27) can be set if the output for winner course is red (r) and blue (b) or right
(r) and left (L).
In the main menu (see menu 20) channel 2 can be activated. If working with channel 2, only the stopped
time is shown on the display board (no running time).
Output format:
Transfer rate:
Transfer protocoll:
NNNPxxxxxxxxx:Sz.ht(CR)
NNNPxxxxxxxbS:Sxxxx(CR)
NNNPxxxxxxx§S:Sxxxx(CR)
NNNPxxxxxxx$S:Sxxxx(CR)
NNNPxxxxxxxbS:Szxxx(CR)
NNNPxxxxxxx§S.Szxxx(CR)
NNNPxxxxxxx$S:Szxxx(CR)
NNNPxxxxxxxbS:Sz ht(CR)
NNNPxxxxxxx§S:Sz ht(CR)
NNNPxxxxxxx$S:Sz ht(CR)
x ............ blank
NNN ...... heat number
P ........... identification for parallel slalom
§ ............ red (right) course (special character 0A hex. for r(= red course), 12. character)
b ............ blue course (12. character)
$ ............ left course (special character 0C hex. for L (= left course), 12. character)
Manual
TdC 8001
1.231 Heat no 1: red course wins with 1.231 margin
0.429 Heat no 2: blue course wins with 0.429 margin
1.500 Heat no 3: blue course wins (course penalty time)
0.217 Heat no 4: red course wins with 0.217 margin
0.217 Heat no 4 was cleared
1 Startbit, 8 Databit, no Paritybit, 1 Stoppbit
2,400 baud
ASCII
standing time before a competitor reaches the finish
running finish difference time (win blue course, no 1/10)
running finish difference time (win red course, no 1/10)
running finish difference time (win left course, no 1/10)
running finish difference time (win blue course, with 1/10)
running finish difference time (win red course, with 1/10)
running finish difference time (win left course, with 1/10)
finish difference time (win blue course)
finish difference time (win red course)
finish difference time (win left course)
