The third icon is the
USB
power supply or power bank has no data connection. In this case, the icon stays strike
through.
The fourth icon from the left is the battery icon which shows the power state and state of
charge. The fifth icon shows the synchronization state. At the beginning, there is no synchroni-
zation. After synchronization, it shows the type of synchronization. Possible state is GPS,
GSM and EXT. The device must be synchronized for timing. You will not receive any
timestamp without. Standard setting is GPS synchronization, which has the highest possible
accuracy. GSM (Server) synchronization has only an accuracy of 0.05s.
At the right end you can find the name of the device for identification. This can be set from
server configuration.
2.1.2
Bib

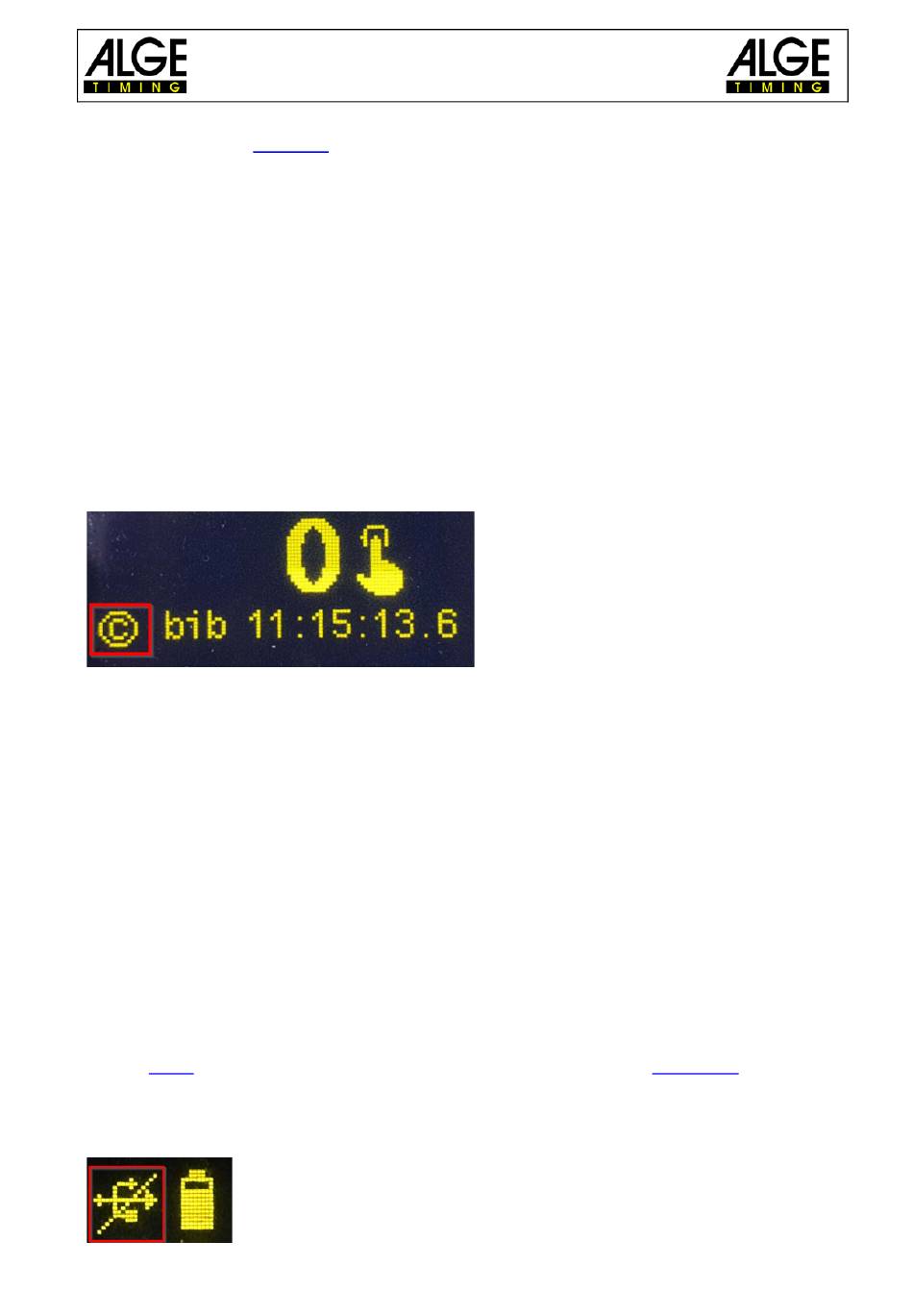

On the main screen, a bib is blinking. To confirm the next bib press ENTER. To change the bib
enter the number and confirm with ENTER.
Note:
If you want to suppress a wrong pulse, you can enter "0"+ENTER. This disables upcoming
pulses. You can identify the disabled state with a blinking circle.
2.1.3
Time
On the bottom part of the screen you can see the running time.
On the very bottom of the screen, you can find the latest timing pulse (channel, bib and time).
2.2
Keypad
The MT1 has a splash-proof foil keyboard with 12 buttons.
2.3
Connections
2.3.1
Timing channels
The MT1 is equipped with two timing channels on banana plugs. One green and black(C0),
and one red and black (C1) with a resolution of 1/100,000 seconds.
2.3.2
USB
The MT1 device has a USB-C interface which can be used for charging and data transmission
to a PC. This USB interface simulates a virtual COM port. For Window 7 OS and older you
need a
driver
to use this COM port. For newer OS you can install the
correct name in the device manager, but it is not necessary. This virtual COM port uses the
same data protocol as the Timy series and TDC 800x series.
No data connection to the PC is shown with a crossed out USB symbol.
Manual
Mobile Timing MT1
icon. It is strike through if there is no USB data connection. Note: A
- 6 -
MT1 driver
to show the
