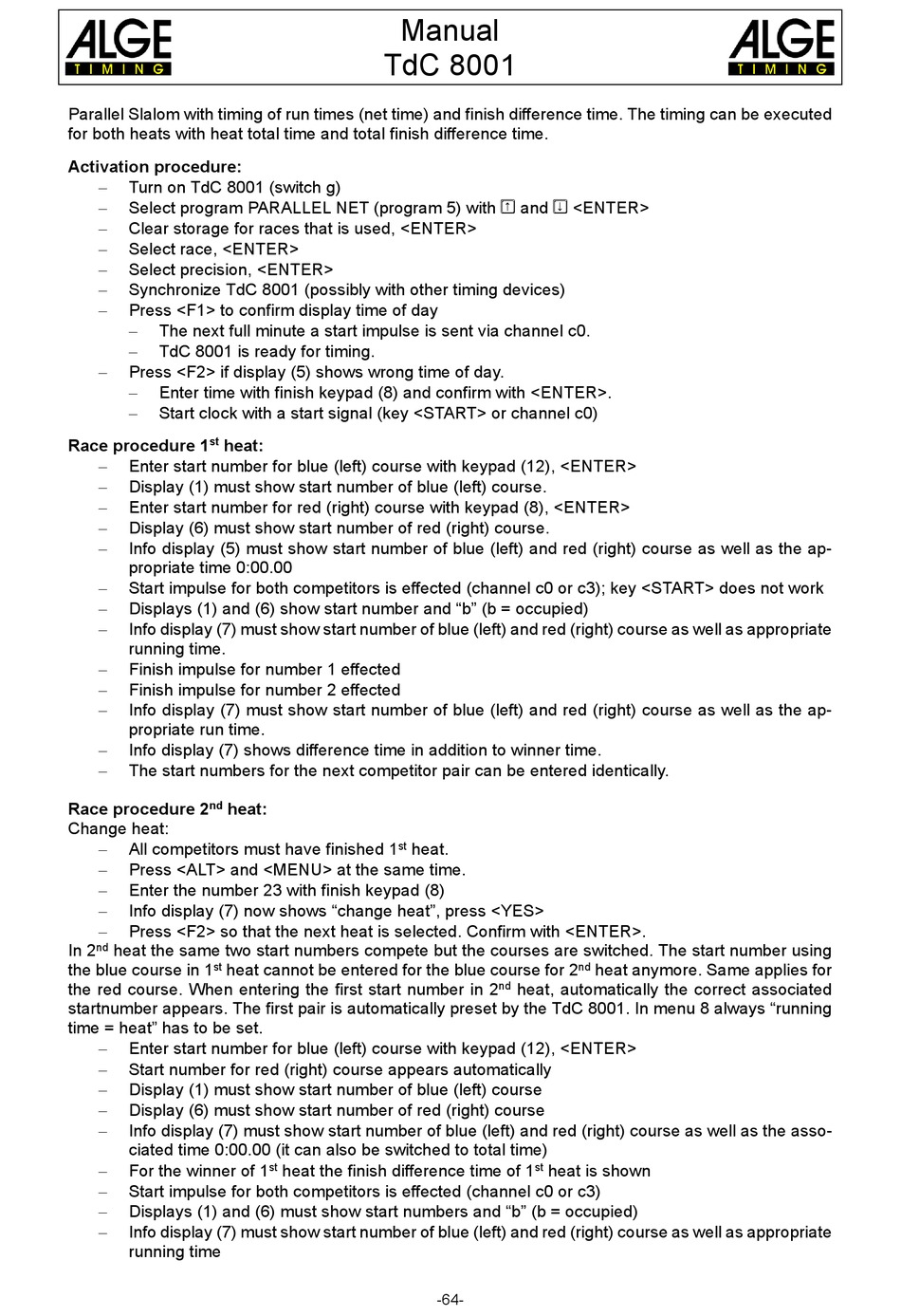

ALGE-Timing TDC8001 Manual page 64

Parallel Slalom with timing of run times (net time) and finish difference time. The timing can be executed
for both heats with heat total time and total finish difference time.
Activation procedure:
Turn on TdC 8001 (switch g)
−
− Select program PARALLEL NET (program 5) with  and  <ENTER>
− Clear storage for races that is used, <ENTER>
Select race, <ENTER>
−
− Select precision, <ENTER>
Synchronize TdC 8001 (possibly with other timing devices)
−
Press <F1> to confirm display time of day
−
The next full minute a start impulse is sent via channel c0.
−
TdC 8001 is ready for timing.
−
− Press <F2> if display (5) shows wrong time of day.
Enter time with finish keypad (8) and confirm with <ENTER>.
−
− Start clock with a start signal (key <START> or channel c0)
Race procedure 1 st heat:
Enter start number for blue (left) course with keypad (12), <ENTER>
−
− Display (1) must show start number of blue (left) course.
Enter start number for red (right) course with keypad (8), <ENTER>
−
− Display (6) must show start number of red (right) course.
Info display (5) must show start number of blue (left) and red (right) course as well as the ap-
−
propriate time 0:00.00
Start impulse for both competitors is effected (channel c0 or c3); key <START> does not work
−
Displays (1) and (6) show start number and "b" (b = occupied)
−
Info display (7) must show start number of blue (left) and red (right) course as well as appropriate
−
running time.
Finish impulse for number 1 effected
−
Finish impulse for number 2 effected
−
− Info display (7) must show start number of blue (left) and red (right) course as well as the ap-
propriate run time.
Info display (7) shows difference time in addition to winner time.
−
The start numbers for the next competitor pair can be entered identically.
−
Race procedure 2 nd heat:
Change heat:
All competitors must have finished 1
−
Press <ALT> and <MENU> at the same time.
−
Enter the number 23 with finish keypad (8)
−
− Info display (7) now shows "change heat", press <YES>
Press <F2> so that the next heat is selected. Confirm with <ENTER>.
−
In 2 heat the same two start numbers compete but the courses are switched. The start number using
nd
the blue course in 1 heat cannot be entered for the blue course for 2
st
the red course. When entering the first start number in 2
startnumber appears. The first pair is automatically preset by the TdC 8001. In menu 8 always "running
time = heat" has to be set.
− Enter start number for blue (left) course with keypad (12), <ENTER>
Start number for red (right) course appears automatically
−
Display (1) must show start number of blue (left) course
−
Display (6) must show start number of red (right) course
−
Info display (7) must show start number of blue (left) and red (right) course as well as the asso-
−
ciated time 0:00.00 (it can also be switched to total time)
For the winner of 1
−
− Start impulse for both competitors is effected (channel c0 or c3)
Displays (1) and (6) must show start numbers and "b" (b = occupied)
−
− Info display (7) must show start number of blue (left) and red (right) course as well as appropriate
running time
Manual
TdC 8001
heat.
st
heat the finish difference time of 1
st
-64-
heat anymore. Same applies for
nd
heat, automatically the correct associated
nd
heat is shown
st
