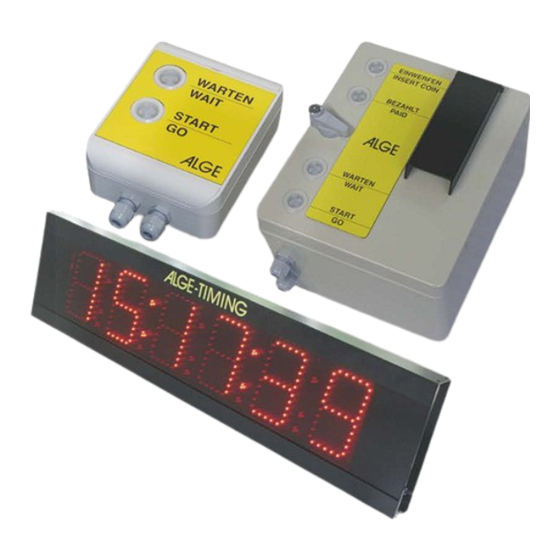

ALGE-Timing SF3 Manual

Selftimer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Version-E190821
Manual
Selftimer SF3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF3 and is the answer not in the manual?

Questions and answers

Related Manuals for ALGE-Timing SF3

Summary of Contents for ALGE-Timing SF3

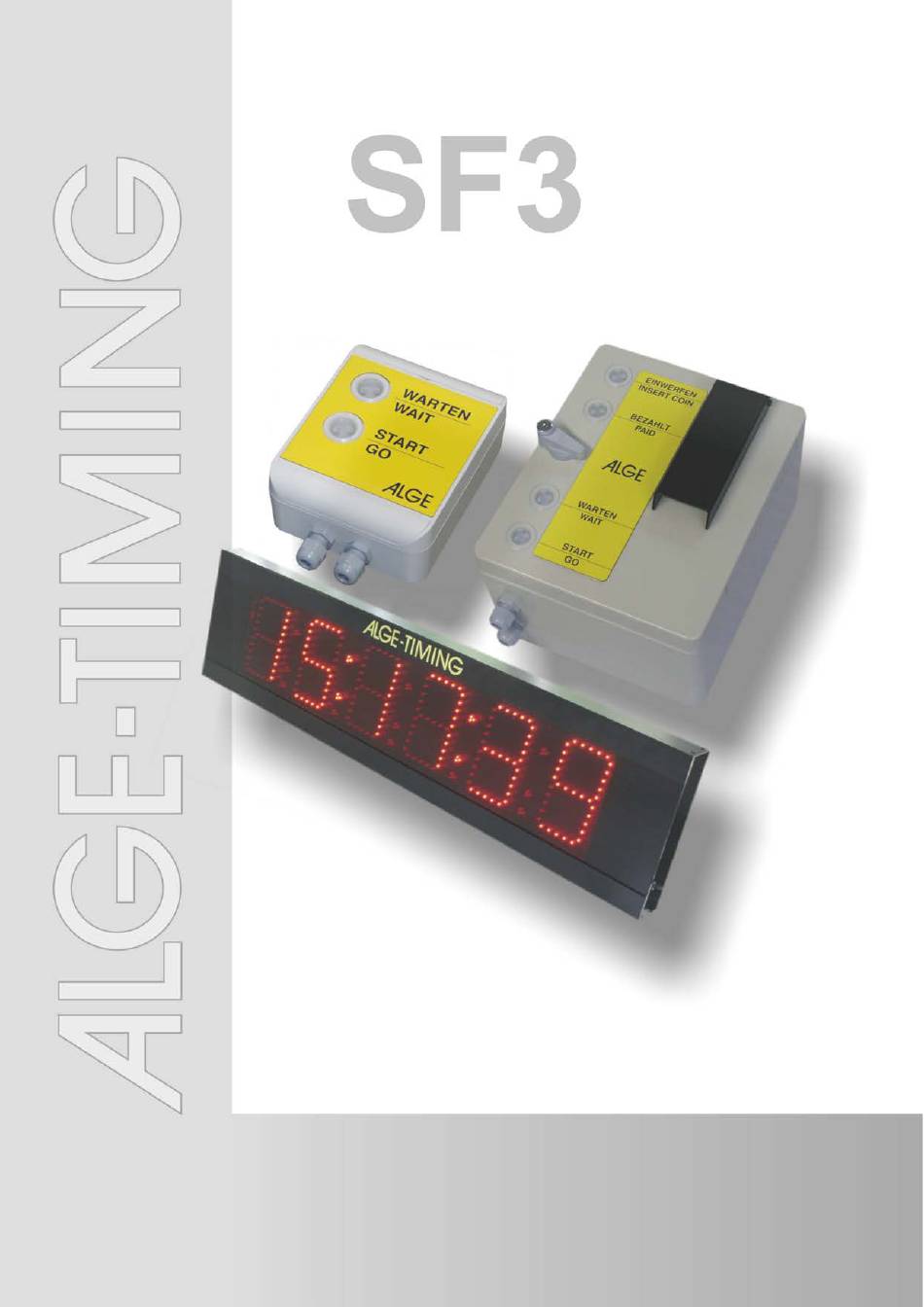

  • Page 1 Version-E190821 Manual Selftimer SF3...
  • Page 2 Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cov- er all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Cabling for the SF3 System ..................4 SF3L ........................4 1.1.1 Selftimer - SF3 Cabling with Startgate and Photocell ..............5 1.1.2 Speed Measurement - Cabling with Photocells ................6 1.1.3 Selftimer for Speed Climbing ......................7 SF3P ........................

  • Page 4: Cabling For The Sf3 System

    Manual 1 Cabling for the SF3 System Depending on the type of SF3 system you have a different cabling is required. 1.1 SF3L The SF3L system is delivered without coin collector. The start unit only serves for clearance of the course.

  • Page 5: Selftimer - Sf3 Cabling With Startgate And Photocell

    Manual 1.1.1 Selftimer - SF3 Cabling with Startgate and Photocell • Adjustment: SF=1 - 5 -...

  • Page 6: Speed Measurement - Cabling With Photocells

    Manual 1.1.2 Speed Measurement - Cabling with Photocells This setup is used to measure the speed without payment. Two photocells are set up at a distance of 10 m. The first photocell (start of the measure- ment) is connected with the cable 002-XX, the second photocell (end of the measurement) with cable 001-XX.

  • Page 7: Selftimer For Speed Climbing

    Manual 1.1.3 Selftimer for Speed Climbing With setup you can use to measure the time for speed climbing. A climber is measured au- tomatically without a operator for the system. - 7 -...

  • Page 8: Sf3P

    Manual 1.2 SF3P The SF3P system is equipped with a coin collector. The start unit serves for clearance of the course as well as for payment. The start unit should be placed near the startgate on a pole or at a wall. A four-core cable is required connecting finish and start with a maximum loop resistance of 180 Ohms.

  • Page 9: Selftimer - Sf3P Wiring Diagram With Startgate And Photocell

    Manual 1.2.1 Selftimer - SF3P Wiring Diagram with Startgate and Photocell - 9 -...

  • Page 10: Settings For The D-Linexxx-X-Sf3

    Manual 2 Settings for the D-LINExxx-x-SF3 On the next pages all possible settings of the SF3 system are described. 2.1 Selftimer Settings For entering the settings mode of the display you have to keep the button pressed until the first parameter shows on the display. If you then release the button the parameter first blinks for a few seconds and then does the corresponding setting.

  • Page 11: Total Start-Counter

    2.1.5 Total Start-Counter Shows the total number of starts (paid or not paid) of the SF3 (including racer that dnf). If you press the button when the counter reading is blinking the counter is reset to zero. To read the counter just blocks the photocell. After 10 seconds the total counter reading is shown and subsequently the daily counter reading.

  • Page 12: Repeat/Displaytime

    Manual 2.1.9 Repeat/Displaytime 2.1.9.1 Repeat (default 02) Sets the number of display repeats. Time – speed – time – speed – time. 2.1.9.2 Displaytime Time (default 04) This setting adjusts the displaytime for the time. 2.1.9.3 Displaytime Speed (default 04) This setting adjusts the displaytime for the speed.

  • Page 13: Area Settings For Temperature And Time

    Manual • Displaytime for Date Displaytime for the date. If this parameter is set to 0 the date is no longer displayed. • Displaytime for Temperature Displaytime for the temperature. Only available if the temperature sensor is connected. • GPS Offset Hours to GMT With this parameter, you can adjust the offset of the local time to GMT in hours.

  • Page 14: Brightness

    Manual Brightness With this parameter brightness effects and settings can be adjusted. The first digit is for the appearance, the second one for the brightness. • Setting the First Digit The first digit defines the type of change between time and temperature. The fade-in changes over with brightness effects from time to temperature.

  • Page 15: Technical Data

    R3 ..RS 232 Interface L2 ..Start Input for SF3 1 ... +10 to 12 VDC L3 ..2 x DIN-Socket for Photocell of SF3 2 ... Ground L4 ..Data Output RS232 for SF3 3 ... Data Out L5 ..

  • Page 16: Power Supply

    5 Standard D-LINE Functions Each D-LINExxx-x-SF3 also works as a standard D-LINE scoreboard. For this set the pa- rameter to 0 and all D-LINE parameters are available. For setting of your D-LINE please refer to the separate D-LINE manual.

This manual is also suitable for:

Sf3lSf3p
