Summary of Contents for ALGE-Timing Timy LapTimer

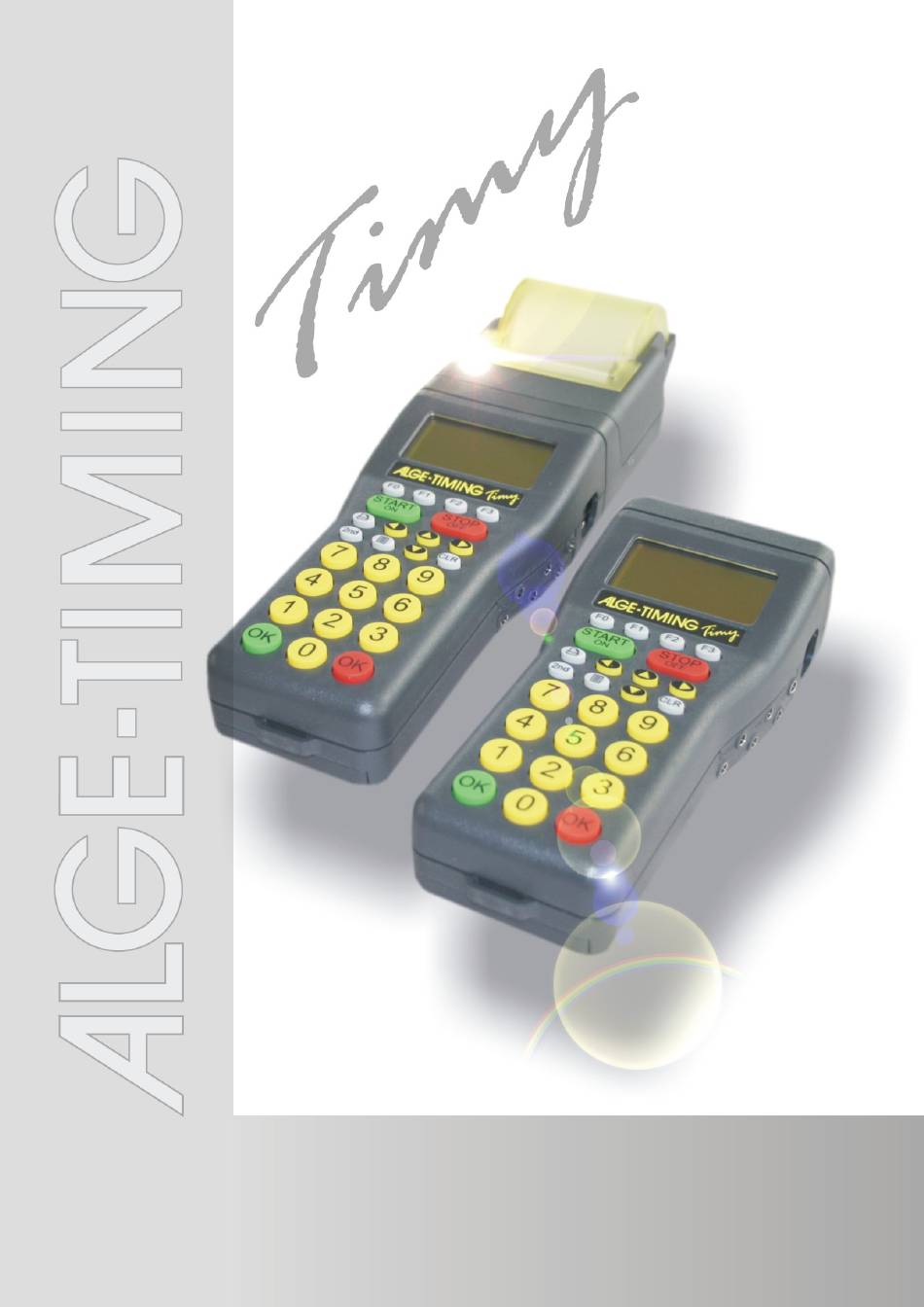

- Page 1 Version-E101007 LapTimer...
- Page 2 Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cover all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.
-
Page 3: Table Of Contents
Timy LapTIMER Table of Contents Keyboard and how to get started..................... 4 Program LapTimer........................4 Operation of Program LapTimer: ..................... 4 Displayboard Mode ........................4 Total Runtime: ..........................5 Lap Time:............................. 5 PRINTER-MODE......................... 5 Printer Runtime ON ........................5 Printer Runtime OFF ........................5 RS 232 Interface......................... -
Page 4: Keyboard And How To Get Started
Timy LapTimer Keyboard and how to get started See Timy manual „GENERAL“. Program LapTimer The program LapTimer has been made for all sports that measure lap times (e.g. motor racing). It is possible to have several competitors on the course. To measure the times, you need to be able to input the racer number before he passes the finish (lap). -
Page 5: Total Runtime
Timy LapTIMER Total Runtime: The displayboard shows the runtime, but no lap time. Lap Time: The displayboard shows the laptime, but no runtime. PRINTER-MODE It enables you to select beween both, a printout of laptimes and runtimes or one of laptimes only. -
Page 6: Rs 232 Interface
Timy LapTimer ID-number 1 start time (time of day) 0001 ST 11:59:33.5736 ID-number 1 first lap time (time of day) 12:00:39.9269 ID number 1 lap time (first lap) 1 SQ 1:06.35 ID-number 1 start time (time of day) 0001 ST 11:59:33.5736... -
Page 7: Rs 232 Commands
Timy LapTIMER First character: n ..Input of a new ID-number c..Deletion of an ID-number to make a new start Channels: Channel 0 max. precision 1/10.000 Channel 0M C0M max. precision 1/100 – manual = keyboard Channel 1 max. precision 1/10.000 Channel 1M C1M max. - Page 8 Timy LapTimer Page 8...
