Version-E20-03-31
Mobile Timing
MT1
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT1 and is the answer not in the manual?

Questions and answers

Related Manuals for ALGE-Timing MT1

Summary of Contents for ALGE-Timing MT1

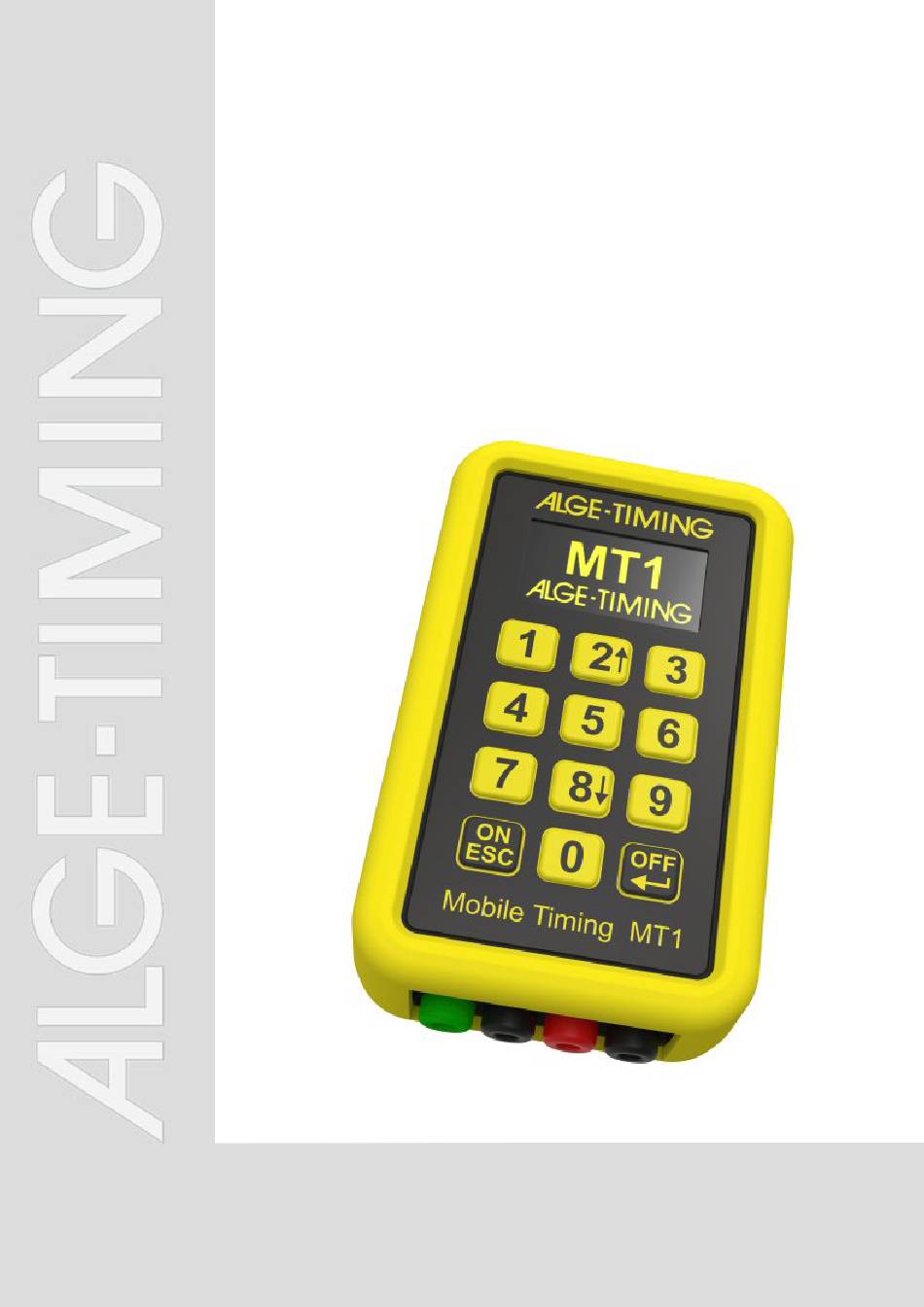

  • Page 1 Version-E20-03-31 Mobile Timing Manual...
  • Page 2 Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cover all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.
  • Page 3 Manual Mobile Timing MT1 Declaration of Conformity We hereby declare that the following product complies with the below stated standards. All components used by us are CE certified by their producer and are not modified by ALGE- TIMING GmbH. ALGE-TIMING GmbH...

  • Page 4: Table Of Contents

    Manual Mobile Timing MT1 Table of Contents Introduction ........................5 Device description ....................... 5 Display ............................5 2.1.1 Status bar ............................. 5 2.1.2 Bib ................................ 6 2.1.3 Time ..............................6 Keypad ............................6 Connections ..........................6 2.3.1 Timing channels ............................ 6 2.3.2...

  • Page 5: Introduction

    Automatic backup to the internet makes a log paper printer obsolete. If necessary, the start number can be entered in backup or memo mode. The MT1 has a built-in Li-Ion battery and is charged via a USB C socket.

  • Page 6: Bib

    2.3.2 The MT1 device has a USB-C interface which can be used for charging and data transmission to a PC. This USB interface will simulate a virtual COM port. For Window 7 OS and older you will need a driver to use this COM port.
  • Page 7 MT1 device. You can choose if you want to update the latest firmware version from internet or from local file, which can be useful for offline installation. As soon as the MT1 is found in the firmware update software, you can press “start update” to start the update process.

  • Page 8: Operation

    Manual Mobile Timing MT1 Operation On the main menu you can enter the next bib and confirm with ENTER. Menu With the ESC button, you will get to the selection menu. If you press again ESC, you will return to the main screen. Use the arrow buttons (2 for scroll up, 8 for scroll down) to choose the menu.

  • Page 9: Memo

    Exit the scroll mode with the ESC button. 3.1.4 General Menu for general information and settings. 3.1.4.1 Info General information about the MT1 device like serial number, sync setting, used memory, software version and current accuracy of the device (only available with GPS 3D-fix). - 9 -...
  • Page 10 Mobile Timing MT1 3.1.4.2 Clr mem The MT1 will automatically store all of the timing impulses. On power off procedure the times will be saved to the Flash memory. On restart of the device this times will be restored automat- ically.

  • Page 11: Gps

    Manual Mobile Timing MT1 Search operator: You can execute a manual search for an operator. After the search is finished, you have to choose the one of the listed operators by pressing the number which is shown on the left. Con- firm with the ENTER button.

  • Page 12: Software

    There will be no re-synchronization of the MT1. No time jump will occur in this case. The long time deviation will be within 0,000001 seconds. Note: Two or more MT1 devices must not be closer than 30 cm to each other. This can disturb GPS reception. Software alge-results.com platform...

  • Page 13: Evaluation Software

    Fill out the serial number of your device and click “CONTINUE” Then enter the PIN code, which will be displayed on the MT1 to proof that it is your device. With each new MT1 device you will get 2000 timing points (TP). This TP you will need for event creation (150TP) and data transmission.
  • Page 14 If you use the Time.NET software we suggest to use the network connection to the Time.NET connector which will be automatically established. An IDCam device will be simulated in this case. Note: Timing impulses of non-MT1 devices are not reflected to the online platform alge-results.com - 14 -...

  • Page 15: Technical Data

    Manual Mobile Timing MT1 Technical data Timing channel precision: 1/100.000s Amount of timing channels: two channels with banana connectors Operating temperature: -20 to +65°C Time-base: Self-calibrating TCXO quartz Synchronization: External, via internal GPS or UMTS Operating time: 12h at +25°C with one impulse per minute.
  • Page 16 Manual Mobile Timing MT1 Subject to changes Copyright by ALGE-TIMING GmbH Rotkreuzstr. 39 6890 Lustenau / Austria www.alge-timing.com - 16 -...
