8.1.5

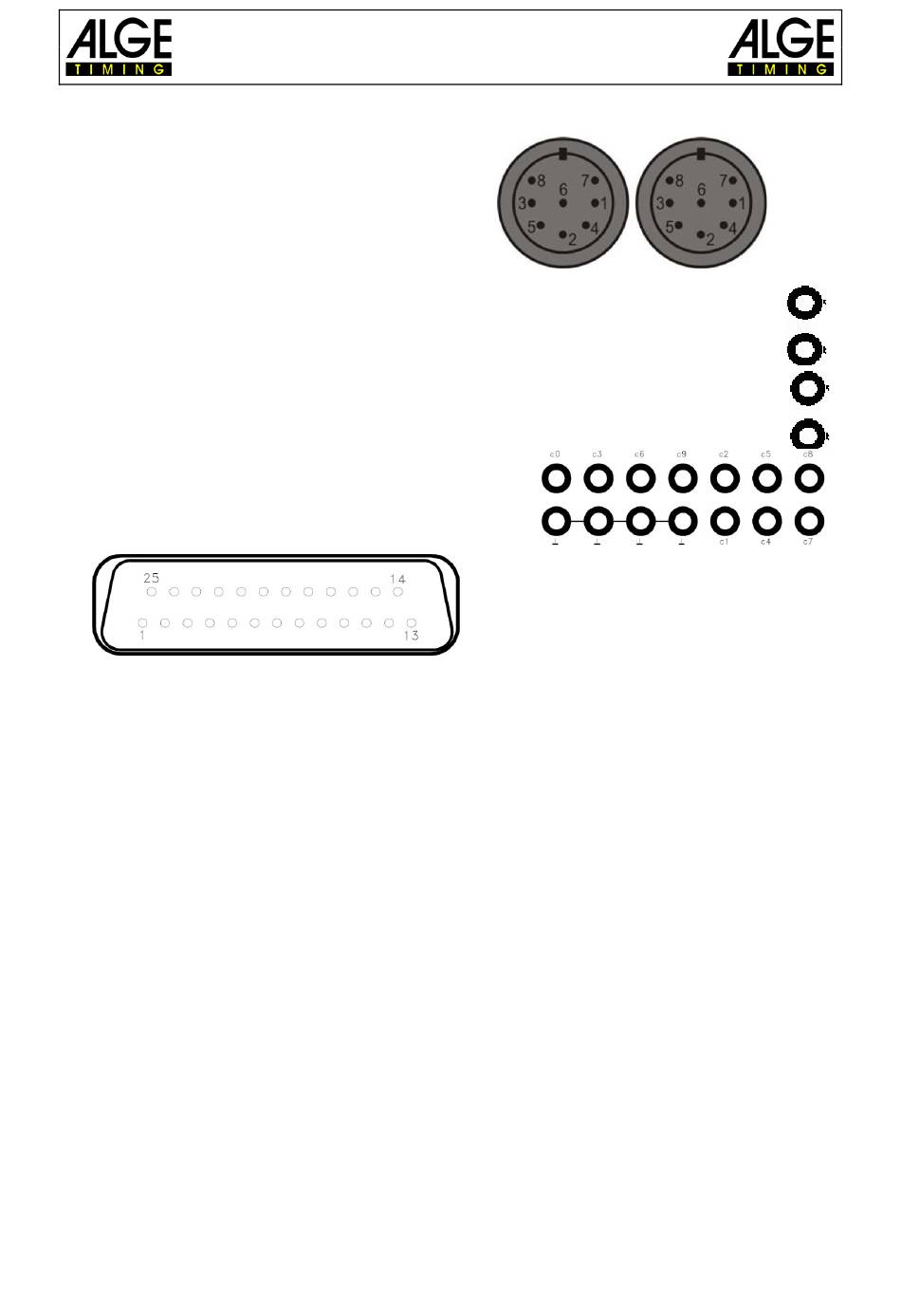

RS232 / RS485 (d)

1 RS232, data TXD (transmit)
2 common ground
3 RS232, data RXD (receive)
4 RS232, control line CTS
5 RS232, control line RTS
6 RS485, line a
7 output external supply
8 RS485, line b
8.1.6

Display Board (i)

TdC 8001 sold before 2008:
Display board interface with data output channel 1 or 2 (yellow or white jack) and ground (black
or blue jack). The channel can be set in the menu.
TdC 8001 sold from 2008:
Display board interface with data output channel 1 (yellow jack) and ground (black jack).
8.1.7

Banana Jacks Channel 0 to 9 (h)

All channels can be connected via banana jacks. Four ground
connections (black) are available for the nine channels.
8.1.8

Multichannel (a)

1 channel 9
2 channel 0 (start)
3 channel 2
4 channel 3
5 channel 7
6 output data as channel 2
from „display board" (e)
7 RS485 B
8 RS485 A
9 clock A
10 clock B
11 empty
12 joint ground
13 output +5 VDC stabilized
8.2

RS232 Interface (a, d)

output format
transfer rate:
transfer protocol
xNNNNxCCxxHH:MM:SS.zhtqxGR(CR)
xNNNNxCCMxHH:MM:SS.zhtqxGR(CR)
xNNNNxRTxxHH:MM:SS.zhtxxGR(CR)
xNNNNxTTxxHH:MM:SS.zhtxxGR(CR)
xNNNNxSQxxHH:MM:SS.zhtxxGR(CR)
xNNNNiCCxxHH:MM:SS.zhtxxGR(CR)
xNNNNiRTxxHH:MM:SS.zhtxxGR(CR)
xNNNNiCCxxHH:MM:SS.zhtqx##(CR)
xNNNNiRTxxHH:MM:SS.zhtqx##(CR)
xNNNNiDTRxHH:MM:SS.zhtxx##(CR)
Manual
TdC 8001
14 channel 1
15 channel 5
16 channel 8
17 channel 6
18 channel 4
19 empty
20 empty
21 empty
22 empty
23 output external supply
(5.3 – 14.3 VDC)
24 joint ground
25 external supply (6 – 15 VDC)
1 start bit, 8 data bit, no parity bit, 1 stop bit
9,600 Bd preferred setting (adjustable: 2400, 4800, 19200)
ASCII
times from c0 to c9
manually stopped time (with <START> or <STOP>)
run time
total time
sequential time (lap time)
dual timer, times from c0 to c9
dual timer, run time
parallel slalom, intermediate time or finish time
parallel slalom, run time
parallel slalom, run difference time
