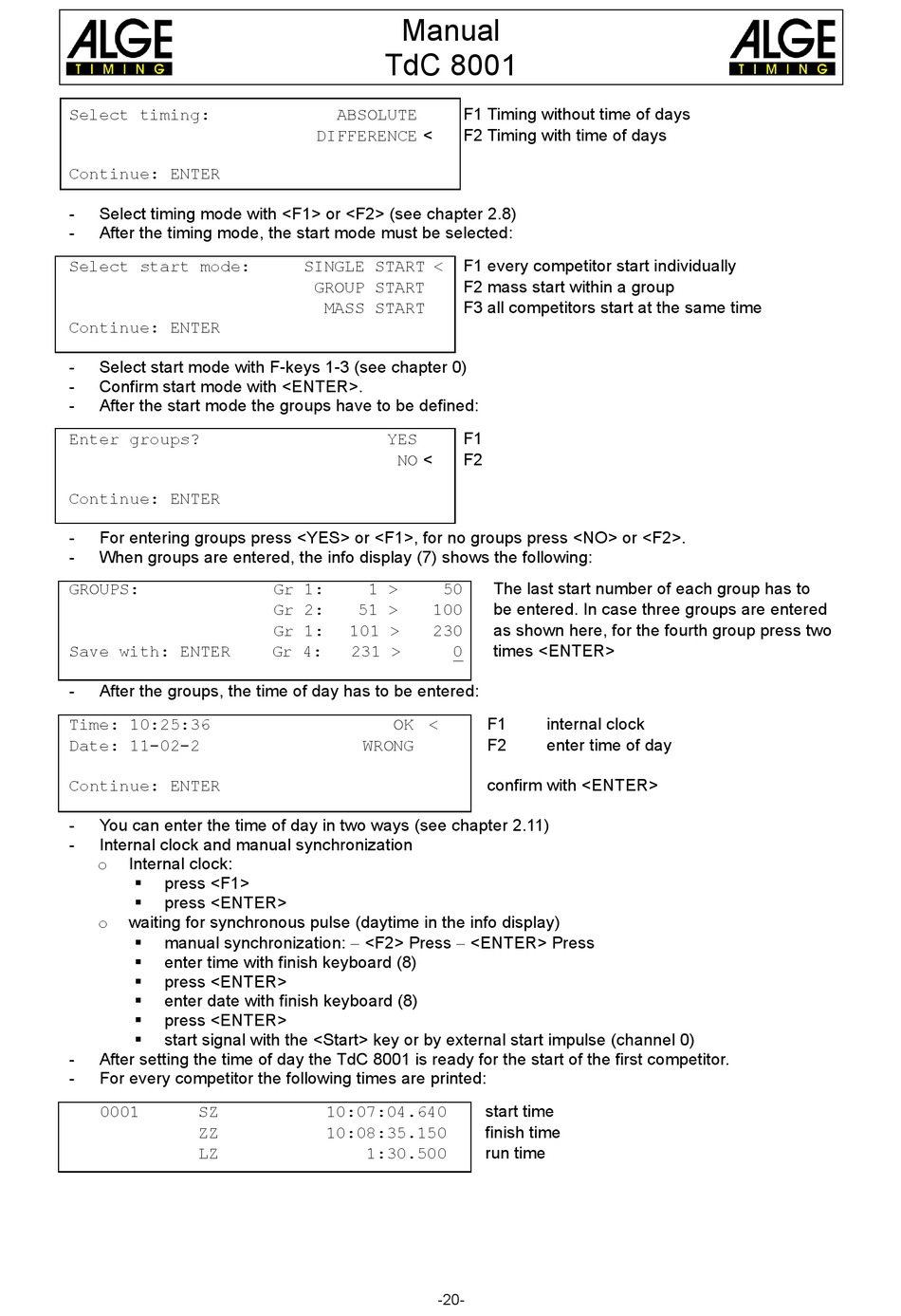

ALGE-Timing TDC8001 Manual page 20

Table of Contents

Advertisement

Select timing:
Continue: ENTER
-
Select timing mode with <F1> or <F2> (see chapter 2.8)
-
After the timing mode, the start mode must be selected:
Select start mode:
Continue: ENTER
-
Select start mode with F-keys 1-3 (see chapter 0)
-
Confirm start mode with <ENTER>.
-
After the start mode the groups have to be defined:
Enter groups?
Continue: ENTER
-
For entering groups press <YES> or <F1>, for no groups press <NO> or <F2>.
-
When groups are entered, the info display (7) shows the following:
GROUPS:
Save with: ENTER
-
After the groups, the time of day has to be entered:
Time: 10:25:36
Date: 11-02-2
Continue: ENTER
-
You can enter the time of day in two ways (see chapter 2.11)
-
Internal clock and manual synchronization
Internal clock:
o
press <F1>
press <ENTER>
o
waiting for synchronous pulse (daytime in the info display)
manual synchronization: − <F2> Press − <ENTER> Press
enter time with finish keyboard (8)
press <ENTER>
enter date with finish keyboard (8)
press <ENTER>
start signal with the <Start> key or by external start impulse (channel 0)
-
After setting the time of day the TdC 8001 is ready for the start of the first competitor.
-
For every competitor the following times are printed:
0001
SZ
ZZ
LZ
Manual
TdC 8001
ABSOLUTE
DIFFERENCE <
SINGLE START <
GROUP START
MASS START
YES
NO <
Gr 1:
1 >
Gr 2:
51 >
100
Gr 1:
101 >
230
Gr 4:
231 >
OK <
WRONG
10:07:04.640
10:08:35.150
1:30.500
-20-
F1 Timing without time of days
F2 Timing with time of days
F1 every competitor start individually
F2 mass start within a group
F3 all competitors start at the same time
F1
F2
The last start number of each group has to
50
be entered. In case three groups are entered
as shown here, for the fourth group press two
times <ENTER>
0
F1
internal clock
F2
enter time of day
confirm with <ENTER>
start time
finish time
run time
