ALGE-Timing TDC8001 Manual page 85

Printer: example of printout
0001 SZ 10:52:04.9900
C1 10:52:49.8958
LZ
0001 SZ 10:52:04.9900
C2 10:52:49.8958
LZ
0001 SZ 10:52:04.9900
C1 10:52:51.5165
LZ

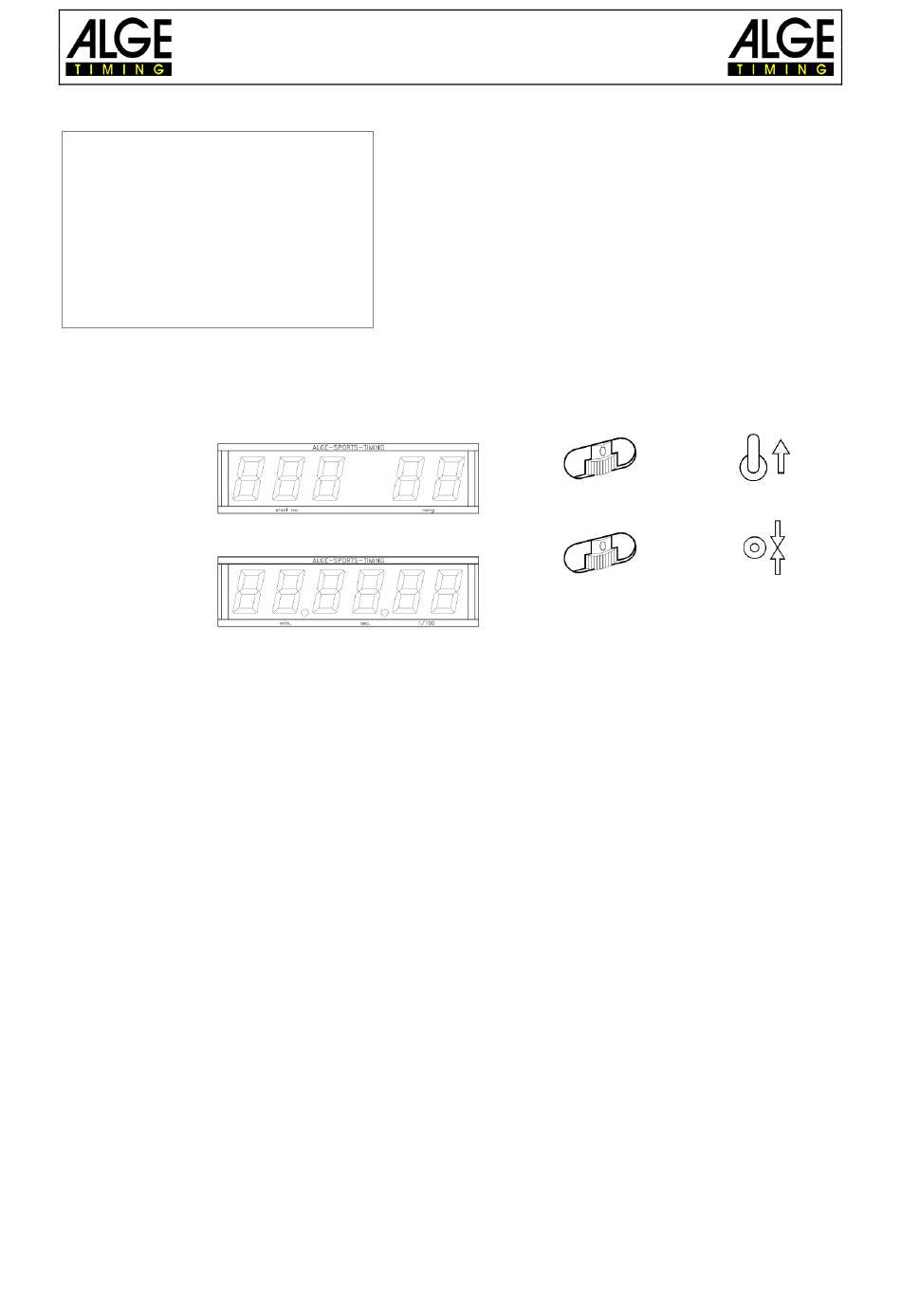

Display board (D-LINE and GAZ):
The run time (running time) and start number/rank can be displayed each on an ALGE display board. The
current number indicated on display (6) is always displayed (on display board number 3-digit, rank 2-
digit). In main menu (see menu 20) channel 2 can be activated. When working with channel 2, only the
stopped time is shown on display board (no running time).
start number
rank
run time and
running time
RS232c Interface: see chapter 8.2
Manual
TdC 8001
start time
Finish time
0:44.90 Run time channel 1 (erste Zeit von Startnr. 1 auf channel 1)
Start time
Finish time
0:45.47 Run time channel 2
Start time
Finish time
0:46.52 Run time channel 1 (zweite Zeit v. Startnr. 1 auf channel 1)
-85-
thumb-wheel switch
on 0
thumb-wheel switch
on 0
toggle switch
up
toggle switch
middle
