ALGE-Timing TDC8001 Manual page 82

Printer: example of printout
0001 ST 10:30:17.0210
FT 10:30:45.8578
RT
0002 ST 10:31:01.5791
FT 10:31:32.9280
RT

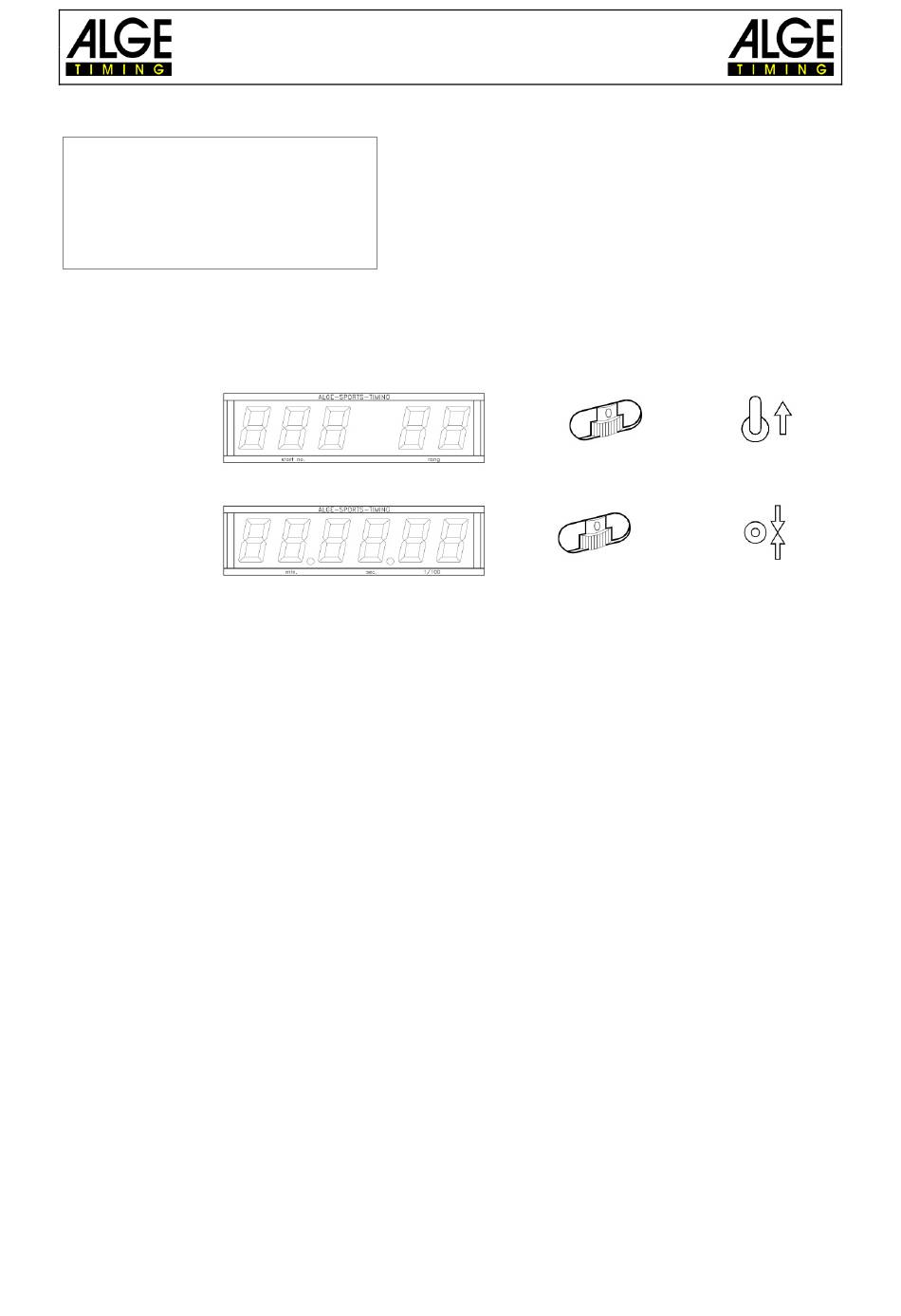

Display board (D-LINE and GAZ):
Countdown time and start number/rank can be shown each on an ALGE display board. The current num-
ber shown in display (6) is always displayed (on display board number 3-digit, rank 2-digit) in main menu
(see menu 20) channel 2 can be activated. When working with channel 2, on the stopped time is shown
on display board (no running time).
start number
rank
countdown time
RS232c interface:
Output format:
Transfer rate:
Transfer protocol:
xNNNNxC0xxHH:MM:SS.zhtqxGR(CR)
xNNNNxC1xxHH:MM:SS.zhtqxGR(CR)
xNNNNxRTx+HH:MM:SS.zhtxxGR(CR)
xNNNNxRTx-HH:MM:SS.zhtxxGR(CR)
nNNNN(CR)
x ............................ blank
NNNN ................... start number (4-digit)
C0 ......................... start channel
C1 ......................... finish channel
RT ......................... countdown time
+ ............................ countdown stopped before reaching zero
- ............................. countdown stopped after reaching zero
GR ........................ group (from 01 to 99; 00 for no group)
n ............................ new start number shown in finish display
(CR) ...................... carriage return
Following characters can be at 1
? ............................ time without valid start number
c ............................ cleared times (with <CLEAR>)
Manual
TdC 8001
start time
finish time
allowed countdown time
+1.17
start time
finish time
-1.33 countdown time exceeded
1 start bit, 8 data bit, no parity bit, 1 stop bit
9.600 baud preferred setting (2400, 4800, 9600, 19200)
ASCII
start time
finish time
stopped countdown time (allowed)
stopped countdown time (less than allowed time)
position:
st
-82-
thumb-wheel switch
on 0
thumb-wheel switch
on 0
toggle switch
up
toggle switch
middle
