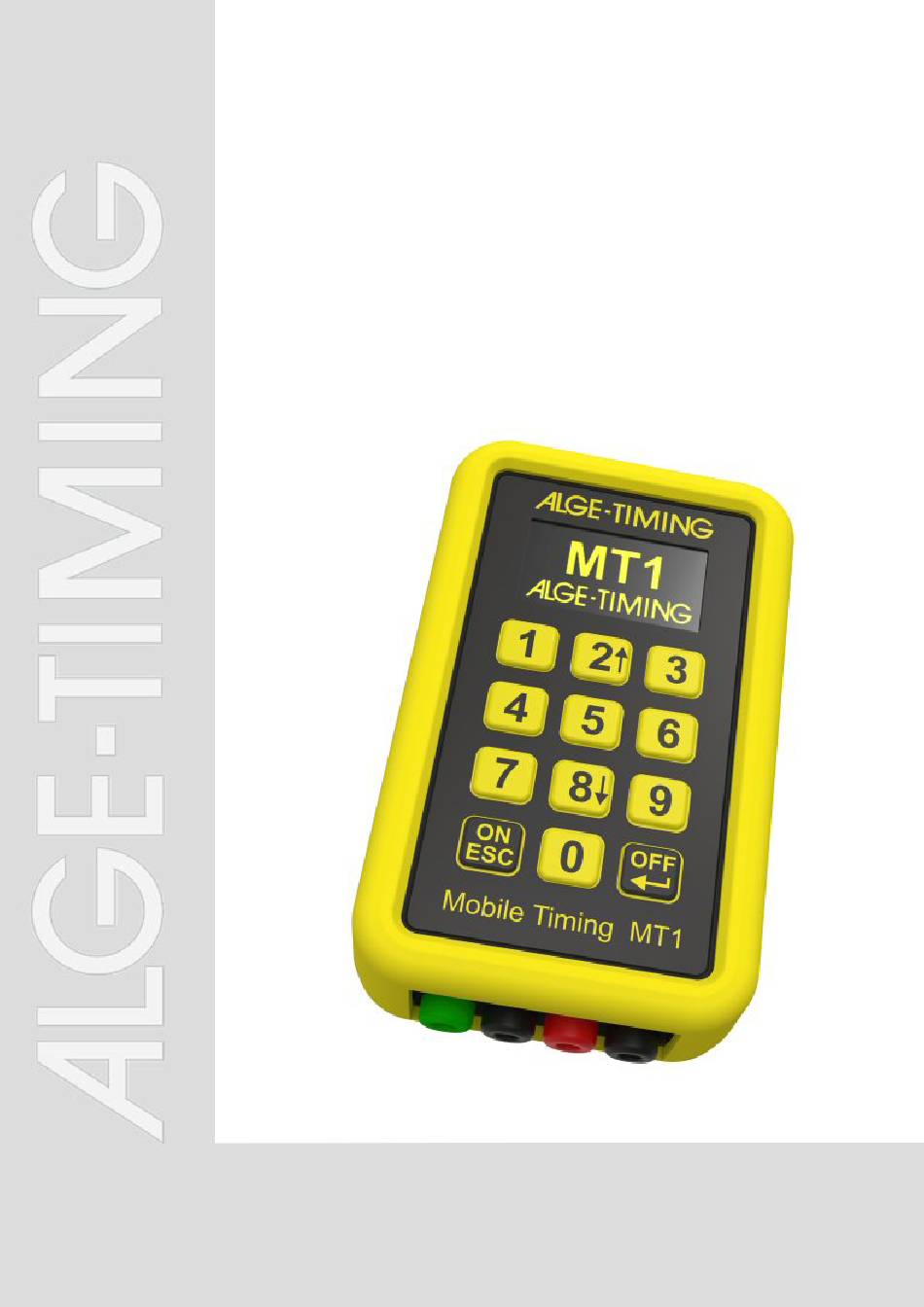

  • Page 1 Version-E20-07-07 Mobile Timing Manual...
  • Page 2 Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cover all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.
  • Page 3 Manual Mobile Timing MT1 Declaration of Conformity We hereby declare that the following product complies with the below stated standards. All components used by us are CE certified by their producer and are not modified by ALGE- TIMING GmbH. ALGE-TIMING GmbH...

  • Page 4: Table Of Contents

    Manual Mobile Timing MT1 Table of Contents Introduction ........................5 Device description ....................... 5 Display ............................5 2.1.1 Status Bar ............................. 5 2.1.2 Bib ................................ 6 2.1.3 Time ..............................6 Keypad ............................6 Connections ..........................6 2.3.1 Timing channels ............................ 6 2.3.2...

  • Page 5: Introduction

    Manual Mobile Timing MT1 Introduction The MT1 is a high-precision timing device. Using the built-in GPS, it is automatically synchro- nized to the time of day. It has two timing channels with 1/100,000 seconds precision. The timing pulses are automatically sent to the internet, so the results can be seen live there. As a result, impulse cables are no longer necessary, which is particularly advantageous for long distances.

  • Page 6: Bib

    Manual Mobile Timing MT1 The third icon is the icon. It is strike through if there is no USB data connection. Note: A power supply or power bank has no data connection. In this case, the icon stays strike through.
  • Page 7 Manual Mobile Timing MT1 Valid data connection to the PC and charging: The flash symbol shows an existing external power supply. When the battery is charging the battery symbol shows an animation. The MT1 does not have to be switched on for charging.

  • Page 8: Operation

    Manual Mobile Timing MT1 Operation In the main menu you can enter the next bib and confirm with ENTER. Menu With the ESC button, you open the selection menu. Pressing ESC once again, you return to the main screen. Use the arrow buttons (‘2’ for scroll up, ‘8’ for scroll down) to choose the menu.

  • Page 9: Scroll

    Manual Mobile Timing MT1 3.1.3 Memo With the “memo” menu you can switch to memo-mode. This mode is used if it is not clear which competitor is the next, e.g. at the finish area when you cannot see the competitor to come closer.
  • Page 10 Manual Mobile Timing MT1 3.1.5.2 Clr mem The MT1 will automatically store all of the timing impulses. On power off procedure the times will be saved to the Flash memory. On restart of the device this times will be restored automat- ically.

  • Page 11: Gps

    Manual Mobile Timing MT1 Search operator: You can execute a manual search for an operator. After the search is finished, you have to choose the one of the listed operators by pressing the number which is shown on the left. Con- firm with the ENTER button.

  • Page 12: Auto Trim Function

    Manual Mobile Timing MT1 Good GPS reception with 3D-fix: 3D-Fix is displayed with four dots around the circle. The blinking dot in the middle shows the correct reception of the highly precise second impulse. When the device receives a GPS signal with 3D-fix, it will trim the internal quartz to highest possible precision.

  • Page 13: Add Device

    Manual Mobile Timing MT1 Add device To manage your device, you have to add the device to your account. Switch on your MT1 de- vice and click to “REGISTER DEVICE” in your web browser. Fill out the serial number of your device and click “CONTINUE”...

  • Page 14: Evaluation Software

    Manual Mobile Timing MT1 5.3.1 Evaluation software If your evaluation software can work with serial data and supports the communication protocol, (Timy series or TDC 800x series, daytime format) it can be used to read the timestamps direct- ly via USB interface.

  • Page 15: Technical Data

    Manual Mobile Timing MT1 Technical data Timing channel precision: 1/100.000s Amount of timing channels: two channels with banana connectors Operating temperature: -20 to +65°C Time-base: Self-calibrating TCXO quartz Synchronization: External, via internal GPS or GSM Operating time: 12h at +25°C with one impulse per minute.
  • Page 16 Manual Mobile Timing MT1 Subject to changes Copyright by ALGE-TIMING GmbH Rotkreuzstr. 39 6890 Lustenau / Austria www.alge-timing.com - 16 -...
