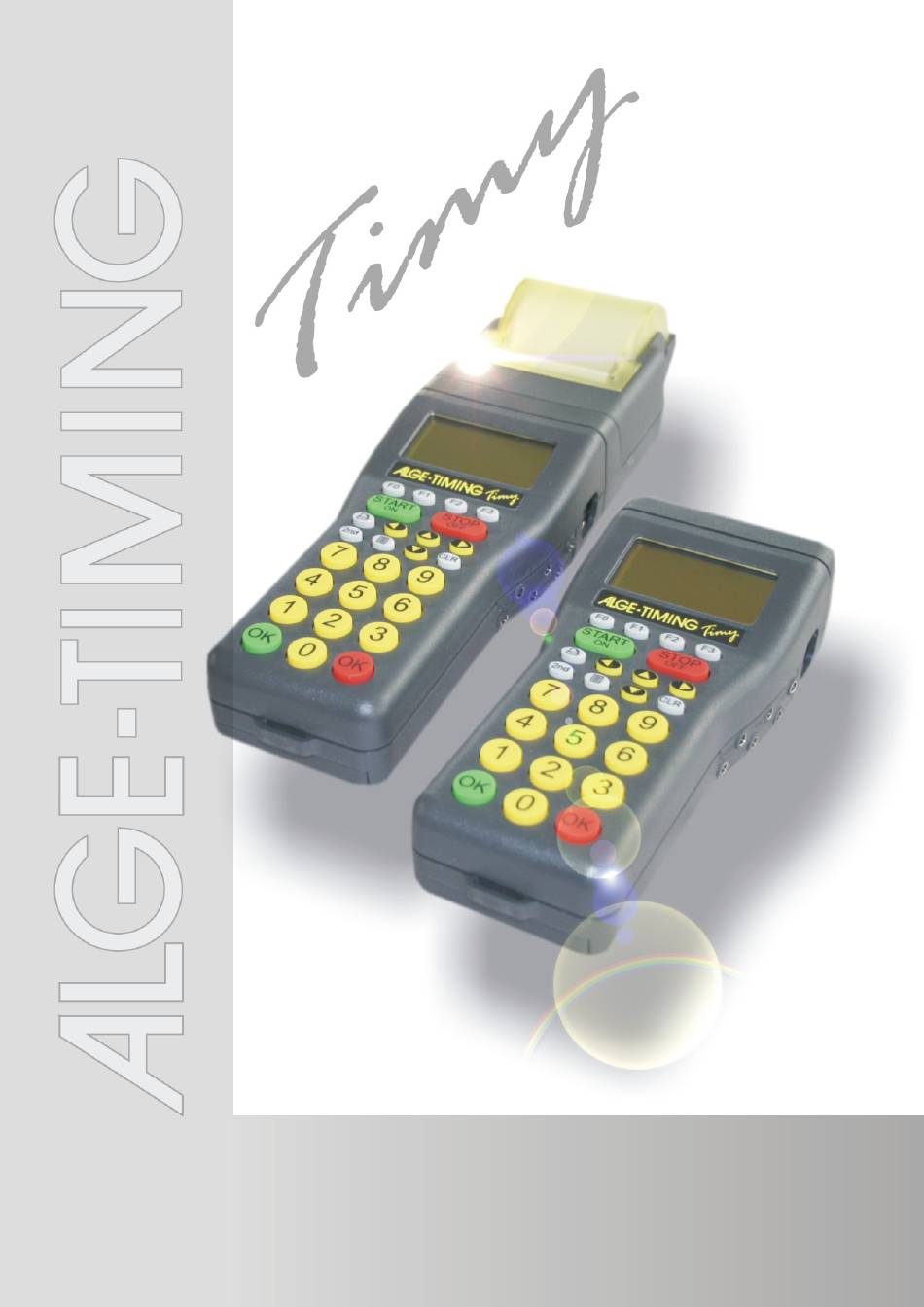

  • Page 1 Version-E230717 TrackTimer...
  • Page 2 Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cover all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.

  • Page 3: Table Of Contents

    Timy TrackTimer Table of contents Keyboard and getting started ....................4 Program TrackTimer ......................... 4 Anwendungsschema ......................... 5 Swimming or Athletics wired ......................5 Swimming or Athletics with WTN-PB ..................6 Configuration for WTN-PB ......................7 Operation of Program Track Timer: ..................8 Display Mode..........................

  • Page 4: Keyboard And Getting Started

    Timy TrackTimer Keyboard and getting started See Timy manual „GENERAL“ 2 Program TrackTimer The program TrackTimer is made for all sports with one mass start and finish arrival on different tracks (e.g. athletic, swimming). It is possible to start a race and use for each lane a different finish trigger.

  • Page 5: Anwendungsschema

    Timy TrackTimer Anwendungsschema Swimming or Athletics wired Page 5...

  • Page 6: Swimming Or Athletics With Wtn-Pb

    Timy TrackTimer Swimming or Athletics with WTN-PB Page 6...

  • Page 7: Configuration For Wtn-Pb

    Up to 9 timing channels can be configured for the WTN in this mode. Pulses stopped in so- cket mode are marked with a "t" (e.g. t0124 ST 10:12:34.0384)Starten Sie die WTN-Geräte, die externe Zeitmessimpulse erzeugen; stellen Sie das gleiche Team wie im Timy3 ein. •...

  • Page 8: Operation Of Program Track Timer

    Timy TrackTimer Operation of Program Track Timer: • Switch the Timy on as described in Timy manual GENERAL • Select <TrackTimer> • Clear the memory with key and press key (red or green). • Input the time of day and date for synchronization and confirm it with Make a synchronization start (e.g.

  • Page 9: Rs 232 Interface

    Timy TrackTimer RS 232 Interface TRACK-MODUS You can select in the Menu "MAIN-MENU"->"INTERFACE"->"RS-232"->"TRACK-MODE" be- tween two modes.  NORM  IDENT 7.1.1 NORM On this setting the memory printing is different to the ONLINE printing. It shows on the memory print how many times the same channel was released.

  • Page 10: Rs 232 Commands

    Timy TrackTimer Channel 1 max. Precision 1/10.000 Channel 1M max. Precision 1/100 – manual = keyboard Channel 2 max. Precision 1/10.000 Channel 3 max. Precision 1/10.000 Channel 4 max. Precision 1/10.000 Channel 5 max. Precision 1/100 Channel 6 max. Precision 1/100 Channel 7 max.
